aldes H/E280 - Airflow Adjustment Connections; Supply Airstream Connections; Exhaust Airstream Connections

Residential HRV/ERV
34

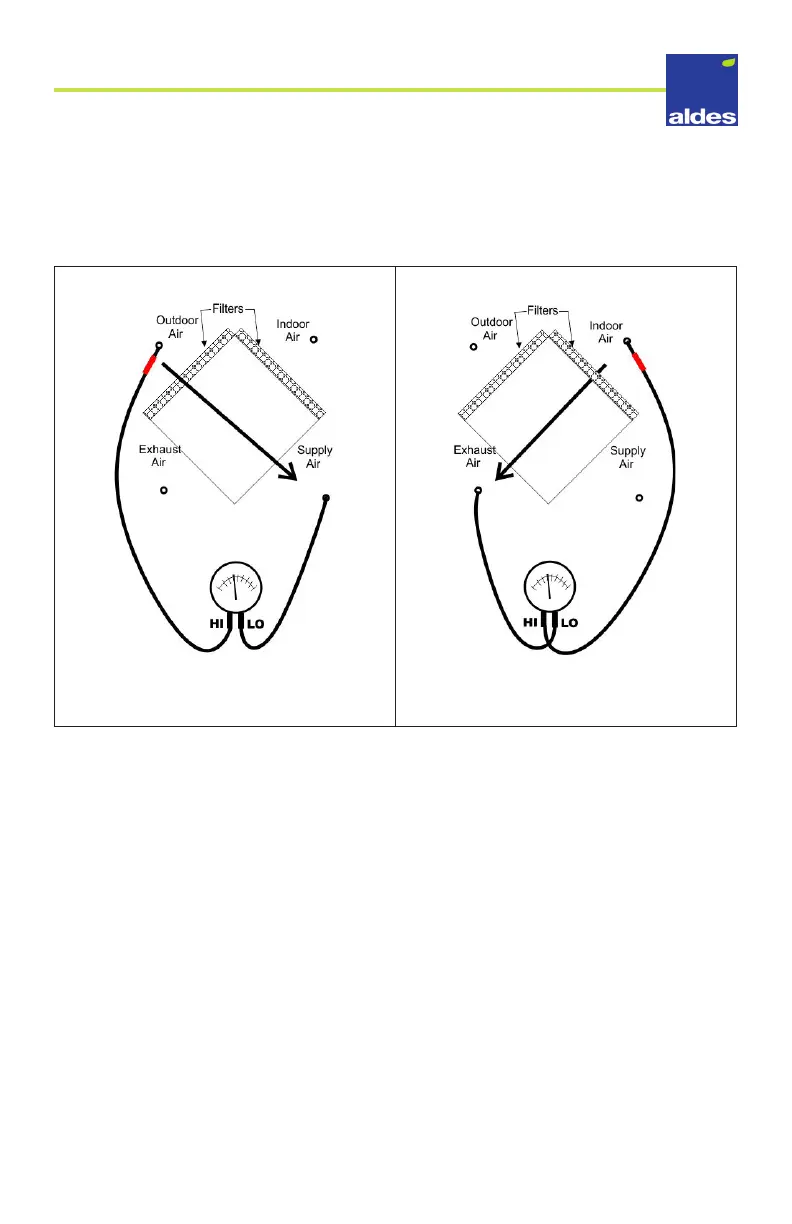

1. To Adjust SUPPLY (FAN IN) air stream: Connect the tubes like the diagram below shows,
then turn the FAN IN potentiometer to the desired level.
2. Adjust the EXHAUST (FAN OUT) air stream: Connect the tubes like the diagram below
shows, then turn the FAN OUT potentiometer to the desired level.
Supply Airstream Connections Exhaust Airstream Connections
3. Repeat the airow measurement and adjustment until the desired supply and exhaust
airows are obtained.
4. Remove all tubing and replace the plugs in the door ports.
