210cc 4 stroke Petrol High Pressure Washer
AFTER SALES SUPPORT
(toll free) MODEL No.: SHW196 • 06/2019 9885
e-mail: info.aldi@positecgroup.com
AUS
13
1300 889 028
AUS
1. Upper handle frame
2. Nozzle x 5
3. Nozzle holder panel
4. Hose reel
5. Hose reel handle
6. 10m pressure hose
7. Air filter
8. Muffler
9. Wheel/s
10. Battery compartment
11. Black negative electrode
12. Red positive electrode
13. Detergent tank
14. Detergent tank cap
15. Gun lance storing ring
16. Gun lance
17. Fuel tank
18. Fuel tank cap
19. Spray gun
20. Gun storing rest
21. Oil gauge dipstick
22. Hose reel inlet
23. Water outlet of pump
24. Water inlet of pump (See fig. M1)
25. Breather Plug + cap (See fig. J2)
26. Spark Plug
27. Spark Plug cover
28. Choke lever
29. Fuel filter / valve
30. Throttle lever
31. Recoil Starter
32. Electric start keys x 2
33. Small wrench x 2
34. Large combination wrench
35. Wheel locking clip x 2
36. Long screw with nyloc nuts for nozzle
holder panel x 4
37. Short screw with nuts for hose reel x 4
38. Wheel axle + washer x 2
39. Socket wrench
40. Combination screwdriver (Philips / slot
type)
41. Trigger switch for spray gun
42. Water inlet hose
43. Water inlet filter
44. Spray gun safety lock
45. Screw for handle x 2
46. Oil funnel
47. Pump (See fig. J2)
48. Oil window of the pump (See fig. J3)
49. Lead-acid battery (See fig. A3)
50. Transit plug (on pump) (See fig. J1)

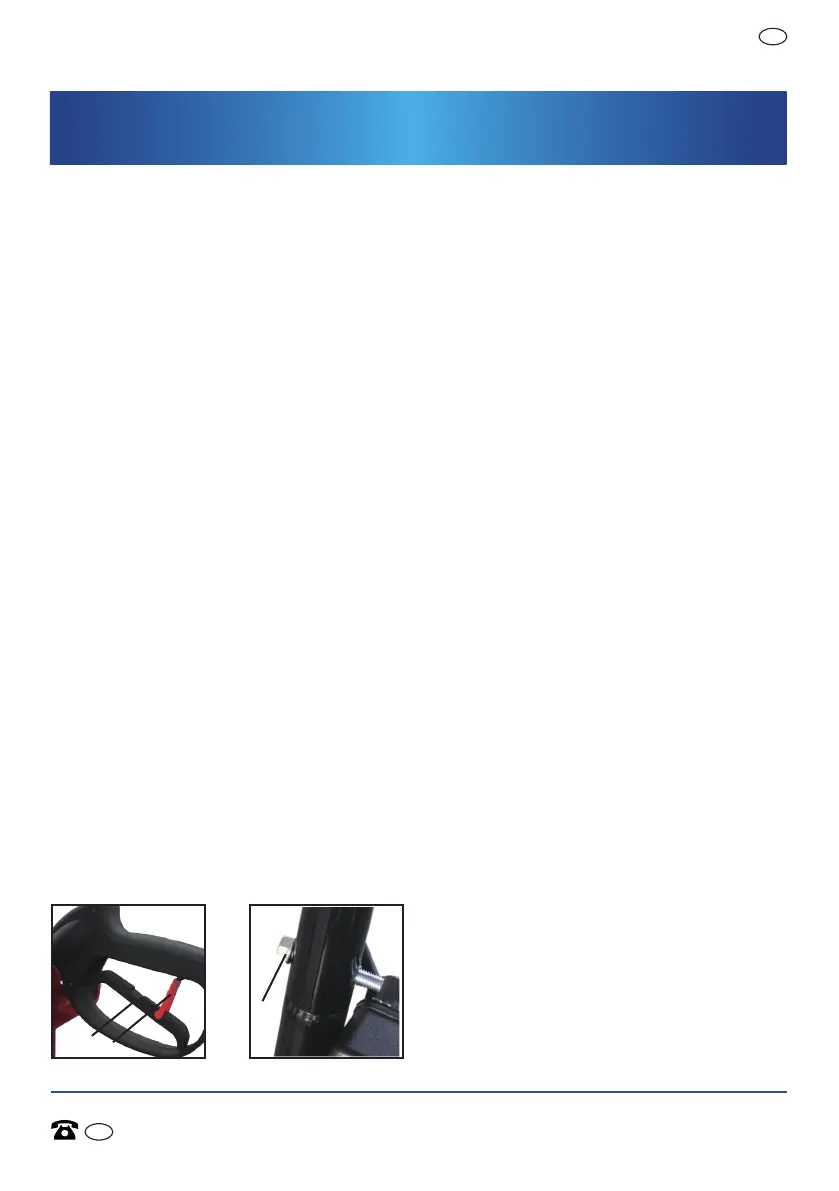

Component List
41
44
45
