210cc 4 stroke Petrol High Pressure Washer
AFTER SALES SUPPORT
(toll free)MODEL No.: SHW196 • 06/2019 9885
e-mail: info.aldi@positecgroup.com
AUS
20
1300 889 028
AUS

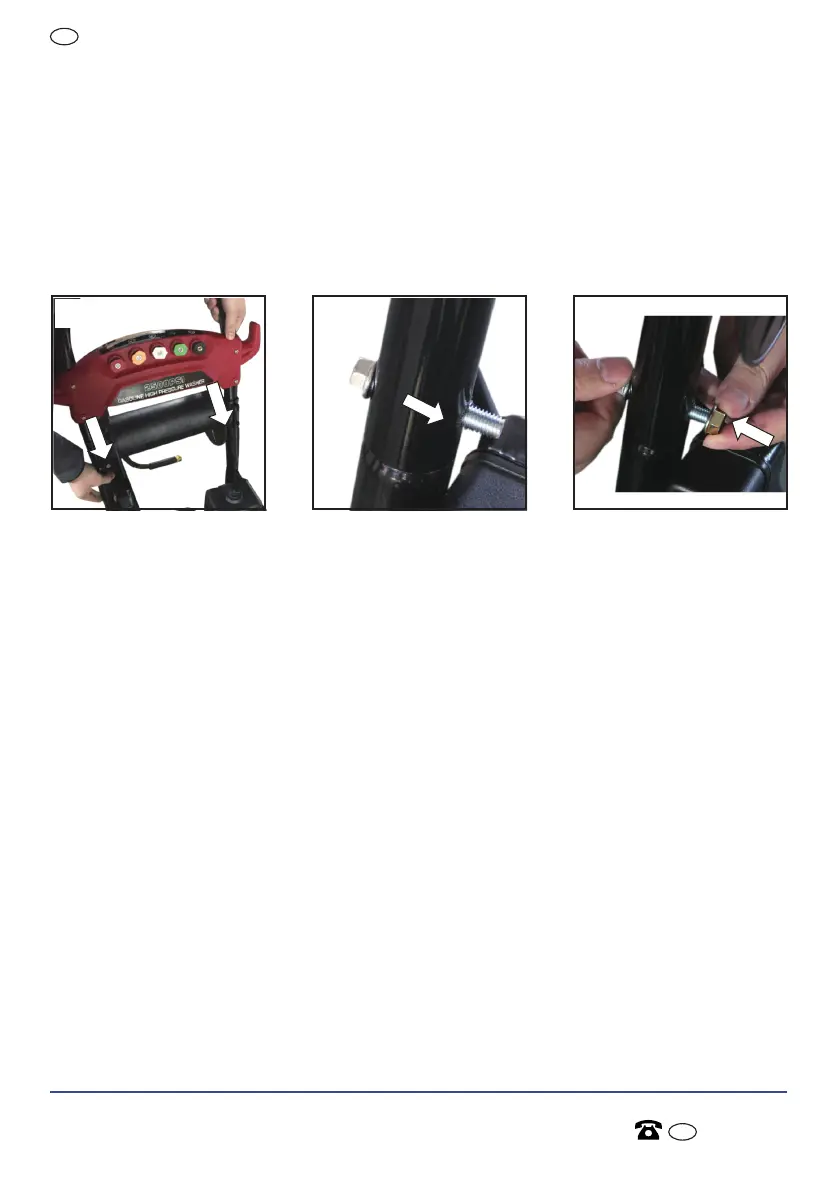

Attaching the upper handle frame (1) to the machine
(see fig. E1,E2, E3)
Insert the upper handle frame (1) directly into the tubes at the back of
the machine.
Fully secure the 2 screws for handle (45) by using the small wrench (33)
to hold the screws in position while using the 8mm wrench to secure
the nuts. The upper handle (1) is now locked in place.
Attaching the 10m pressure hose (6) to the hose reel (4)
Connecting the 10m pressure hose (6) to the hose reel (4)
(see fig. F1-F3):
NOTE: When connecting the high pressure hose fittings, ensure the
“O” ring portion FULLY enters the mating fitting before the retaining
collar is threaded together. If the “O” ring is wet with water it will
assist when trying to insert the “O” ring portion.
1) Before attaching, remove the plastic wrapping from the 10 metre
hose and put the hose (6) through the bottom rear of the engine to
the front.
2) Find the 10m pressure hose (6) end as shown in fig F2, pull the inner
hose inlet (d) out.
3) Insert the inner hose inlet (d) into the hose reel outlet (c), turn the
collar of the hose inlet (d) clockwise to tighten.
E1 E2 E3
