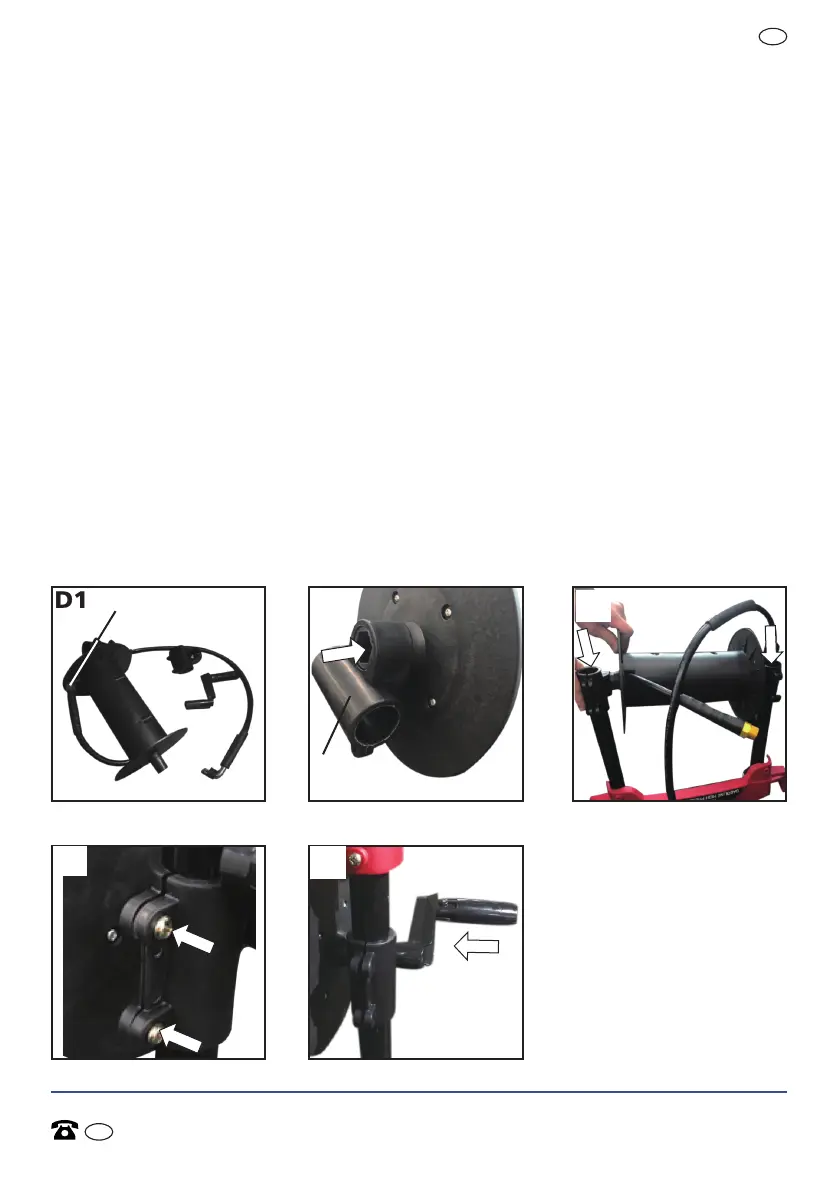

Installing the hose reel (4) to the upper handle frame (1)
(see fig. D1-D5)
1) Take out the hose reel (4).
2) First insert the small cylinder (b) into the hose reel (4).
3) Attach the hose reel (4) to the upper handle frame (1) by inserting it
from the end of upper handle frame (1).
NOTE: PAY ATTENTION TO THE ORIENTATION OF THE REEL. THE
HOSE REEL OUTLET (A) WHICH WILL CONNECT WITH HOSE (6)
SHOULD BE PULLED OUT FROM THE BACK OF THE MACHINE.
4) Tighten the short screw with nuts for hose reel (37) located in both
sides using the combination screwdriver (40) supplied to lock the
hose reel (4) in place.
NOTE: TIGHTEN BOTH SIDES OF THE SCREWS WITH THE SAME
PRESSURE IN INTERVALS. THIS WILL MAKE THE ASSEMBLY
EASIER.
5) Insert the hose reel handle (5) onto the hose reel (4) and lock it.
NOTE: WHEN THE HANDLE IS NOT IN USE, PULL THE HANDLE END
OUT AND FOLD DOWN.
D5
D1
D4
D2
b
D3
a
