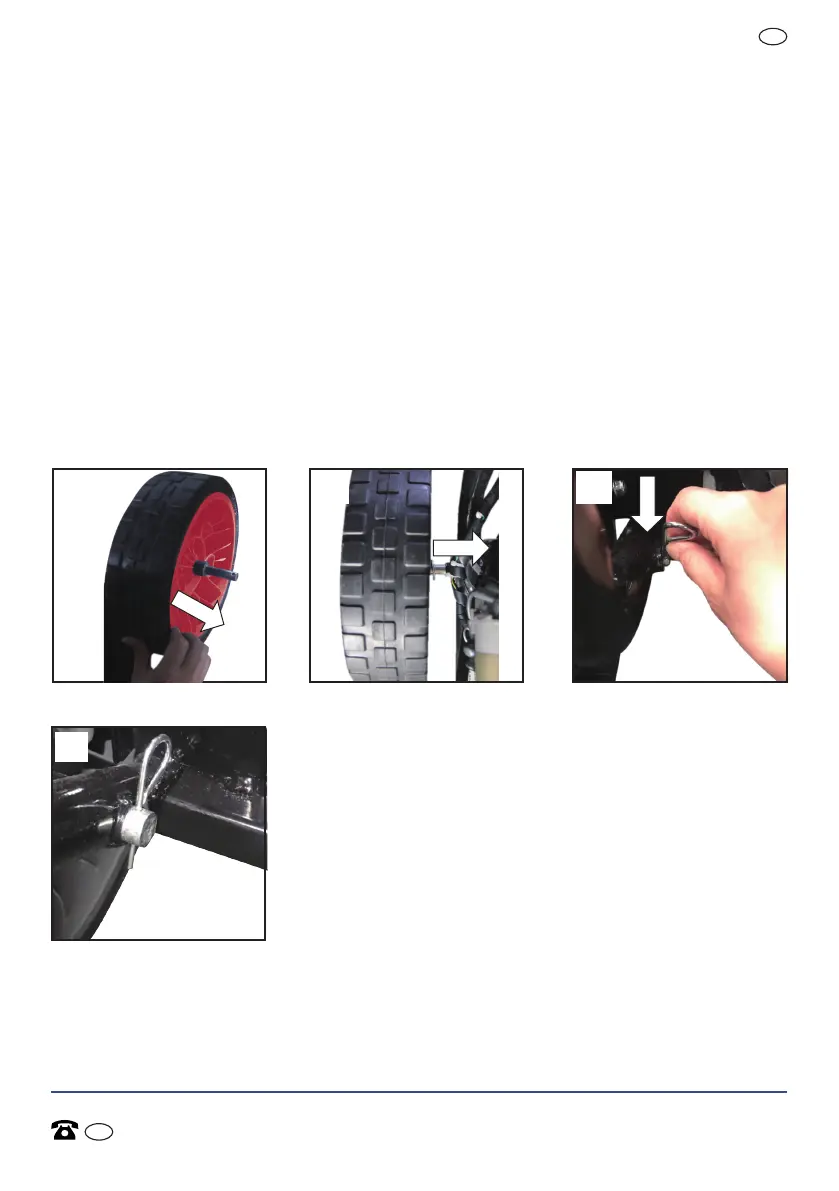

Installing the wheels (9) to the machine (see fig. B1-B3)
NOTE: The easiest way to assemble the wheels if doing with 1
person is to put a wooden or other type of mount underneath
the bottom frame to raise the machine. This then allows one
wheel to be mounted at a time.
1) Insert the wheel axle (38) into the center of the wheel (9), then
insert the wheel axle washer (38) into the other end of the axle (38),
on the opposite side of the wheel (9).
2) Insert the wheel (9) with axle and washer (38) into the main frame
of the machine. Make sure the axle (38) is inserted to the end fully.
3) Insert the wheel locking clip (35) into the hole on the exposed axle
(38) on the inner side of the frame, to lock the wheel (9).
4) Repeat step 1 to 3, to install the other wheel (9).
B4
B1
B2
B3
