12

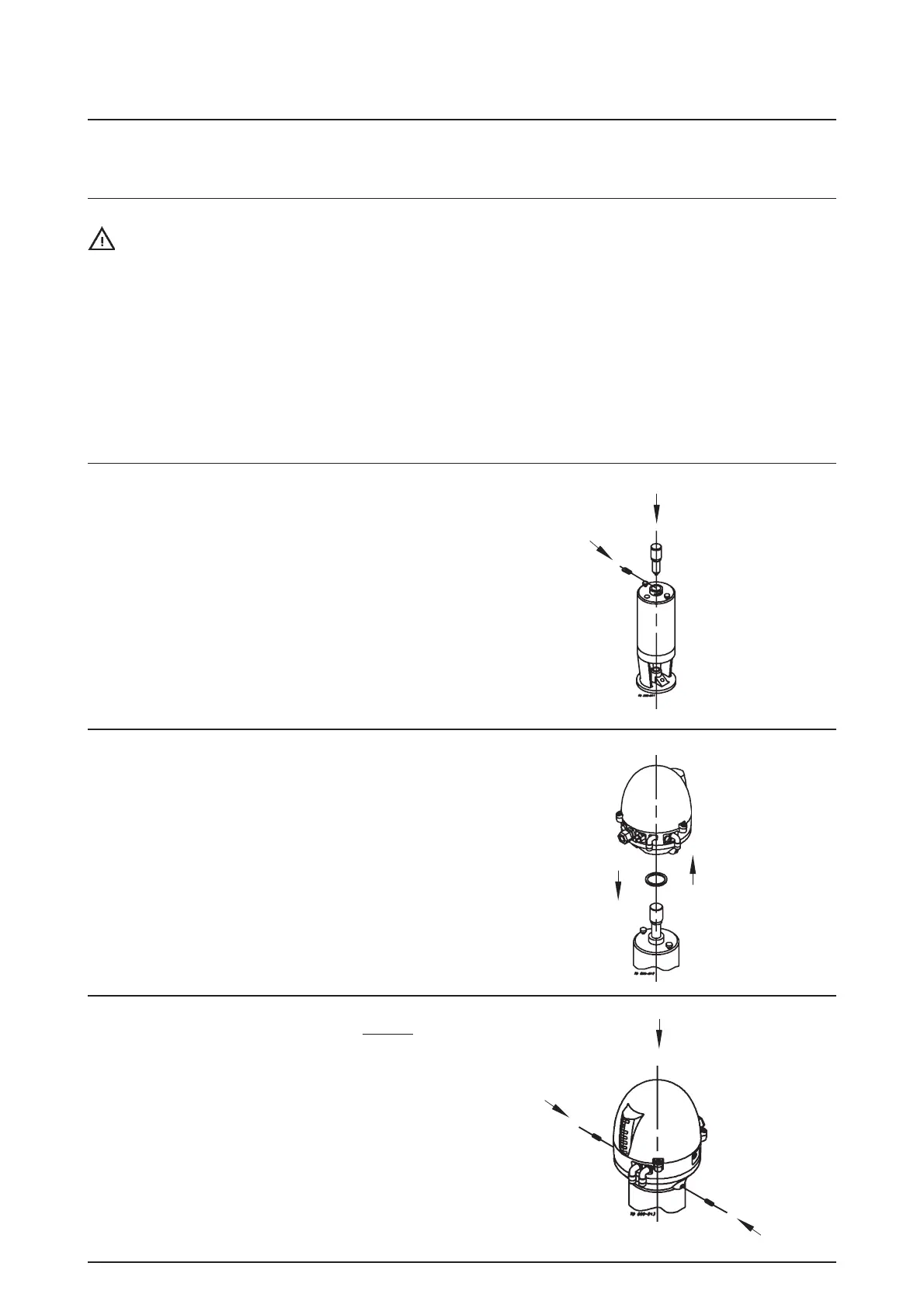

4. Installation4.1 Installation on air actuators
Step 1
- Always
read the technical specifications thoroughly (see chapter 3).
- Always have the ThinkTop
®
electrically connected by authorized personnel.
- Always install the ThinkTop
®
before valve or relay is in a safe position.
SRC/ARC only
Step 2
1. Fit the air fittings on actuator if not mounted.
2. Fit the activator stem (magnet) and tighten carefully
with a spanner.
NOTE!
The ThinkTop
®
for the SMP-EC valve has a longer activator
stem going through the shell.
Remember O-ring.
Step 3
1. Place the ThinkTop
®
on top of the actuator.
2. Make sure X-ring is mounted.
Step 4
1. Ensure that the unit is correctly mounted by
pressing down
on top of the ThinkTop
®
.
2. Tighten the two Allen screws carefully.
3. Turn the actuator to have LEDs in a front view.
NOTE!
After a relevant period of time after installation (e.g. two
weeks) it is recommended to check that all connections
are properly tightened.
