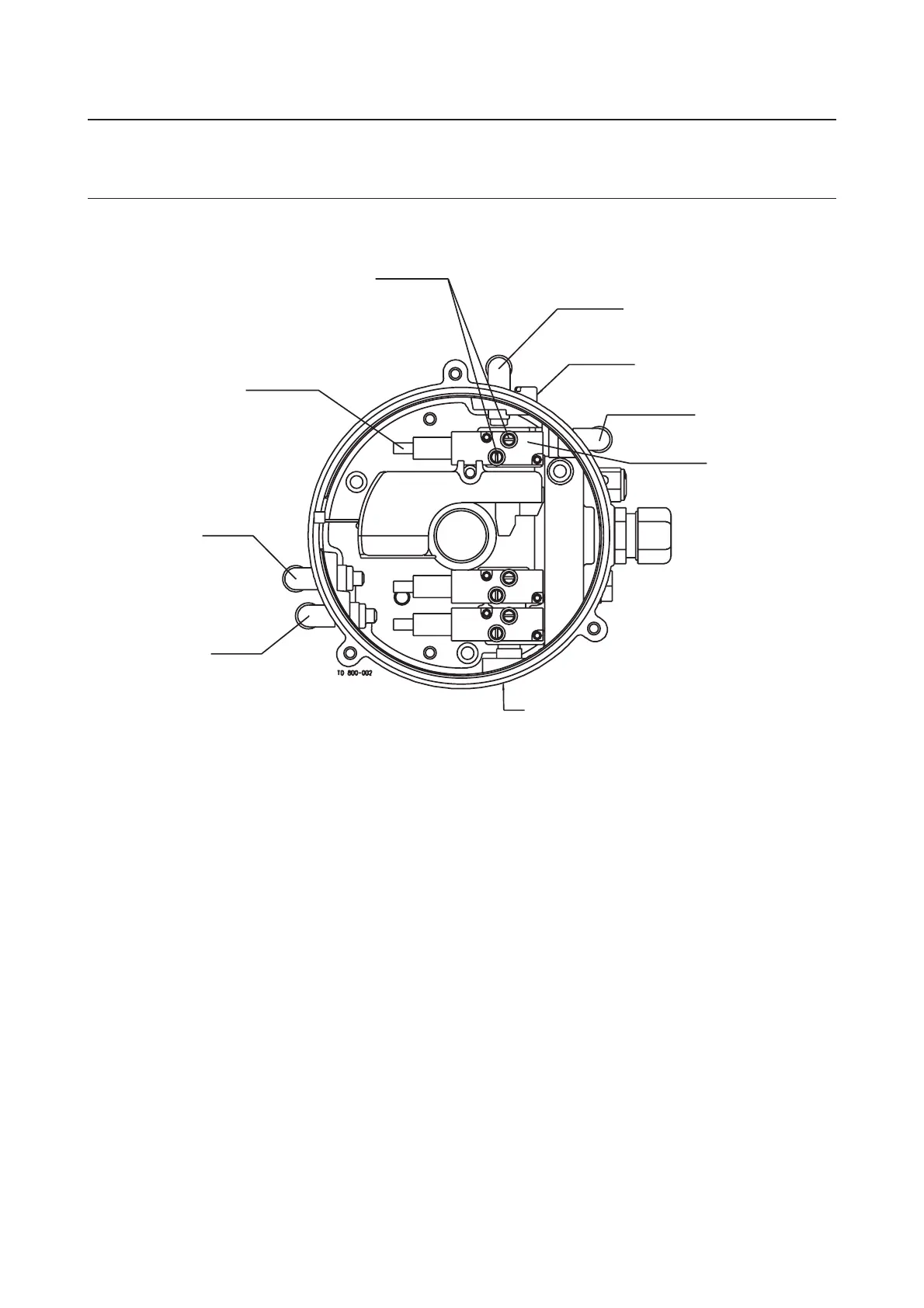

4. Installation
Air restriction (throttle function)
air inlet/outlet
Air out 1A
Air exhaust
Air out 1B (5/2 port
solenoid valve only)
Air in
Air out 3
Air out 2
Manual hold override
Solenoid valve
4.3 Air connections
1
2
3
14
16
