Alfa Laval ThinkTop Digital 8 User Manual

32
Spare Parts
Denomination 1/4” Air connec.
Sensor unit Digital 8-30 VDC PNP/NPN.... 9612-5627-01
Solenoid valve 3/2, 24 VDC...................... 9611-99-3324
Solenoid valve 5/2, 24 VDC...................... 9611-99-3327
Solenoid valve 3/2, 24 VAC ...................... 9611-99-3325
Solenoid valve 3/2, 110 VAC .................... 9611-99-3326
Solenoid valve 5/2, 24 VAC ...................... 9611-99-3328
Solenoid valve 5/2, 110 VAC .................... 9611-99-3329
Air fitting incl. O-ring, 1/4” ......................... 9611-99-3434

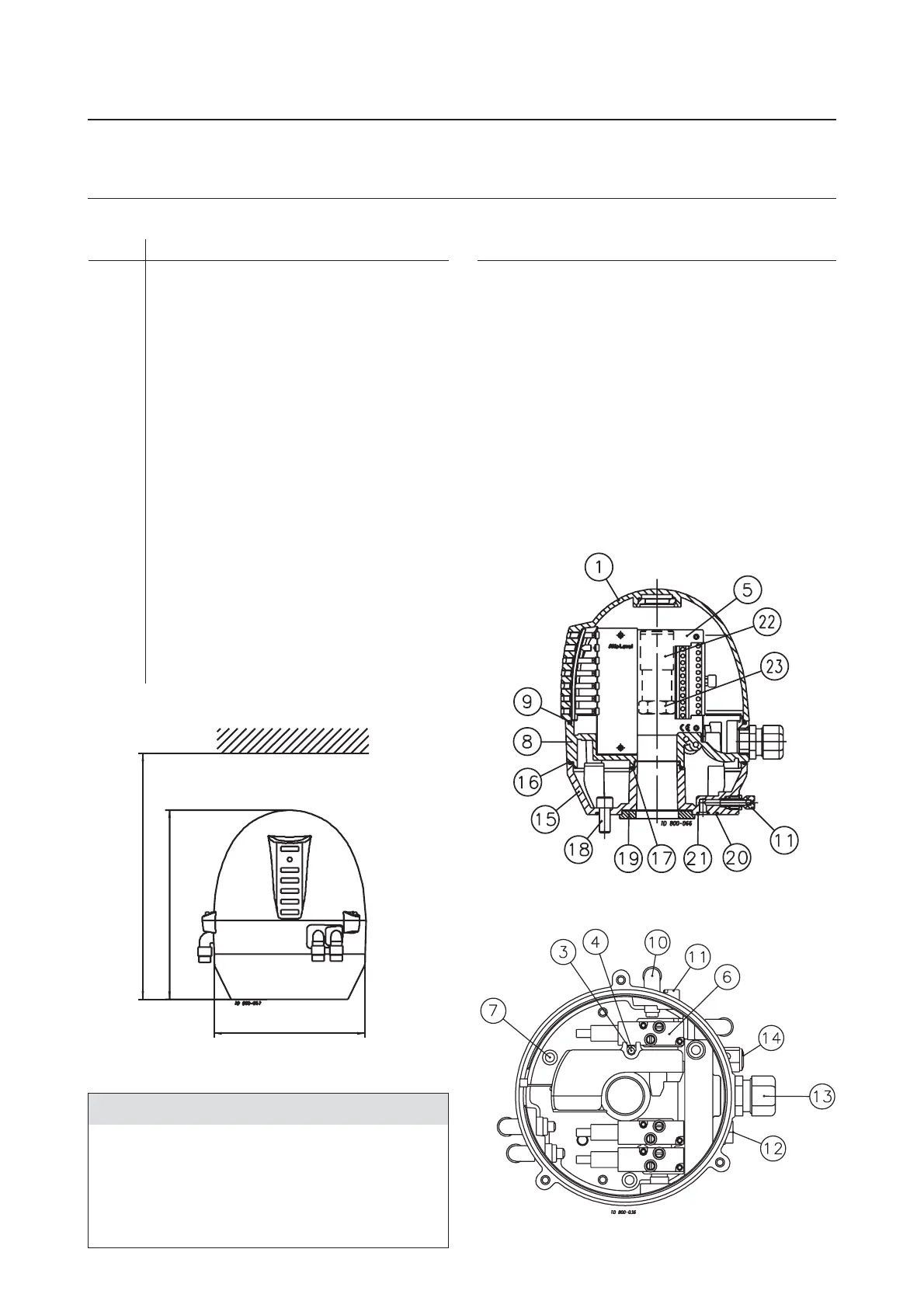

The drawing and the parts list include all items.
Parts List
Pos. Denomination
1 Shell
3 Screw
4 Washer
5 Sensor unit
6 Solenoid valve
7 PT screw
8 Base
9 O-ring, NBR
10 Air fittings
11 Blow-off valve
12 Thread plug, PG7
13 Cable gland, PG11 4-10 mm
14 Pressure control valve
15 Adapter
16 O-ring
17 O-ring
18 Screw
19 Retainer
20 O-ring
21 O-ring, EPDM
22 Indicator pin
23 Nut
24 5 m. flying PVC cable (12 x 0.5 mm
2
)
26 Air fitting incl. O-ring
8.2 ThinkTop
®
Series 700 valves 8. Parts list
171.6
ø137
Note! This is the basic design.
The clearance should be approximately:
ø 225 x 250 (SRC NC, SMP-SC/-BC/-TO, Unique,
Koltek MH, SBV, AMP)
ø 225 x 320 (SRC NO)
ø 225 x 300 (LKB (LKLA-T))
1
2
3
Clearance
