Alienware m17 R5 AMD User Manual

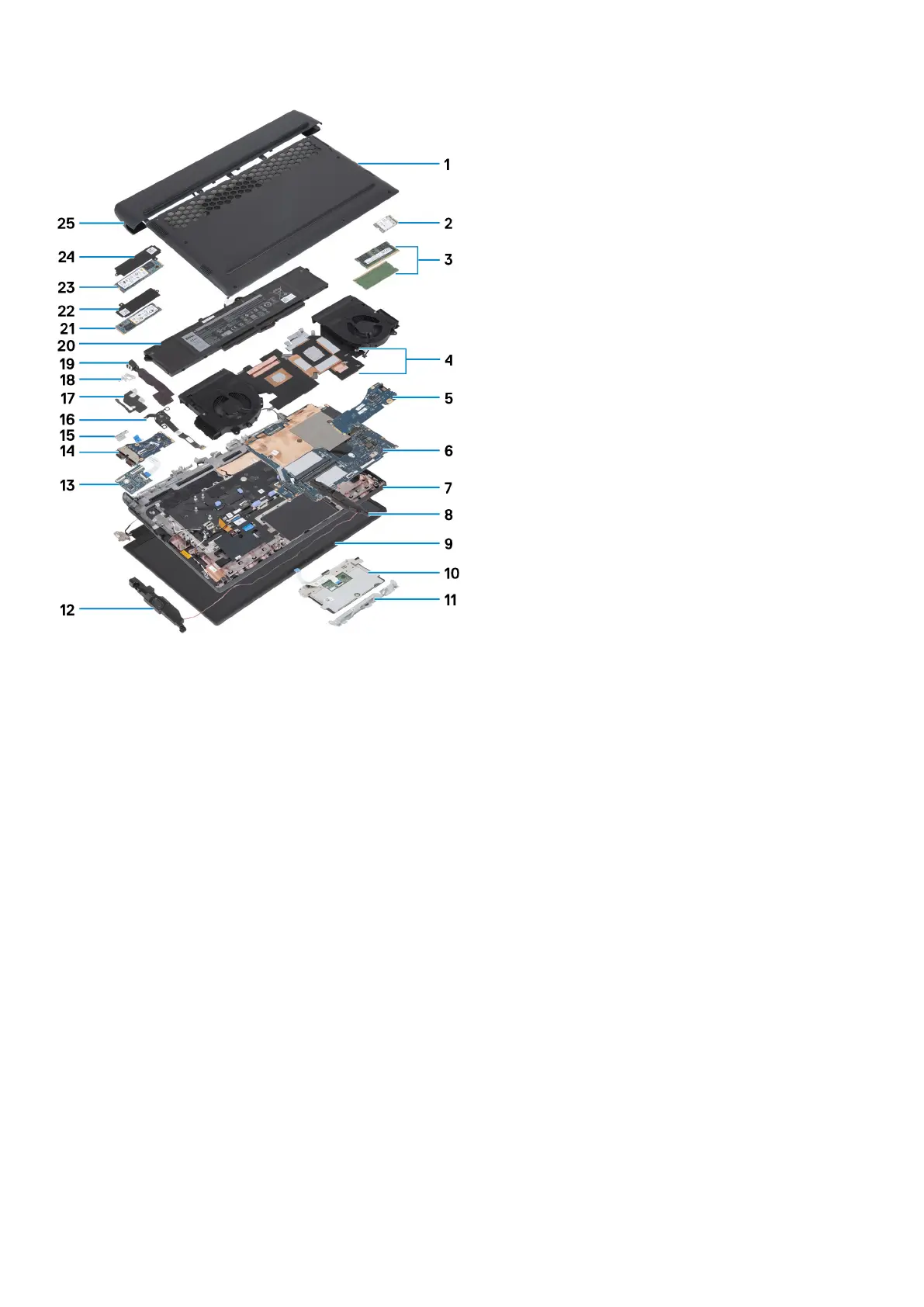

1. Base cover
2. Wireless card
3. Memory modules
4. Fan and heat-sink assembly
5. USB board
6. System board
7. Palm-rest and keyboard assembly
8. Right speaker
9. Display assembly
10.Touchpad
11. Touchpad bracket
12. Left speaker
13. Keyboard-controller board
14. Ethernet and audio board
15.Type-C bracket
16.Power button
17. Power-button bracket
18.Power-adapter port-bracket
19.Power-adapter port
20.Battery
21. M.2 2280 solid-state drive (slot 1)
22.M.2 2280 solid-state drive thermal shield (slot 1)
23.M.2 2280 solid-state drive (slot 2)
24.M.2 2280 solid-state drive thermal shield (slot 2)
25.Rear-I/O cover
12

Alienware m17 R5 AMD Specifications

General

Processor	AMD Ryzen 9 6900HX
Operating System	Windows 11 Home
Weight	3.3 kg (7.28 lbs)
Graphics	AMD Radeon RX 6850M XT
Display	17.3-inch FHD (1920 x 1080)
Memory	32GB DDR5
Storage	1TB NVMe SSD
Battery	97Whr
Ports	HDMI 2.1
Wireless	Wi-Fi 6E
