Steps

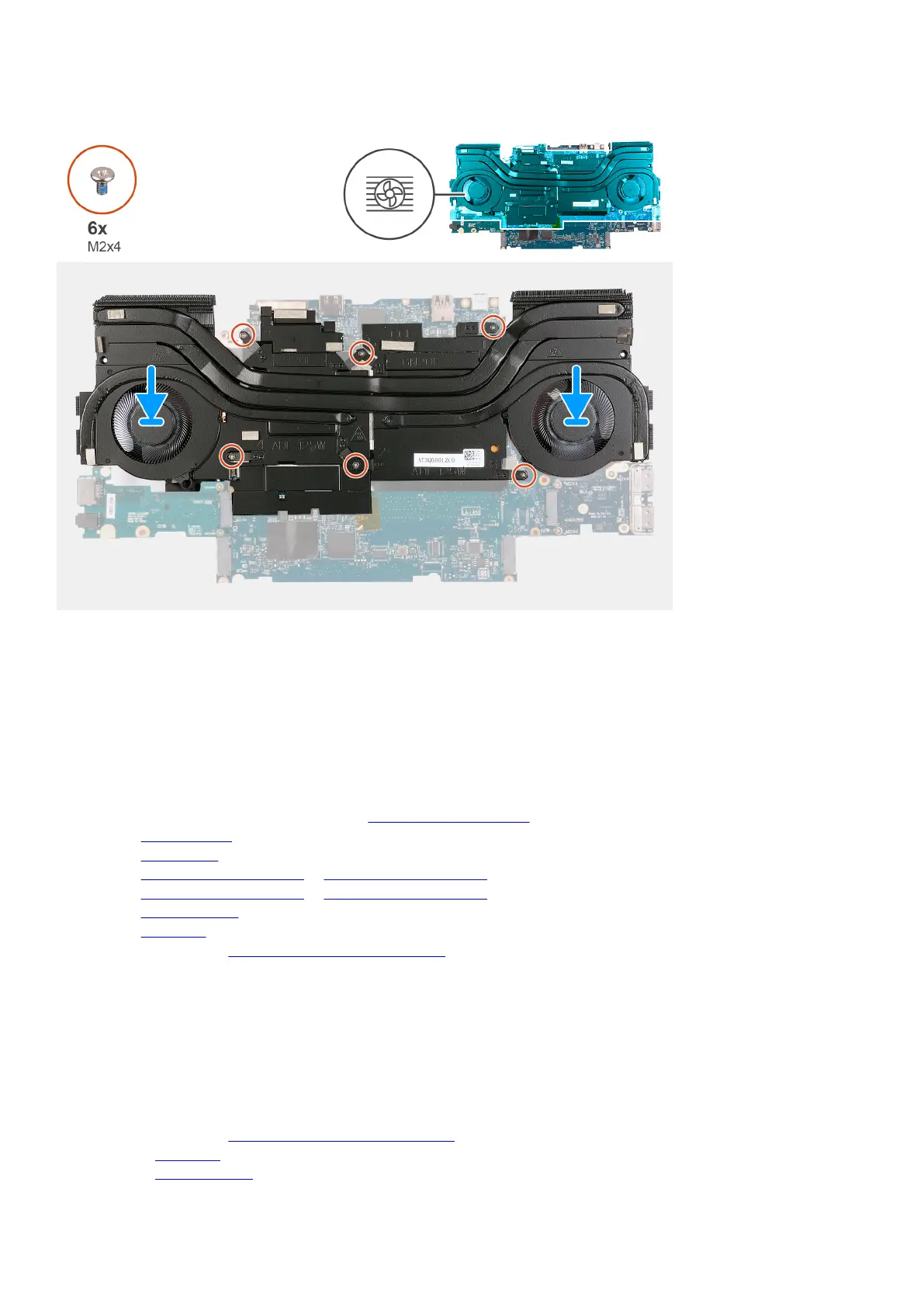

1. Place the fan and heat-sink assembly on the system board.
2. Align the screw holes on the fan and heat-sink assembly to the screw holes on the system board.
3. In sequential order (1>2>3>4>5>6>), tighten the six captive screws (M2x4) that secure the fan and heat-sink assembly to the
system board.
4. Turn over the system-board assembly.
Next steps
1. Follow the procedure from step 6 to step 25 in
Installing the system board.
2. Install the
rear-I/O cover.
3. Install the wireless card.
4. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot one, whichever applicable.
5. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot two, whichever applicable.
6. Install the memory module.
7. Install the
base cover.
8. Follow the procedure in After working inside your computer.
Ethernet and audio board
Removing the ethernet and audio board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the memory module.
59
