Steps

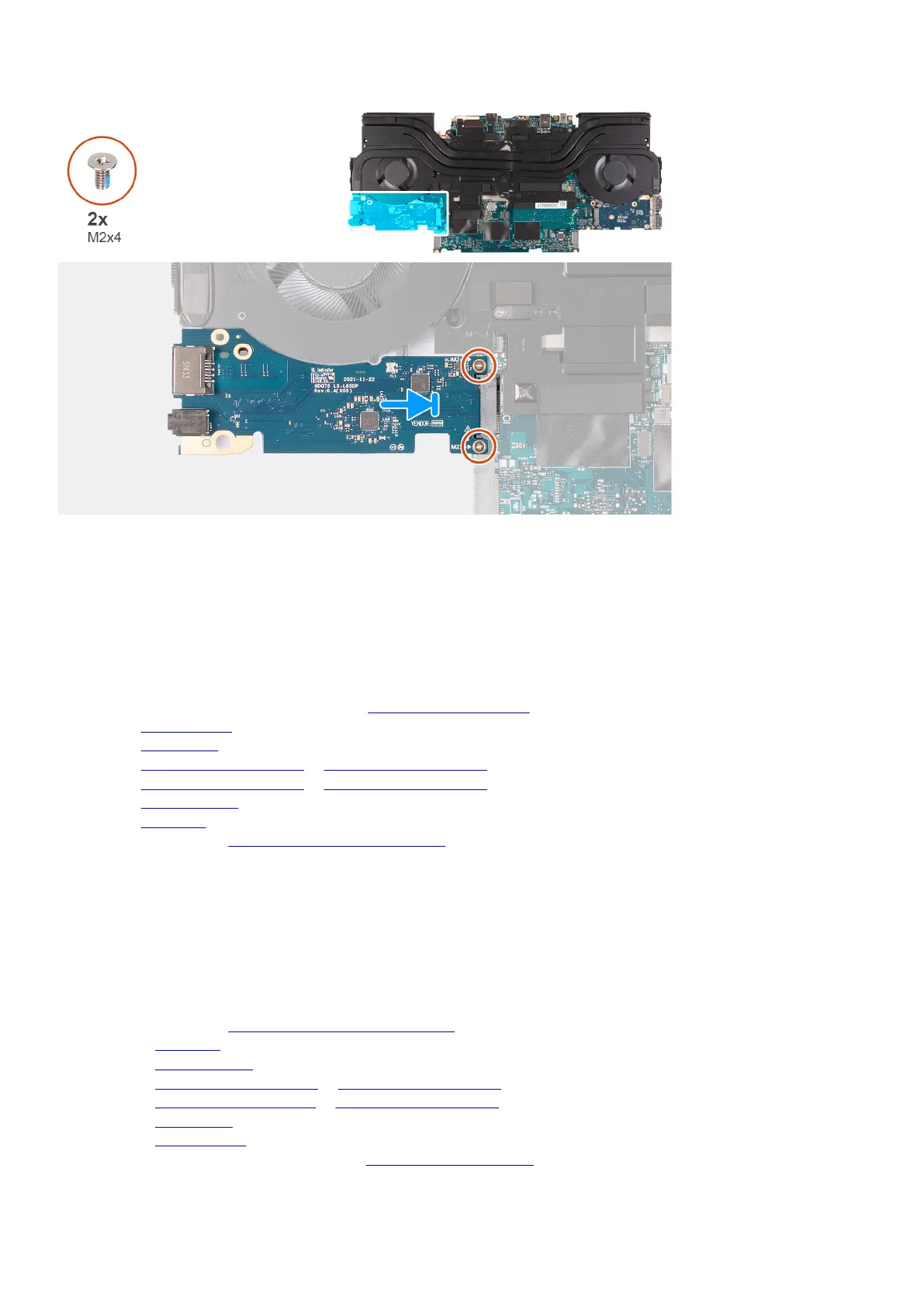

1. Connect the ethernet and audio board to the system-board assembly.
2. Align the screw holes on the ethernet and audio board with the screw holes on the system-board assembly.
3. Replace the two screws (M2x4) that secure the ethernet and audio board to the system-board assembly.
4. Turn the system-board assembly over.
Next steps
1. Follow the procedure from step 6 to step 25 in
Installing the system board.
2. Install the rear-I/O cover.
3. Install the
wireless card.
4. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot one, whichever applicable.
5. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot two, whichever applicable.
6. Install the memory module.
7. Install the
base cover.
8. Follow the procedure in After working inside your computer.
USB board
Removing the USB board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the memory module.
4. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive in slot one, whichever applicable.
5. Remove the M.2 2230 solid state drive or M.2 2280 solid-state drive in slot two, whichever applicable.
6. Remove the wireless card.
7. Remove the rear-I/O cover.
8. Follow the procedure from step 1 to step 20 in
Removing the system board.
61
