Solid-state drive
Removing the M.2 2230 solid-state drive in slot one
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: This procedure is applicable only to computers shipped with an M.2 2230 solid-state drive installed in M.2 slot one
(SSD1).
NOTE: The M.2 card installed on M.2 slot one (SSD1) will depend on the configuration ordered. Supported card configurations:
● M.2 2230 solid-state drive
● M.2 2280 solid-state drive
NOTE: This procedure is applicable only to computers shipped with NVIDIA GeForce RTX 3050 Ti graphics card.

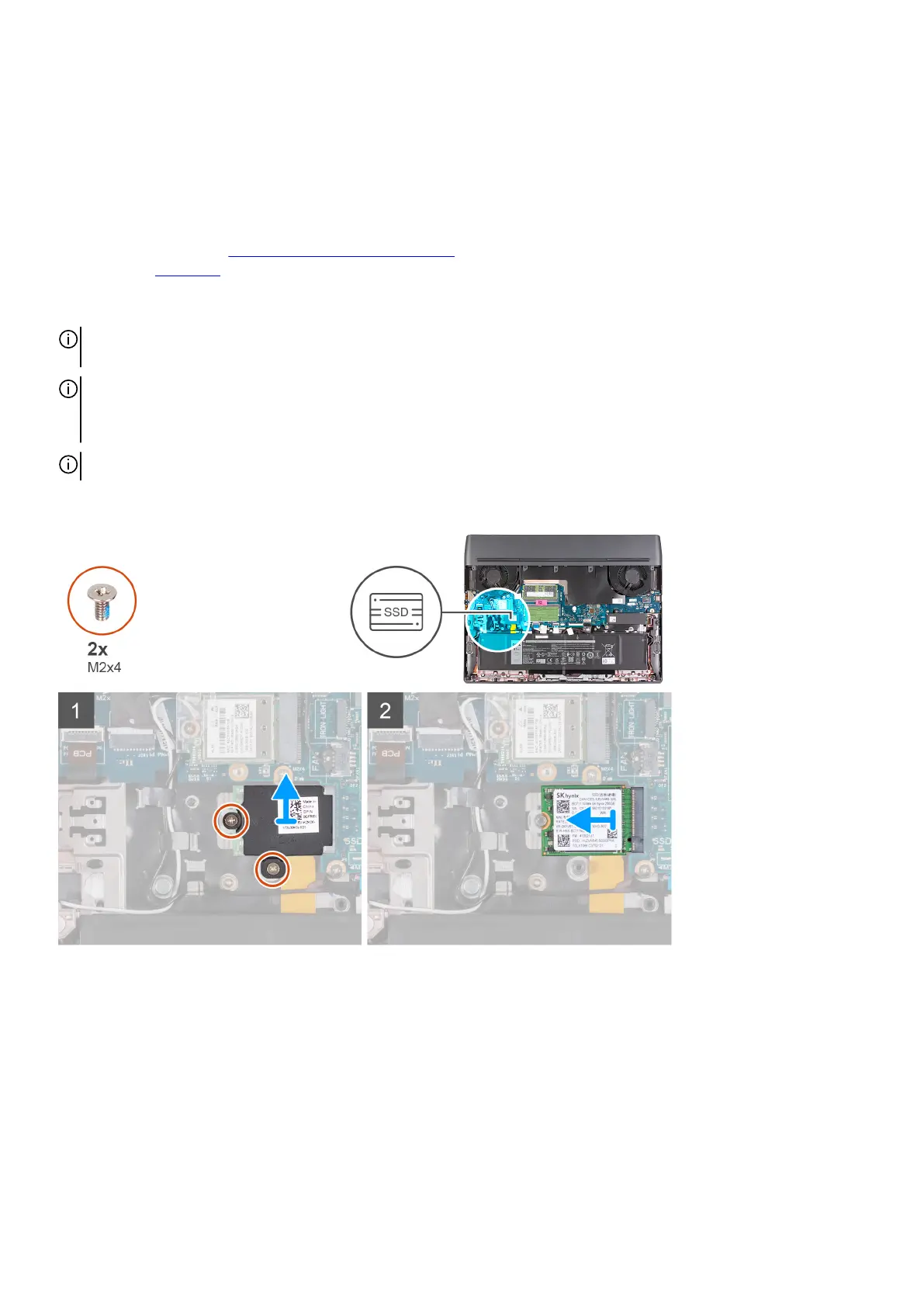

The following image(s) indicate the location of the M.2 2230 solid-state drive in slot one and provides a visual representation of the
removal procedure.
Steps
1. Remove the two screws (M2x4) that secure the M.2 2230 thermal shield to the palm-rest and keyboard assembly.
2. Slide and remove the M.2 2230 thermal shield off the solid-state drive.
3. Slide and remove the M.2 2230 solid-state drive from the solid-state drive slot.
Installing the M.2 2230 solid-state drive in slot one
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
18
