Alienware m17 R5 AMD User Manual

Steps

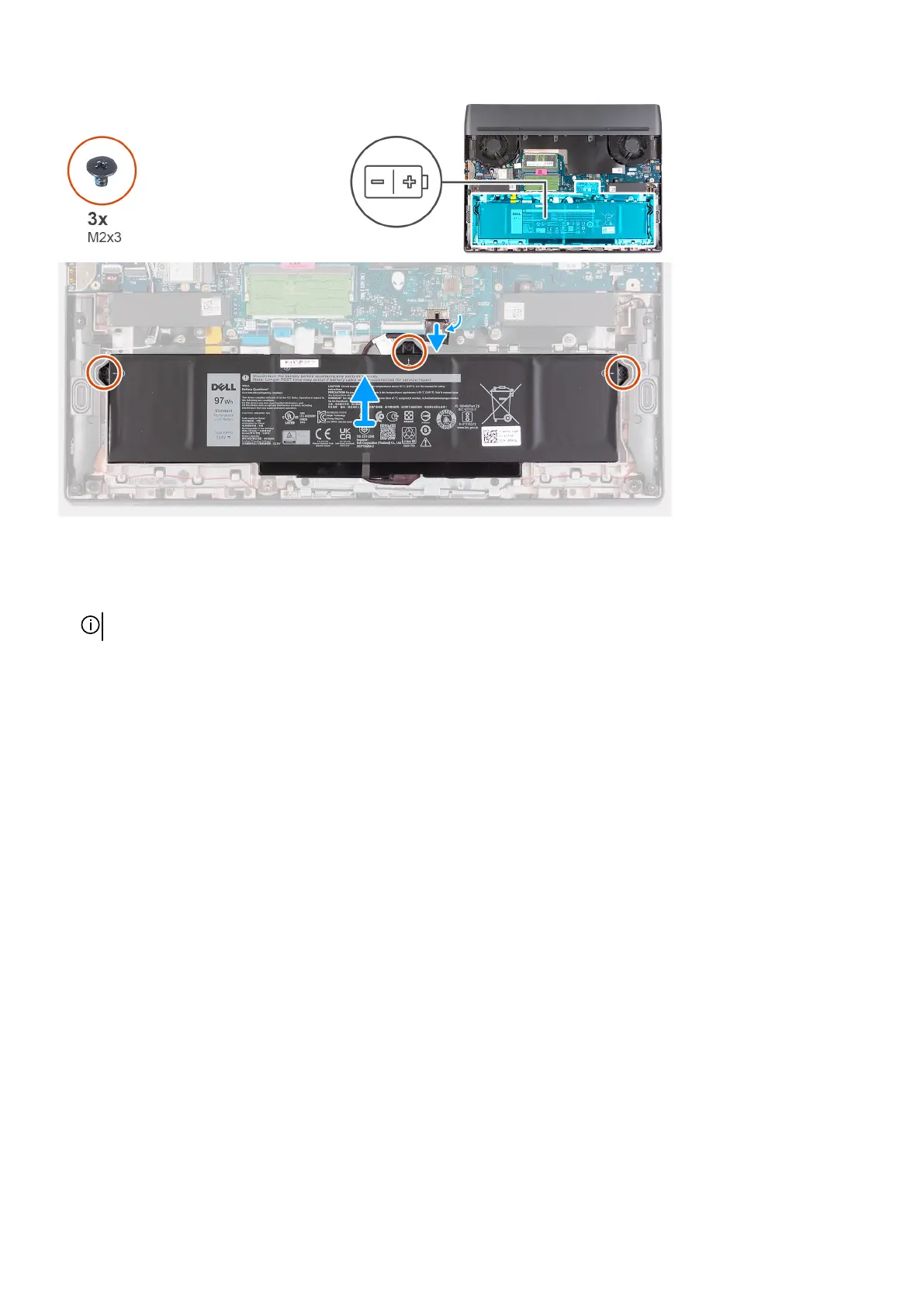

1. Peel the tape that secures the battery cable to the battery.
2. Disconnect the battery cable from the system board.
NOTE: Step 1 and step 2 are applicable only if the battery cable has not been disconnected.
3. Remove the three screws (M2x3) that secure the battery to the palm-rest and keyboard assembly.
4. Lift the battery off the palm-rest and keyboard assembly.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the battery and provides a visual representation of the installation procedure.
35

Alienware m17 R5 AMD Specifications

General

Processor	AMD Ryzen 9 6900HX
Operating System	Windows 11 Home
Weight	3.3 kg (7.28 lbs)
Graphics	AMD Radeon RX 6850M XT
Display	17.3-inch FHD (1920 x 1080)
Memory	32GB DDR5
Storage	1TB NVMe SSD
Battery	97Whr
Ports	HDMI 2.1
Wireless	Wi-Fi 6E
