10.Remove the touchpad.
11. Remove the keyboard-controller board.
12. Follow the procedure from step 1 to step 15 in Removing the system board.
NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and installation
procedure and avoids breaking the thermal bond between the system board and heat sink.
13. Remove the I/O board.
14. Remove the
power button.
About this task

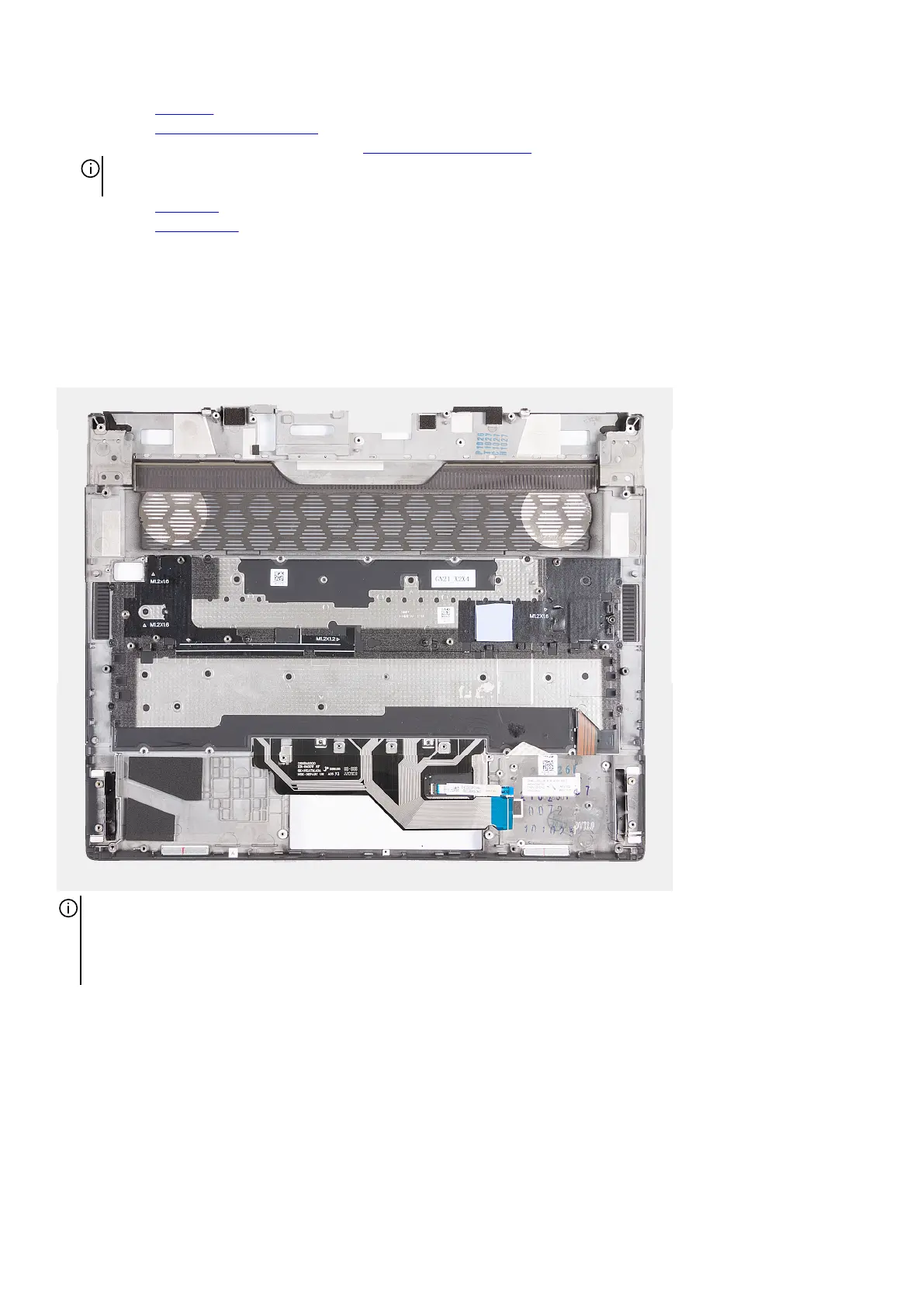

The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
removal procedure.
Steps
After performing the pre-requisites, you are left with the palm-rest and keyboard assembly.
NOTE:
When replacing the palm-rest and keyboard assembly for computers with a M.2 2230 solid-state drive installed, ensure that the
M.2 2230 solid-state drive mounting bracket has been removed from the palm-rest and keyboard assembly and installed on the
new palm-rest and keyboard assembly.
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
