About this task

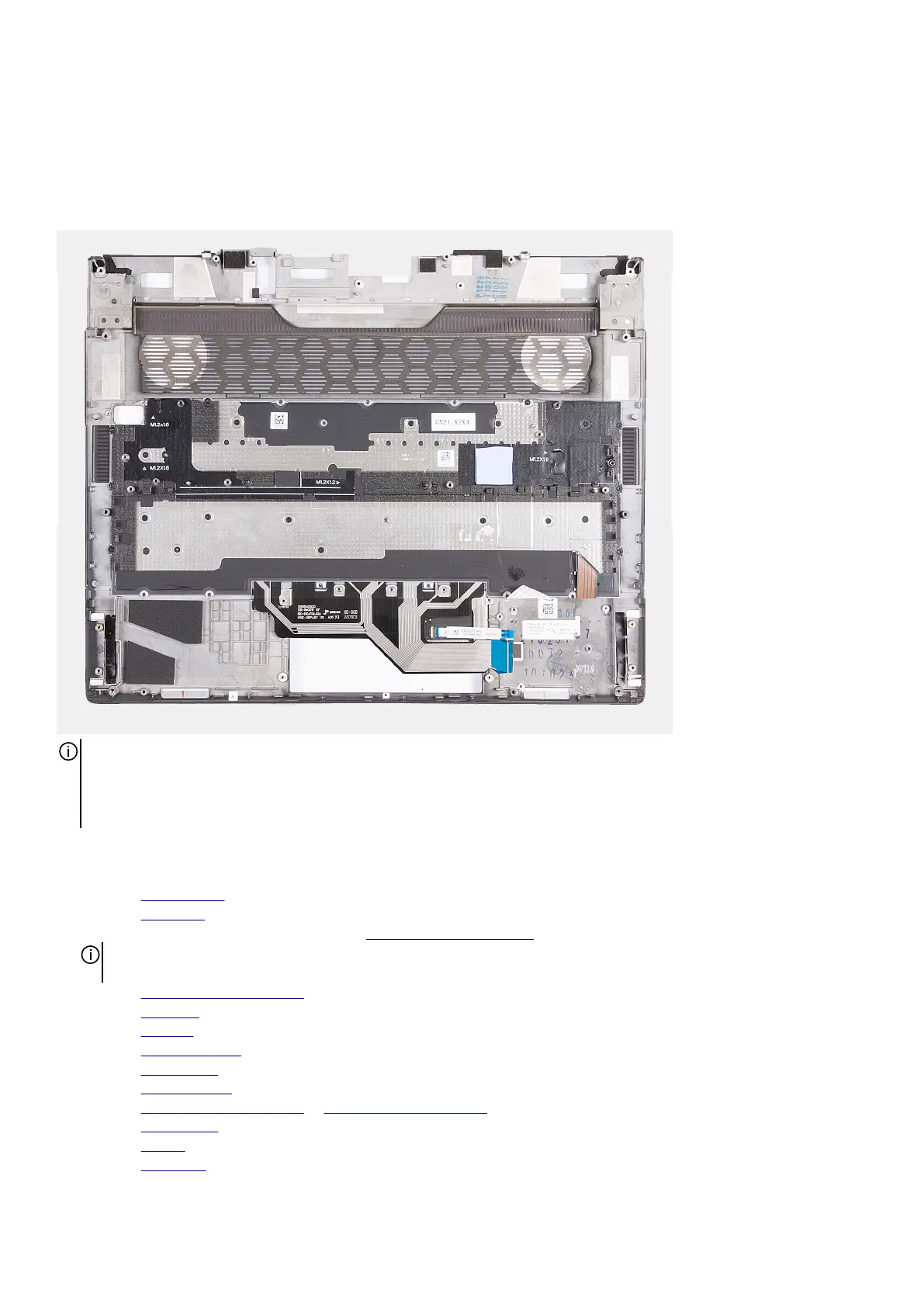

The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
Steps
To install the palm-rest and keyboard assembly, perform the postrequisites.
NOTE:
When replacing the palm-rest and keyboard assembly for computers with a M.2 2230 solid-state drive installed, ensure that the
M.2 2230 solid-state drive mounting bracket has been removed from the palm-rest and keyboard assembly and installed on the
new palm-rest and keyboard assembly.
Next steps
1. Install the
power button.
2. Install the
I/O board.
3. Follow the procedure from step 5 to step 19 in Replacing the system board.
NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and installation
procedure and avoids breaking the thermal bond between the system board and heat sink.
4. Install the keyboard-controller board.
5. Install the touchpad.
6. Install the speakers.
7. Install the display assembly.
8. Install the headset port.
9. Install the rear I/O-cover.
10.Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
11. Install the
wireless card.
12. Install the battery.
13. Install the base cover.
