Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

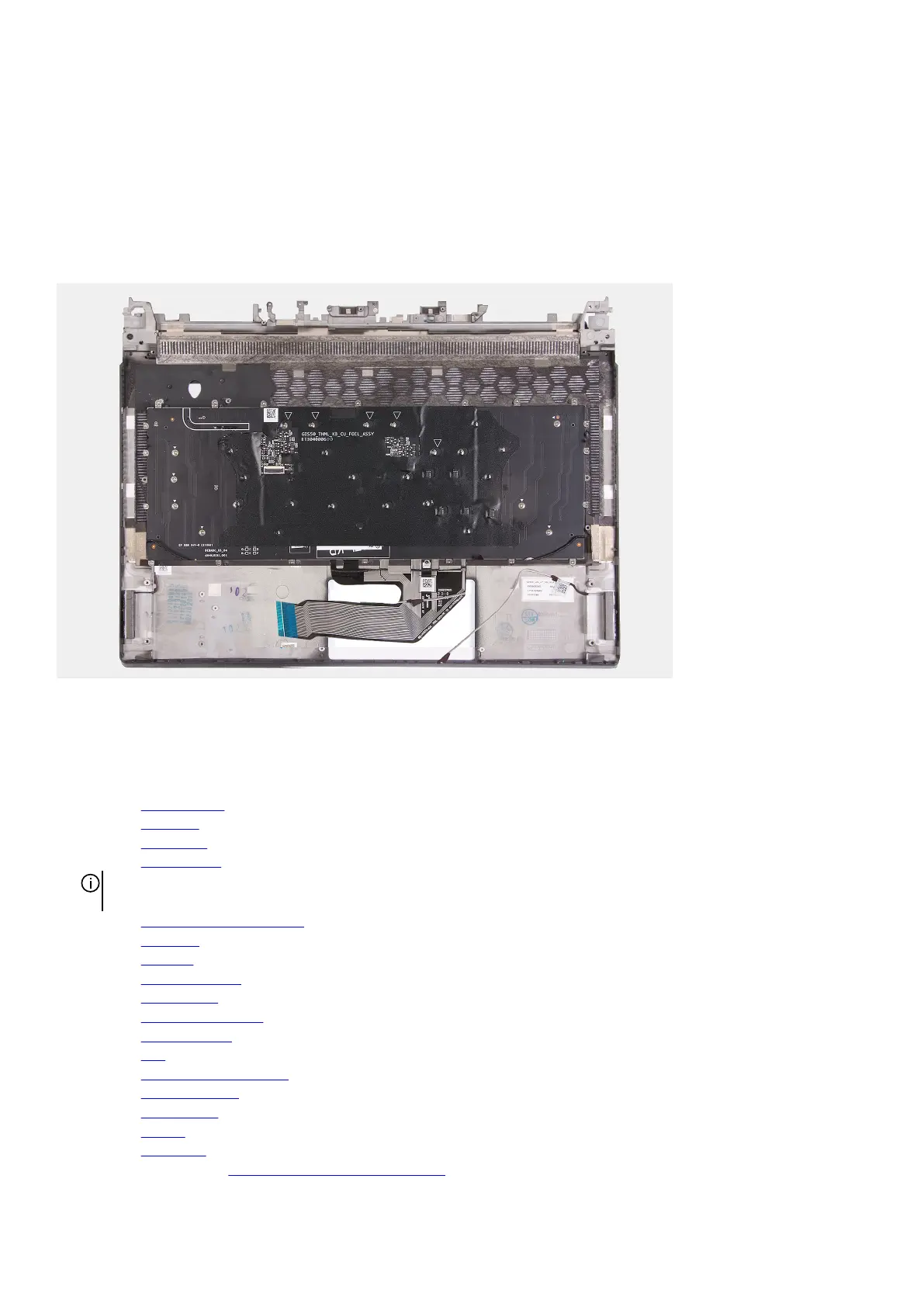

The following image(s) indicate the location of the palm-rest and keyboard assembly and provides a visual representation of the
installation procedure.
Steps
To install the palm-rest and keyboard assembly, perform the postrequisites.
Next steps
1. Install the power button.
2. Install the keyboard.
3. Install the I/O-board.
4. Install the system board.
NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and installation
procedure and avoids breaking the thermal bond between the system board and heat sink.
5. Install the keyboard-controller board.
6. Install the
touchpad.
7. Install the speakers.
8. Install the display assembly.
9. Install the headset port.
10.Install the power-adapter port.
11. Install the rear I/O-cover.
12. Install the fans.
13. Install the solid-state drive bracket.
14. Install the
solid-state drive.
15.Install the wireless card.
16.Install the battery.
17. Install the base cover.
18.Follow the procedure in After working inside your computer.
