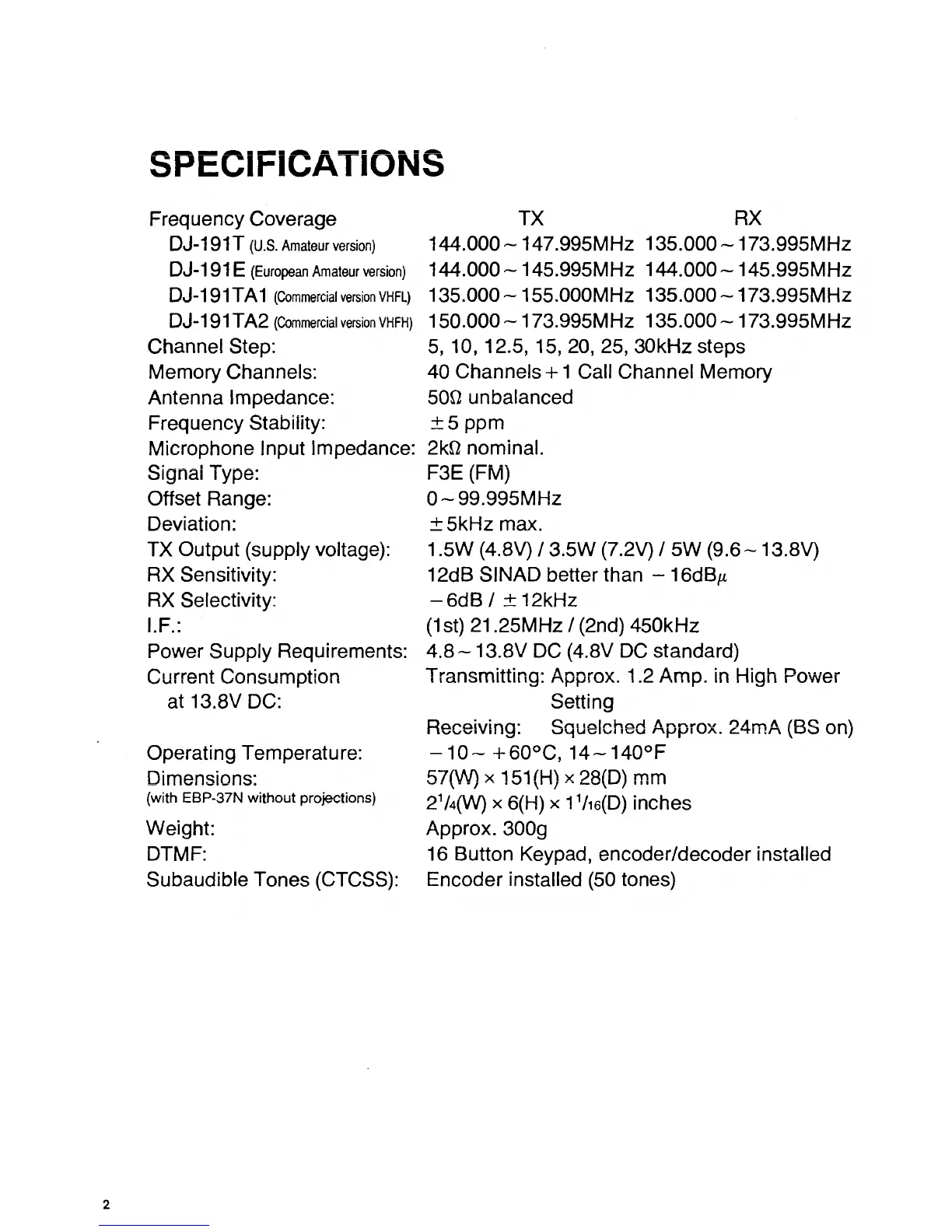

SPECIFICATIONS
Frequency Coverage
DJ-191T (u .S. Amateur version)
DJ-191E (European Amateur version)
D J -191T A1 (Commercial version VHFL)
DJ-191TA2 (Commercial version VHFH)
Channel Step:
Memory Channels:
Antenna Impedance:
Frequency Stability:
Microphone Input Impedance:
Signal Type:
Offset Range:
Deviation:
TX Output (supply voltage):
RX Sensitivity:
RX Selectivity:
I.F.:
Power Supply Requirements:
Current Consumption
at 13.8V DC:
Operating Temperature:
Dimensions:
(with EBP-37N without projections)
Weight:
DTMF:
Subaudible Tones (CTCSS):
TX RX
144.000 ~ 147.995MHz 135.000 ~ 173.995MHz
144.000 ~ 145.995MHz 144.000 ~ 145.995MHz
135.000 ~ 155.000MHz 135.000 ~ 173.995MHz
150.000 ~ 173.995MHz 135.000 ~ 173.995MHz
5, 10, 12.5, 15, 20, 25, 30kHz steps
40 Channels +1 Call Channel Memory
50£2 unbalanced
± 5 ppm
2ki2 nominal.
F3E (FM)
0~ 99.995MHz
±5kHz max.
1.5W (4.8V) / 3.5W (7.2V) / 5W (9.6 ~ 13.8V)
12dB SINAD better than - 16dB/i
-6d B / ± 12kHz
(1st) 21.25MHz / (2nd) 450kHz
4.8 ~ 13.8V DC (4.8V DC standard)
Transmitting: Approx. 1.2 Amp. in High Power
Setting
Receiving: Squelched Approx. 24mA (BS on)
-1 0 - +60°C, 14 — 140°F
57(W) x l 51 (H)x 28(D) mm
21A(W) x 6(H) x 11/i6(D) inches
Approx. 300g
16 Button Keypad, encoder/decoder installed
Encoder installed (50 tones)
