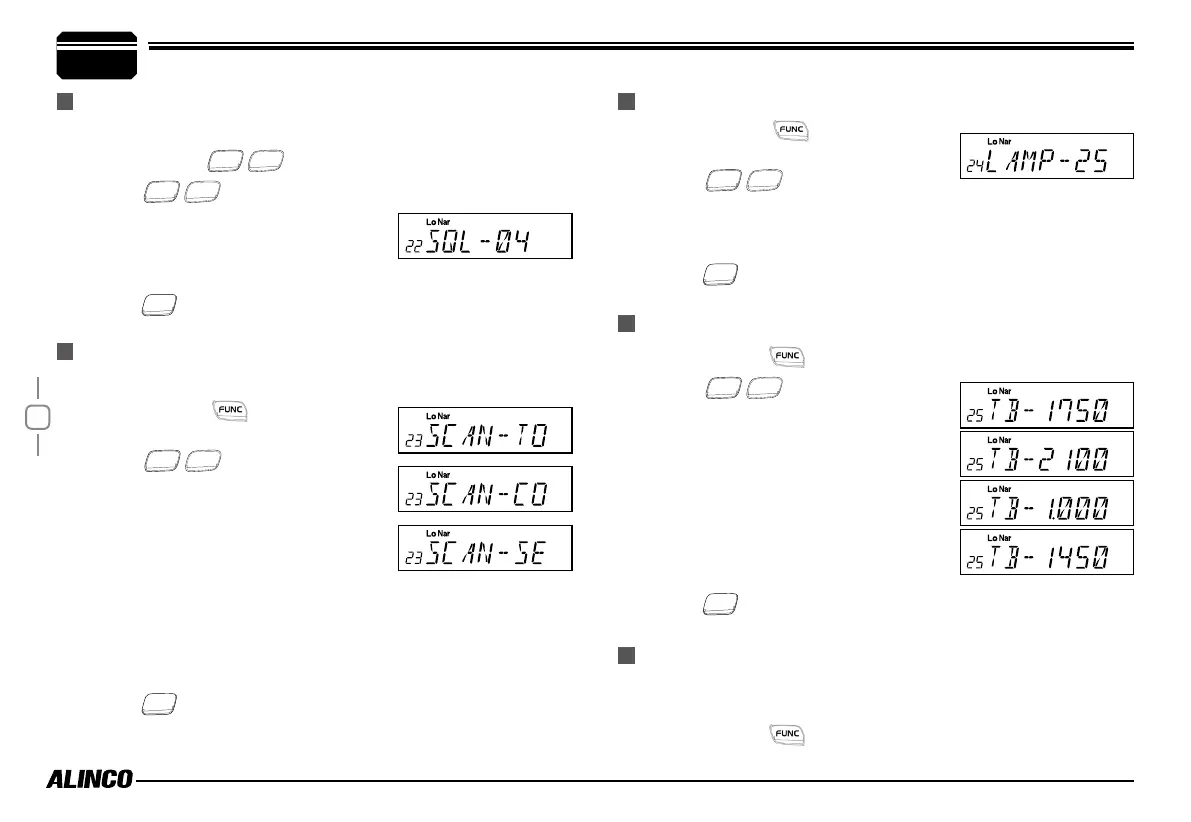

Display iiiumination color setting
This is to select the display illumination color.
Press and hold
1.
CALL
/
MONI
key for over 2s to enter setting menu.
Press
2.
CALL
/
MONI
key to choose No.22
menu, LCD displays "COL--ORG".
Turn selector knob to select the desired
3.
color. Available colors are: ORG-
Orange, PUR-Purple, and BLU-Blue.
Press
4.
TS/DCS
key to conrm and exit.
Scan resume Time Setup
There are 3 kinds of scan resume conditions.
Press and hold
1.
key for over 2s to
enter setting menu.
Press
2.
CALL
/
MONI
key to choose No.23
menu, LCD displays "SCAN--TO".
Turn selector knob to select the desired
3.
Scan Resume Time.
TO: Timed Scan, it resumes scanning
after receiving 5s or when the signal is
gone, which ever faster.
CO: Busy Scan, it resumes scanning when the receiving signal is
gone.
SE: Stops scanning when a signal is received.
Press
4.
TS/DCS
key to conrm the selection and exit.
LCD dimmer
Press and hold
1.
key for over 2s to
enter setting menu.
Press
2.
CALL
/
MONI
key to choose No.24
menu, LCD displays "LAMP--25"
Turn selector knob to select the desired LCD brightness; 1 to turn
3.
off, 32 to the brightest.
Press
4.
TS/DCS
key to conrm and exit.
tone-burst tones
Press and hold
1.
key for over 2s to enter setting menu.
Press
2.
CALL
/
MONI
key to choose No.25
menu, LCD displays"TB--1750".
Turn selector knob to select the desired
3.
pilot frequency.
1750HZ: Tone-burst tone.
2100HZ: Tone-burst tone.
1000HZ: Tone-burst tone.
1450HZ: Tone-burst tone.
Press
4.
TS/DCS
key to conrm the selection and exit.
Display Mode Setup
There are 3 different dispaly modes: Frequency+Memory mode,
Channel mode&Channel+Name Tag mode.
Press and hold
1.
key for over 2s to enter setting menu.
General Setting
