NO. KEY FUNCTION
1 PWR(Power) Power on/Off
2 VOL
Knob
Adjust audio level
3
SQL Knob Adjust Squelch level
4 FUNC Various functions
5 P1
Switches between VFO mode and Memory mode
6 P2 Changes frequency by 1MHz order
7 P3 Sets CTCSS and DCS values
8 P4 Call channel
9
Data Terminal
/Mic.connector
Data reading/writing, cloning and Microphone
connection port
NO. KEY FUNCTION
1 P1 MW(Setting memory channel data)
2 P2 Deleting memory channel
3 P3
Keypad lockout
4 P4 High/Middle/Low power
NO. KEY FUNCTION
1 FUNC Goes to FUNCTION MENU
2 P1 SCAN
3 P2
Frequency Offset
4 P3
Power voltage monitor
5 P4 --
NO. KEY FUNCTION
1 FUNC+P4+PWR(ON) Reset to factory default settings

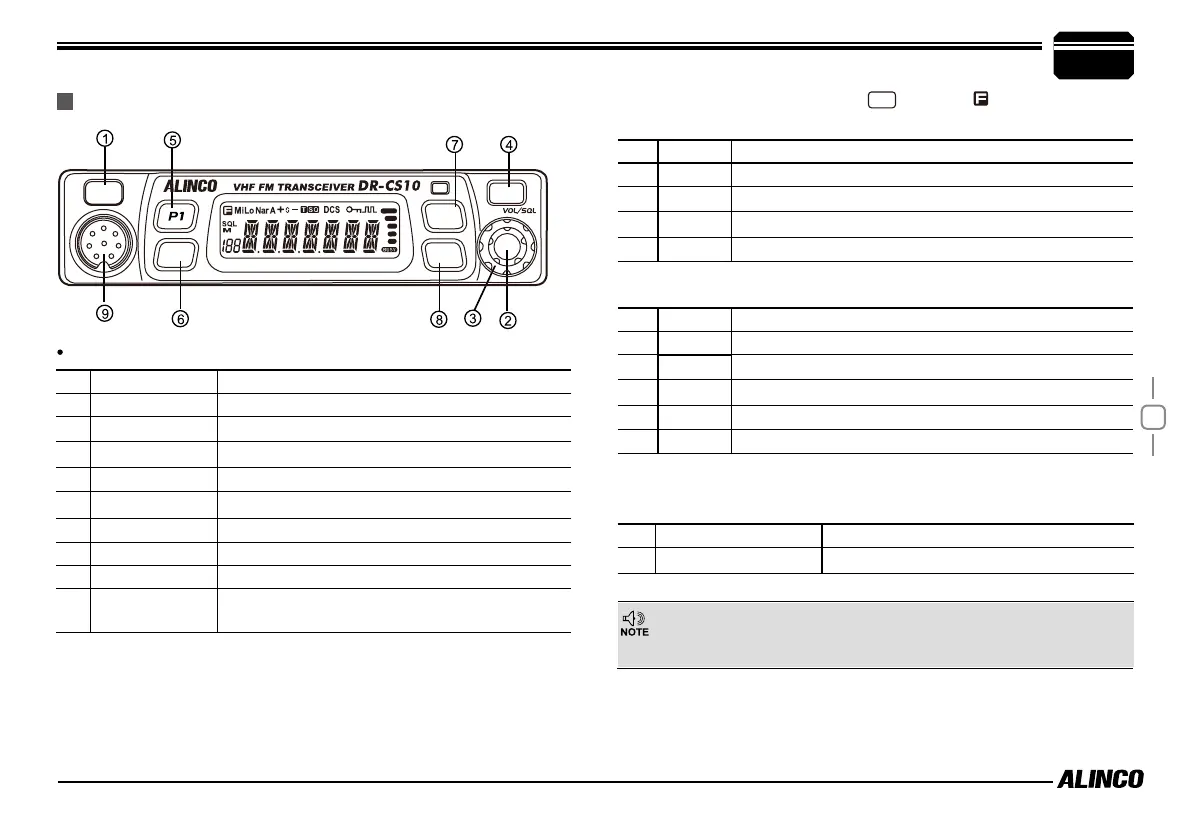

Getting Acquainted
Front panel
Functions that require continuous pressing following key to be
activated.
Functions that require pressing
FUNC
key until icon appears then
press the following key.
Functions that require holding for over 2 seconds the following key.
Basic Functions
P3
P2
FUNCPWR
P4
The functions of keys may vary due to dealer programming.
In case the transceiver functions differently or doesn't work, please contact to
the dealer who programmed your transceiver.
