ALKOTA 4142 - Page 23

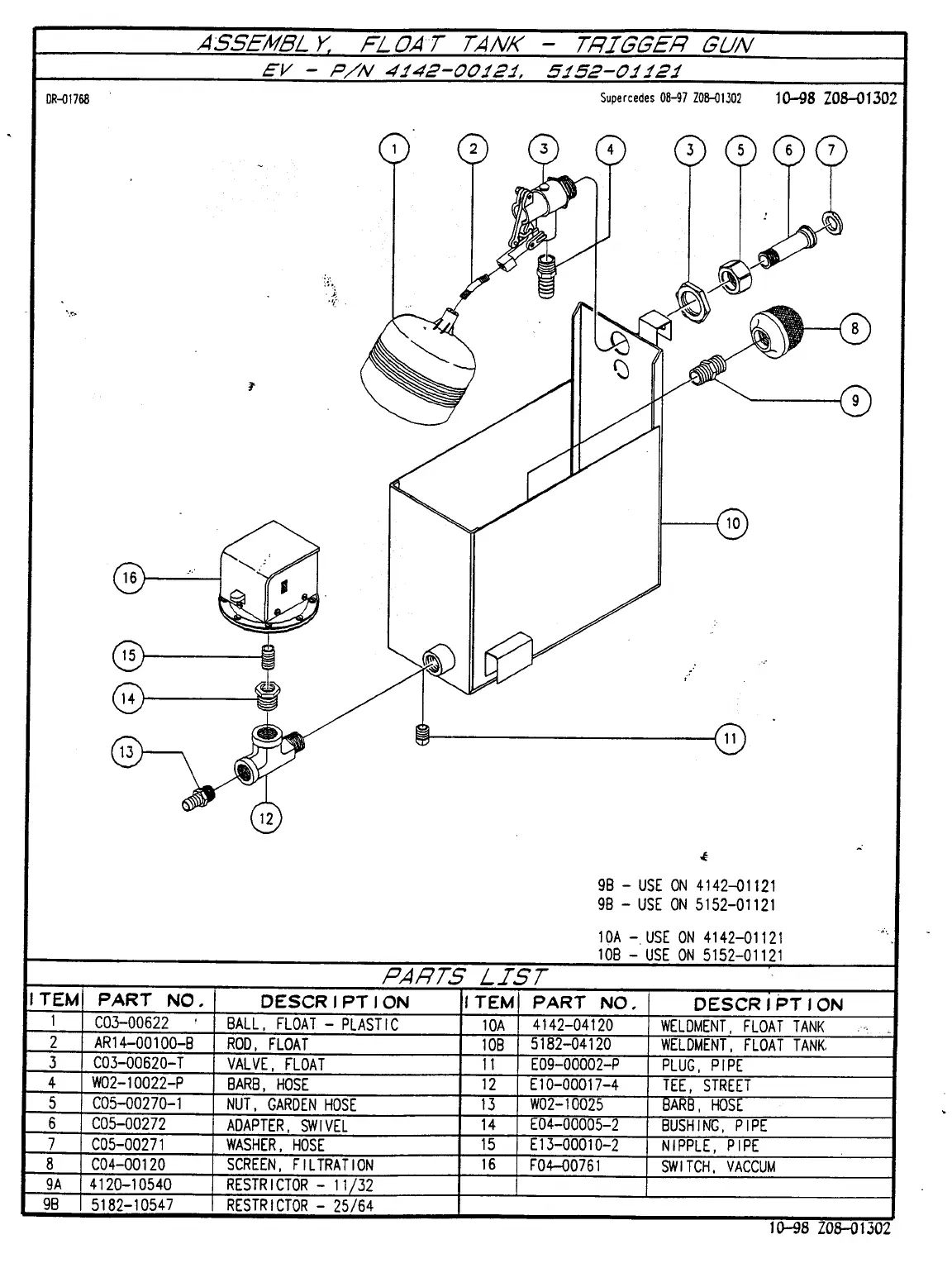

ASSEMBL>": FLOAT TANK -TRIGGER GUN
EV -P/N 4142-00121, 5152-01121
DR-o1768 Supercedes 08-97 ZOB-o1J02 10-98 ZOB-{)1302
\'"
t-
,
~
9B -USE ON 4142-01121
9B -USE ON 5152-01121
IDA -USE ON 4142-01121 ..
10B -USE ON 5152-01121
PARTS LIST
ITEM PART NO, DESCRIPTION ITEM PART NO, DESCRIPTION
1 CO3-00622 BALL, FLOAT -PLASTIC 10A 4142-04120 WELDMENT, FLOAT TANK ~
2 AR14-00100-B ROD, FLOAT lOB 5182-04120 WELDMENT, FLOAT TANK,
J C03-00620-T VALVE, FLOAT 11 E09-00002-P PLUG, PIPE
4 W02-10022-P BARB, HOSE 12 El0-00017-4 TEE STREET
5 C05-00270-1 NUT, GARDEN HOSE 13 W02-10025 ,
6 C05-00272 ADAPTER, SWIVEL 14 E04-00005-2 .
7 C05-00271 WASHER, HOSE 15 E13-00010-2 NIPPLE, PIPE
8 C04-00120 SCREEN, FILTRATION 16 FO4-00761 SWITCH, VACCUM
9A 4120-10540 RESTRICTOR -11 32
9B 5182-10547 RESTRICTOR -25/64
10-98 lOB-{) 1.302
