DANFOSS PUMP
1. Shut off fuel supply.
2. Loosen the 2 screws with 7/64 allen wrench one
turn.
3. Turn cover counter clockwise and pull strainer and
cover off of pump housing.
4. Clean out any dirt remaining in the bottom of strainer
cover. If there is evidence of rust inside of the unit,
be sure to remove water in supply tank and fuel filter.
5. Reinstall reverse of removal.
6. Turn on fuel supply.
1. Remove burner junction box cover.
2. Turn on burner and make sure ignition transformer
is receiving rated voltage.
3. Turn off burner.
4. Loosen screw and swing transformer away from
burner gun assembly.
5. Turn on burner.
6. Short the high voltage terminals. CAUTION: Use
screwdriver with a well insulated handle to avoid
shock.
7. Open gap by drawing screwdriver away from one
electrode while touching the other.
8. The spark should jump between 5/8 to 3/4 inches,
if it does not jump, replace the transformer.
9. Turn burner off.
10. Partially close transformer. Check if buss bars align
and contact transformer
electrodes. If buss bars do
not contact, see Buss Bar
Alignment.
11. Close transformer, reposition
retainer clip and tighten.
NOTE: The air band adjustment on this burner has been
preset at the factory (elevation approximately 1400 feet).
On equipment installed where elevation is substantially
different, the air band(s) must be readjusted.
1. Move the air bands as indicated below with the
machine in operation.
NOTE: The air band should be set so the exhaust
gives the smoke spot specified in the GENERAL
section of the MACHINE
SPECIFICATIONS on a Shell-
Bacharach scale. If a smoke
tester is not available, a smoky
exhaust, oily odor, or sweet smell
indicates insufficient air while eye-
burning fumes indicate too much air.
2. Tighten the cap screw retaining the air
bands.
SUNSTRAND PUMP
1. Shut off fuel supply.
2. Loosen the 4 screws holding the cover to the fuel
pump housing.
3. Take cover and cover gasket off and pull strainer off
of pump housing.
4. Clean out any dirt remaining in the bottom of strainer
cover. If there is evidence of rust inside of the unit,
be sure to remove water in supply tank and fuel
filter.
5. Turn on fuel supply. Failure to do so will result in
fuel pump damage.
PART NUMBER
V00-14283-2
PART NUMBER
V00-14283-5
PART NUMBER
V00-99004
Supersedes 08-05-03 Z08-00062

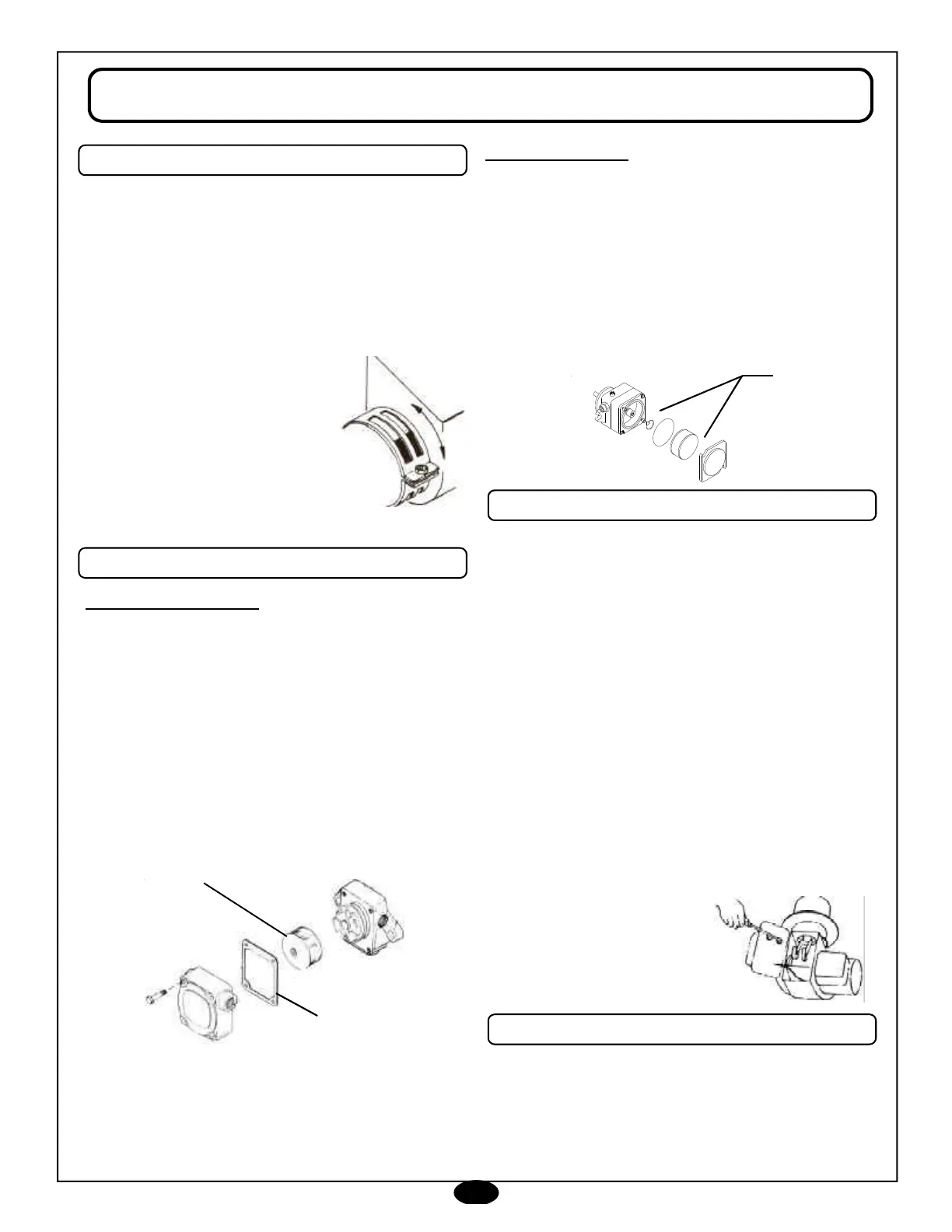

OIL BURNER MAITENANCE
OIL FIRED CLEANERS
BUSS BAR ALIGNMENT
FUEL PUMP SCREEN
AIR BAND AJUSTMENT
MACHINE UNPACKING
1. With burner off, loosen screw and swing the
transformer away from burner gun assembly.
2. Inspect the buss bars and transformer electrodes
for pitting or corrosion.
