ALKOTA 4142 - Parts List

ASSEMBL}": CONTROL PANEL 20A 230V 1PH 50HZ

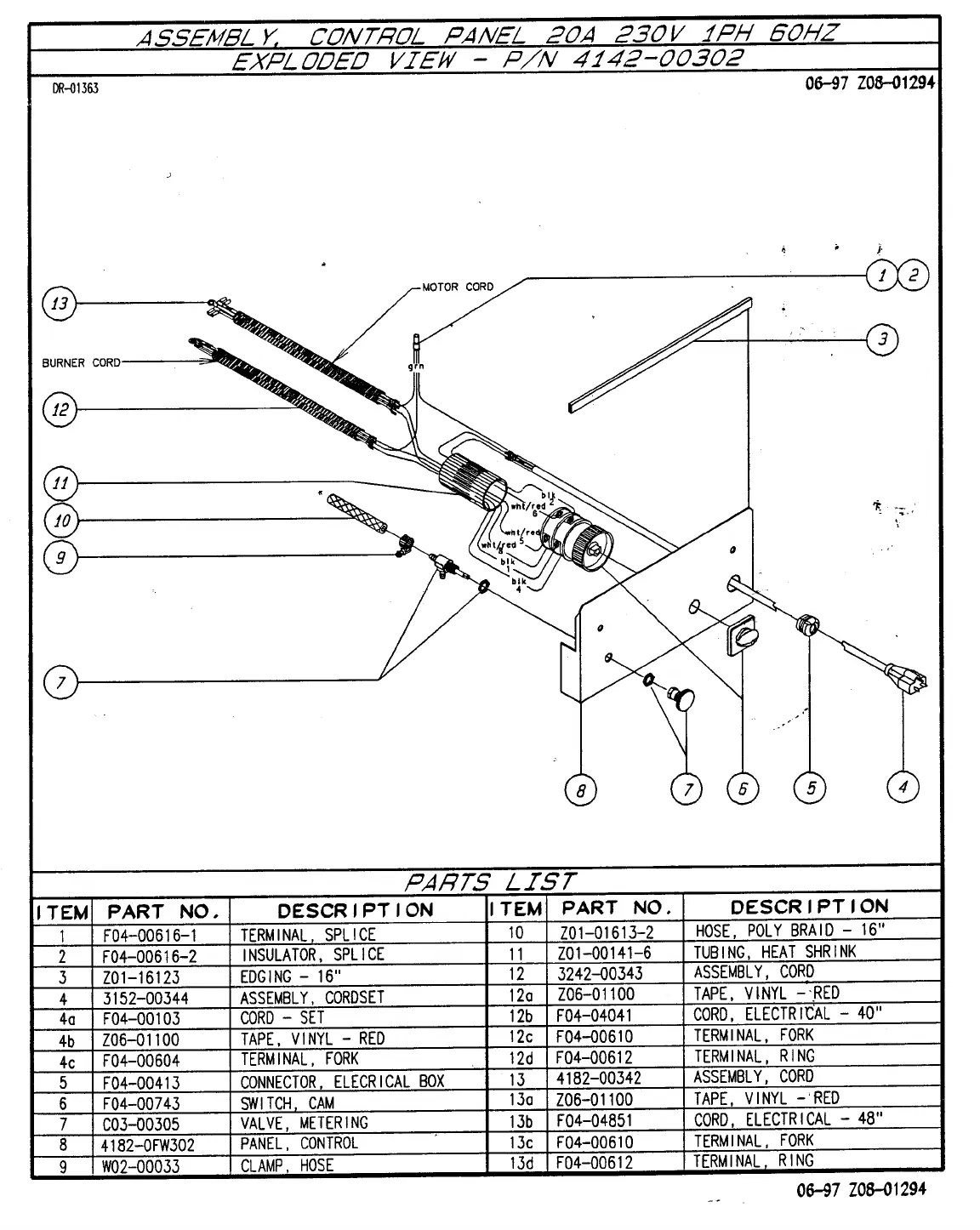

EXPLODED VIEW -P/N 4142-00302
DR-Q1363 06-97 ZO8-0129-4
;, .,
.
CORD
7
PARTS LIST
ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION
1 F04-00616-1 TERMINAL. SPLICE 10 l01-01613-2 HOSE. POLY BRAID -16"
2 F04-00616-2 INSULATOR, SPLICE 11 l01-00141-6 TUBING, HEAT SHRINK
3 l01-16123 EDGING -16" 12 3242-00343 ASSEMBLY, CORD
4 3152-00344 ASSEMBLY, CORDSET 120 l06-01100 TAPE, VINYL -'.RED
40 F04-00103 CORD -SET 12b F04-04041 CORD. ElECTRIt'Al -40"
4b l06-01100 TAPE. VINYL -RED 12c F04-o0610 TERMINAL. FORK
4c F04-00604 TERMINAL, FORK 12d F04-00612 TERMINAL. RING
5 F04-00413 CONNECTOR. ElECRICAl BOX 13 4182-00342 ASSEMBLY. CORD
6 FO4-00743 SWITCH CAM 130 l06-01100 TAPE, VINYL -'RED
7 C03-o0305 VALVE, METERING 13b F04-04851 CORD, ELECTRICAL -48"
8 4182-0FW302 PANEL. CONTROL 13c F04-0061 0 TERMINAL, FORK
9 W02-00033 CLAMP, HOSE 13d FO4-00612 TERMINAL RING
06-97 ZO8-01294
