ALL-TEST PRO
®
31 User Manual
©2011, ALL-TEST Pro, LLC www.alltestpro.com rev 2011-11F 16

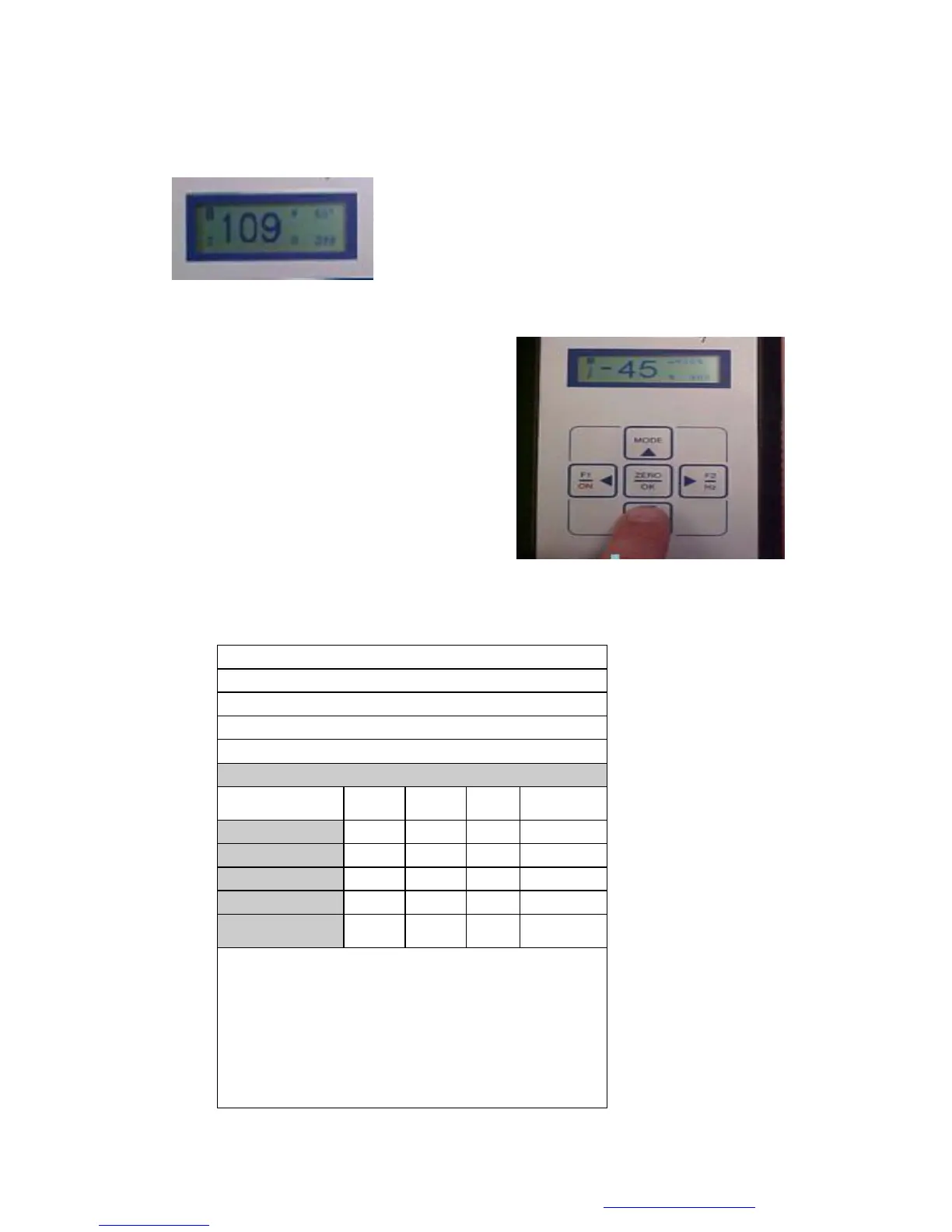

2. Read the Impedance (Z) and Phase Angle (ψ) values from display screen 1 for winding. Do
not fill in the phase balance until all three phases have been measured.
3. Press the TEST key to display the Current Frequency Response (I/F).
4. Record these test results on the Motor Test Form.
ALL-TEST Pro 31 Motor Test Form
Motor ID: Test Motor
Location: Warehouse
Test Date: 8/8/06
Test Frequency 200 Hz
Phase
1-2
Phase
1-3
Phase
2-3
Impedance (Z)
107 107 109
Phase Angle (°)
66 66 66
Z-Test or I/F
-45 -45 -45
Phase balance (opt)
Ins Resistance
Test
Voltage
Was rotor set to lowest value during phase balance test? Y__ N__
Rotor test performed? Y___ N___
Comments:
© ALL-TEST PRO
Winding 3 Current Frequency
