4 Connecting the controller
© 2021 Interflex Datensysteme GmbH IF-4070 Controller 12
Bus data cables with readers
You can connect up to 8 readers to each bus interface. A maximum of 16 readers can be
connected to the controller.
n
Always connect a reader with address 1 to bus 1.
n
Evenly distribute the readers among the three bus interfaces. The factory setting for the
interfaces is as follows:
– Bus 1: 6 readers max.
– Bus 2: 4 readers max.
– Bus 3: 6 readers max.
Make sure that each reader has a unique hardware address within the bus.
Data cables with readers can be connected in two ways.
Connections on the printed circuit board [}8]:
n
On the front panel using RJ45 connectors
n
Internally to screw terminal 600

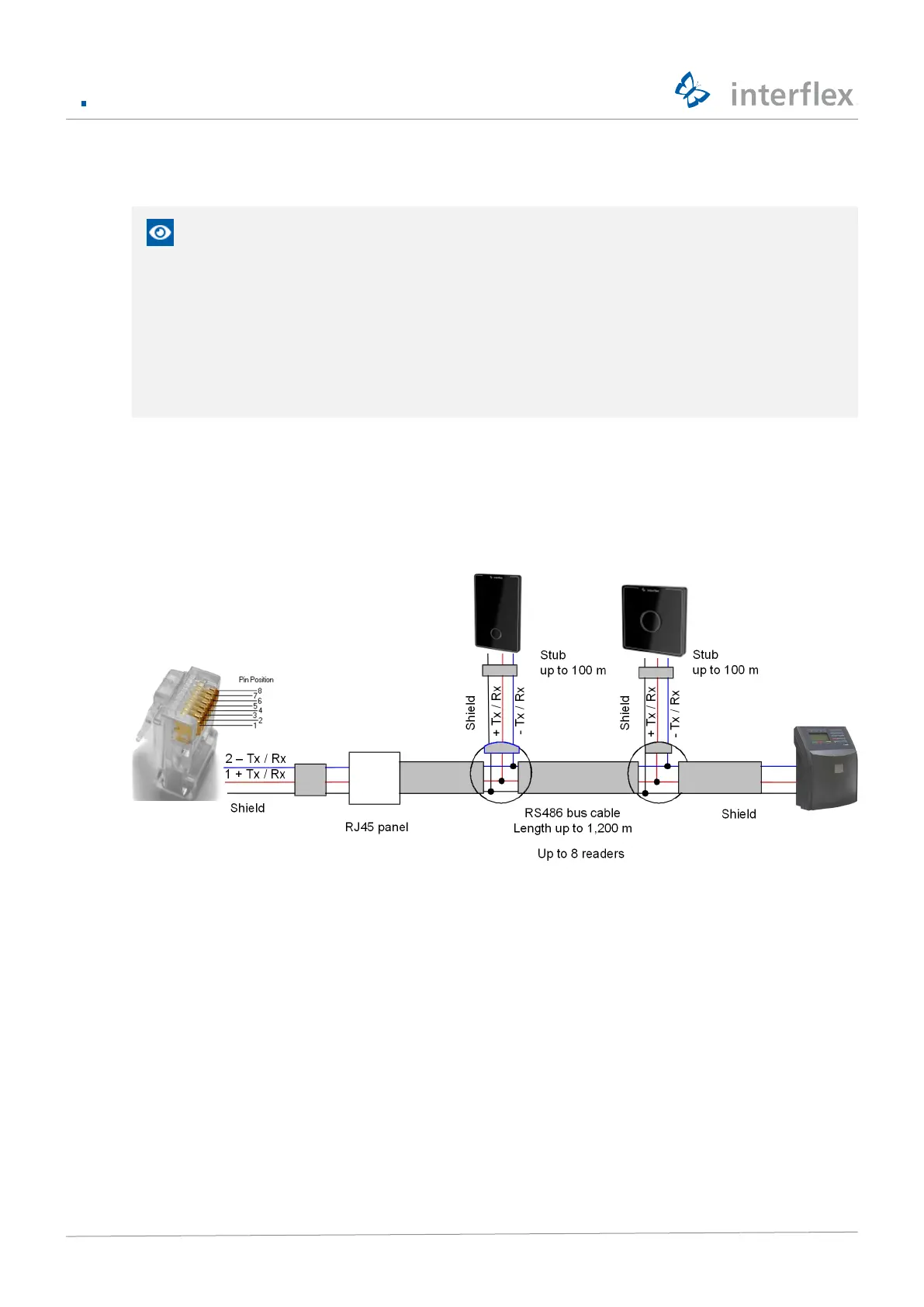

Bus data cables with RJ45 connectors
For trouble-free operation, please observe the following:
n
Ground the line shields of the data cables via the female RJ45 connector.
n
Only use shielded cables and shielded connection components, such as male Hirose connectors.
Bus data cable to screw terminal 600
n
Use shield terminals for grounding the cable shields.
n
Secure the cable with a strain relief.
