2 System overview
© 2021 Interflex Datensysteme GmbH IF-4070 Controller 6

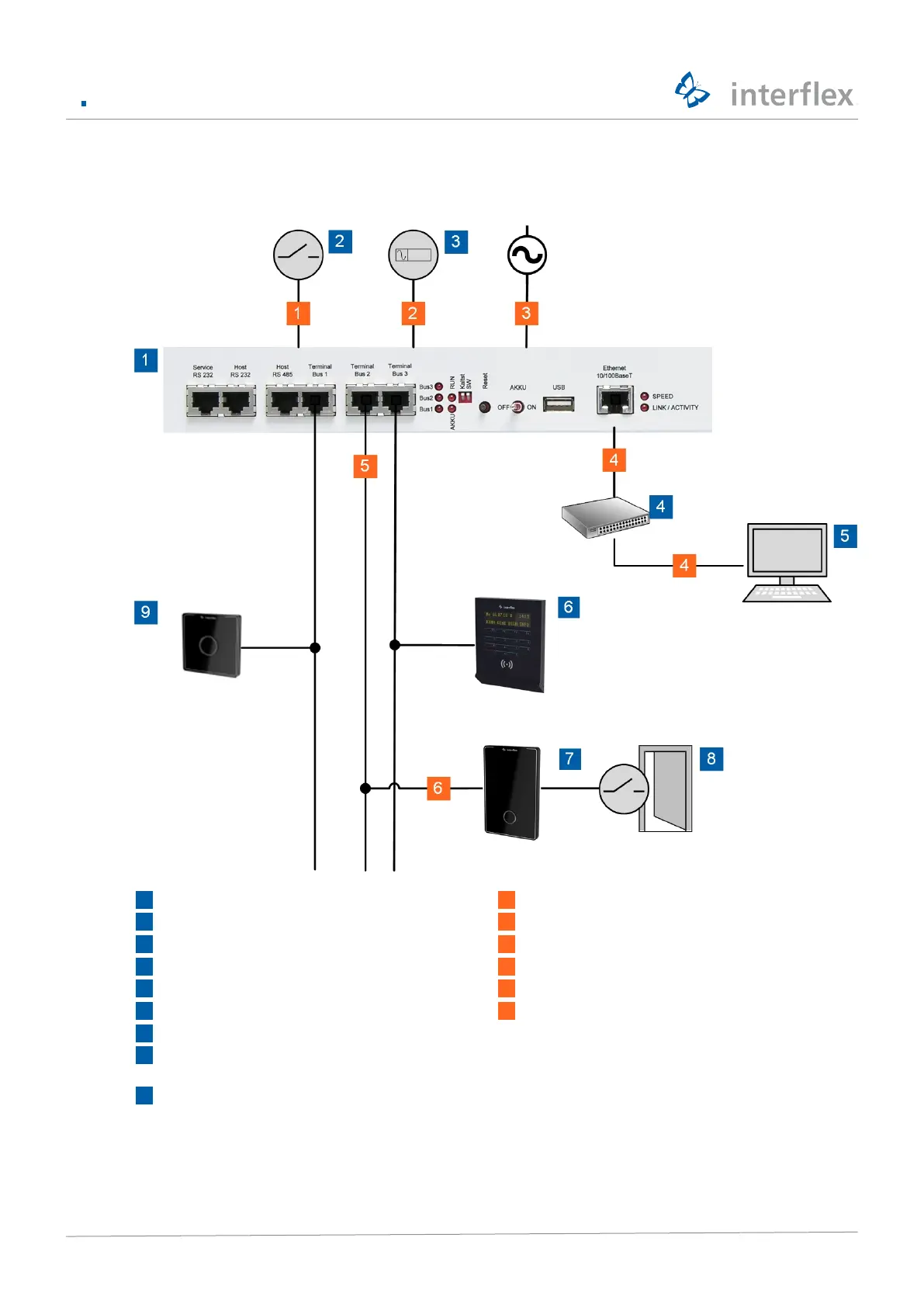

2 System overview
1 Controller 1 Cable to floating status contacts
2 Inputs for floating status contacts 2 Control cable
3 Relay with 30V, 2A switch contacts 3 Power cable (not applicable for PoE)
4 Switch or PoE device 4 Ethernet without PoE
5 Host system 5 Terminal bus cable
6 Readers for recording time data 6 RS485 branch cable from reader to bus cable
7 Reader for access control
8 Locking device with access control actuator
and status contact
9 Readers for recording time data
