ALLEN & HEATH CQ-18T User Manual

 106
User Guide V1.1.0 Issue 1

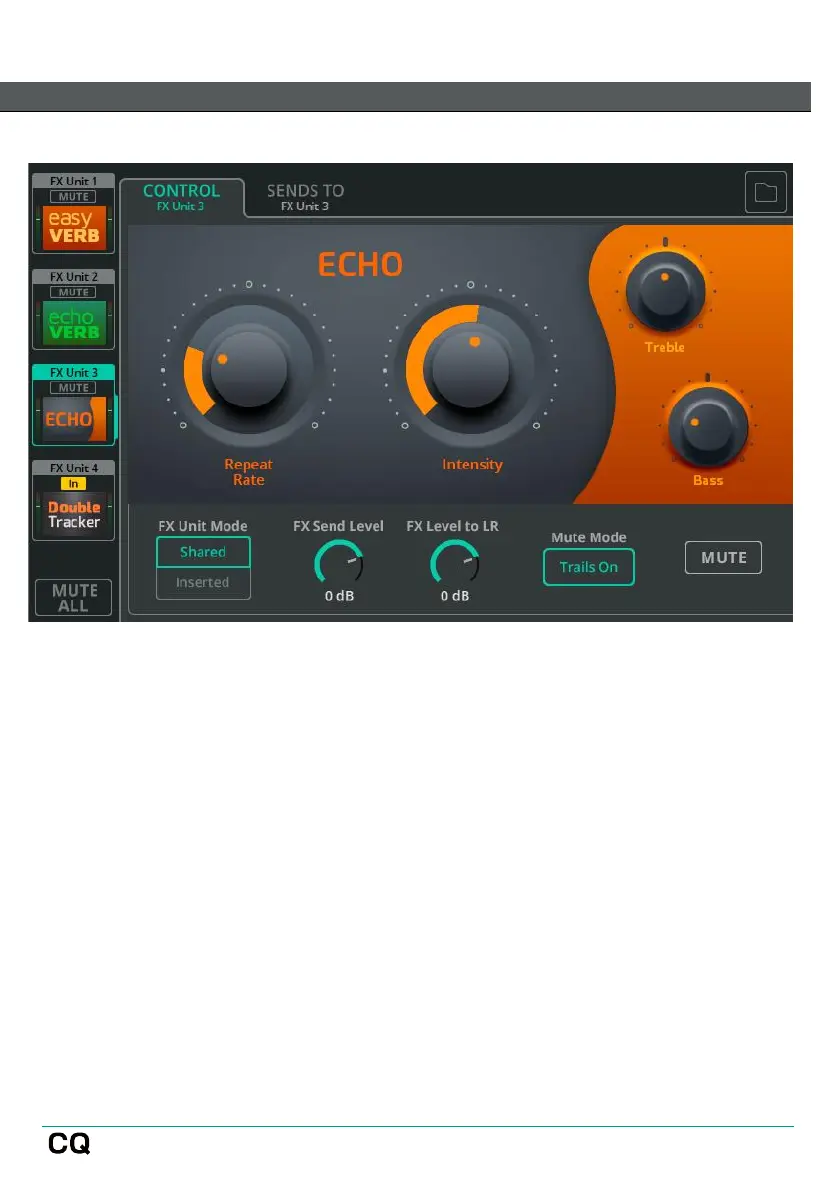

FX Model – Echo
Echo is a simple to use delay unit with a natural tone.
Repeat Rate – Adjust the speed of the repeats.
Intensity – Adjust the level of the repeats feeding back into the echo.
Treble – Cut or boost the level of higher frequencies.
Bass – Cut or boost the level of lower frequencies.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
