ALLEN & HEATH CQ-18T User Manual

 99
User Guide V1.1.0 Issue 1

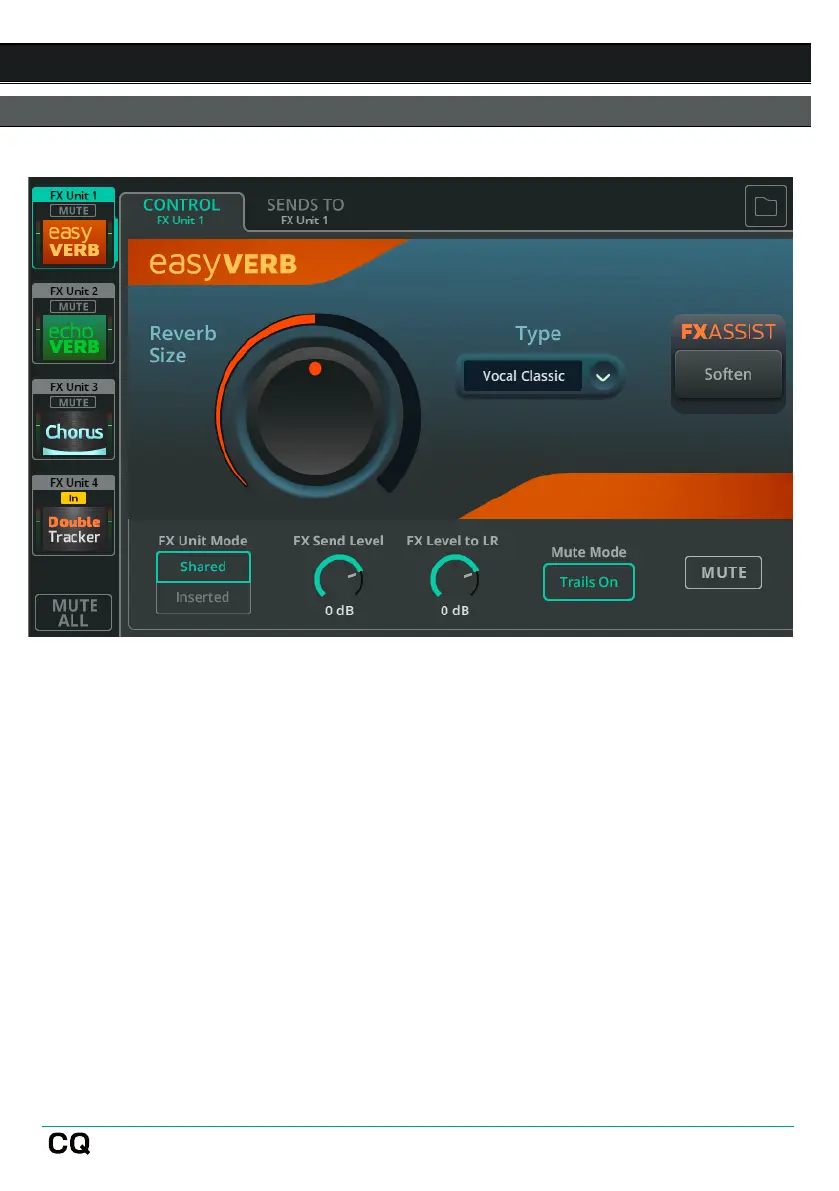

11. FX
CONTROL (Shared)
Select an FX unit from the left-hand side to adjust. FX model controls are shown in
the main section of the screen.
Library – Use the Library button in the top right to recall different FX models into
the selected FX Unit, or to store/recall user presets.
MUTE ALL – Mute all FX Units currently in Shared mode. If all Shared units are
currently muted, MUTE ALL can be used to unmute all. MUTE ALL does not affect
Inserted FX.
 A Soft Key or Footswitch can be assigned to MUTE ALL to make it easy to mute FX in
between songs.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
