Sends to FX

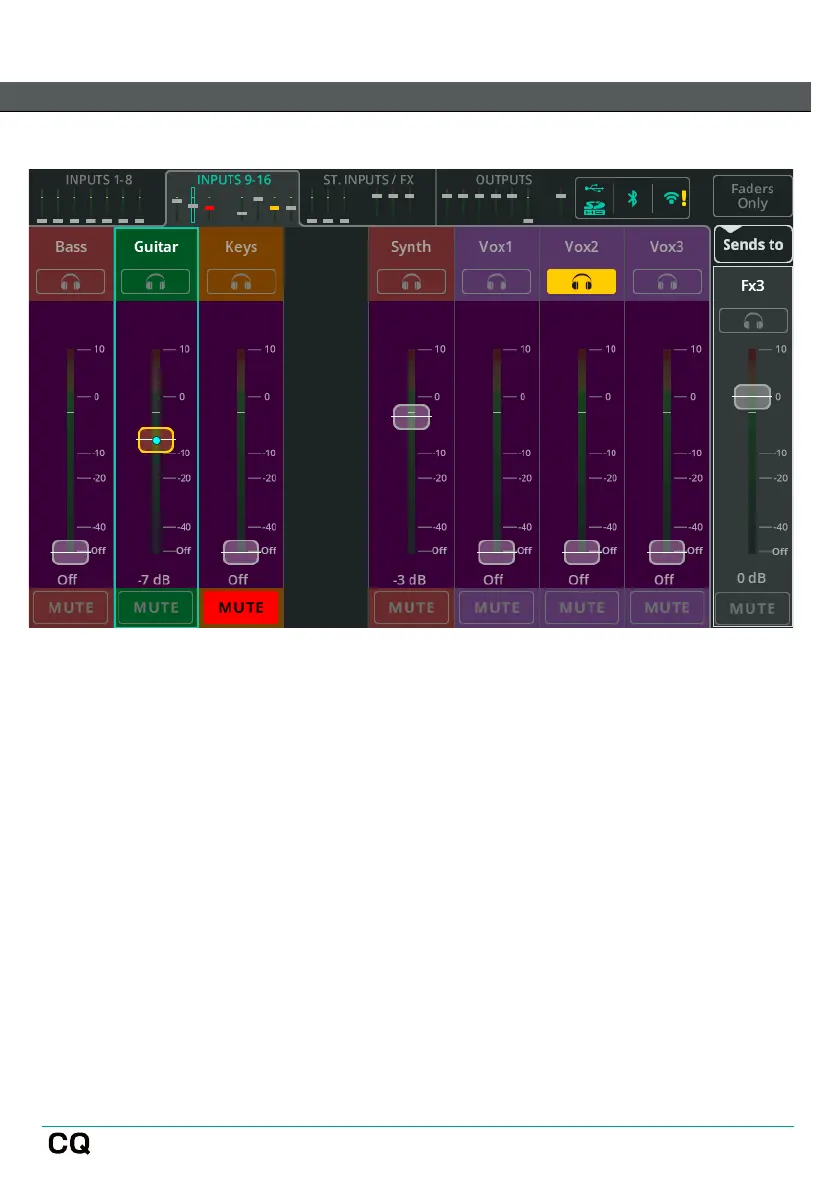

Touch Sends to and select an FX to show all send levels to that FX unit on the
fader for each input and FX channel.
When Sends to an FX are selected, the fader background is coloured purple to
indicate that fader positions are showing the ‘Sends to’ an FX Unit.
 Only FX units in shared mode can be affected by the ‘Send to’ levels set here.
 Outputs cannot be sent to other Outputs so their fader always controls their output
level.
The RHS fader is used to control the overall send level to the FX unit. This fader is
duplicated by the FX Send Level rotary control in the FX screen when the unit is in
shared mode.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
