ALLEN & HEATH CQ-18T User Manual

 71
User Guide V1.1.0 Issue 1

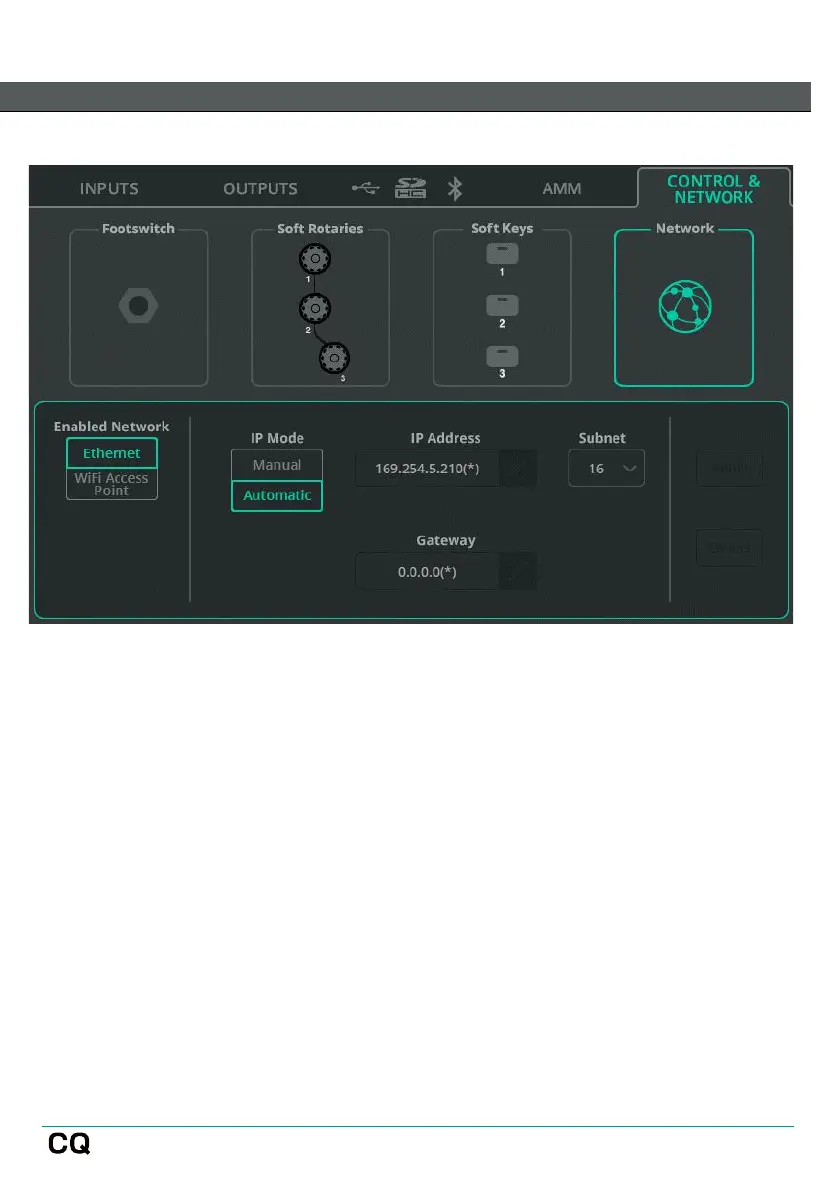

CONTROL & NETWORK / Network (Ethernet)
Enabled Network – Select Ethernet for wired connection through the Network
port. Select Wi-Fi Access Point for wireless connection using the integrated
access point of the unit (CQ-18T, CQ-20B).
IP Mode – It is recommended that IP Mode is left set to Automatic, to allow address
assignment via DHCP when possible. Setting IP Mode to Manual should only be
required where a DHCP host is not available, or for setups where an IT or
networking team needs to allow access and wants the unit to always have the
same address.
 When IP Mode is set to Automatic and no IP address is provided to the CQ, it will auto
assign itself an address. This is noted by a (*) appearing after the address in the
network config and system information screens.
 If IP Mode is set to Manual and the change is applied before editing the address,
gateway and subnet, the defaults can be found in the Default Network Settings
section of this guide.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
