ALLEN & HEATH CQ-18T User Manual

 124
User Guide V1.1.0 Issue 1

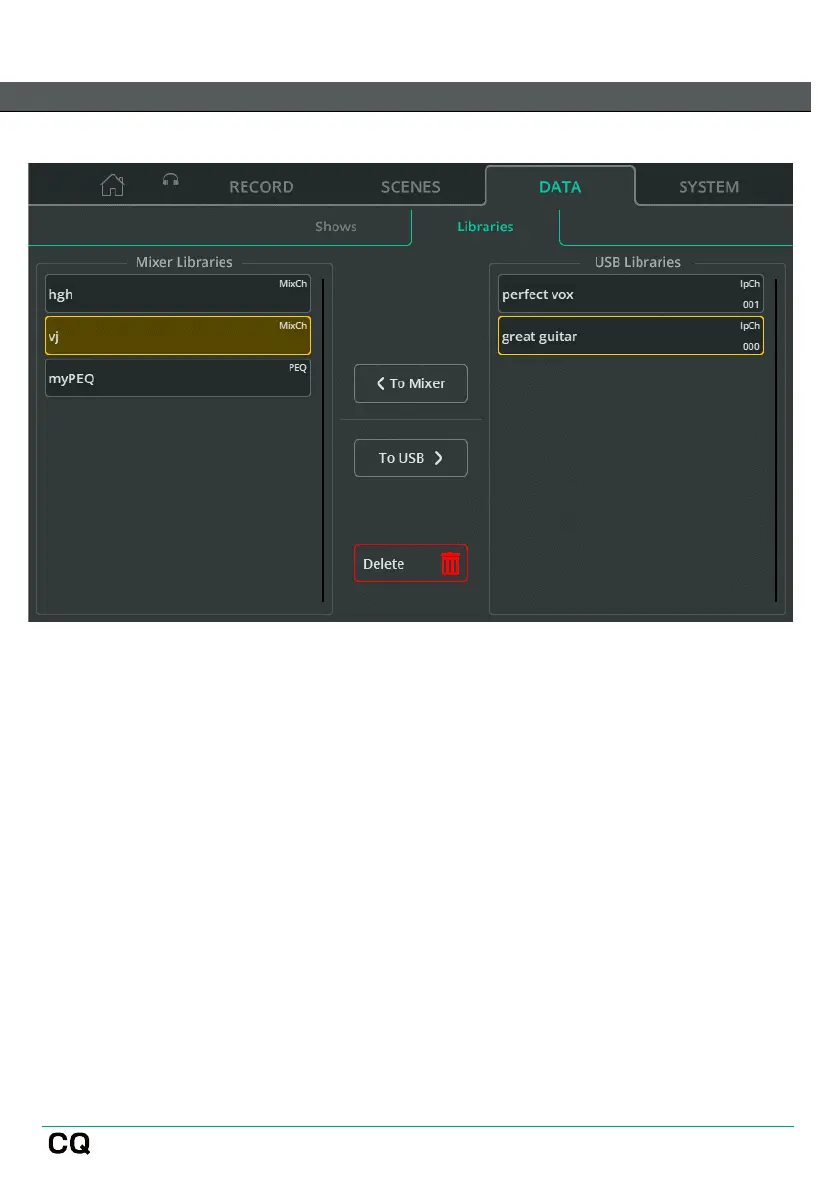

DATA / Libraries
The CQ can have up to 128 User libraries stored at any time. These are included
when storing or recalling an entire Show, but can also be stored or recalled
individually using a USB drive.
‘Mixer Libraries’ lists all the Libraries in the Show currently loaded on the CQ. ‘USB
Libraries’ lists all the Libraries stored in the AHCQ\LIBRARY folder of the
connected USB drive.
To Mixer – Copy the Library selected (outlined yellow) in the USB Libraries list to
Mixer Libraries.
To USB – Copy the Library selected (outlined yellow) in the Mixer Libraries list to
USB Libraries.
Delete – Delete the Library that was last selected (highlighted yellow)

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
