ALLEN & HEATH CQ-18T User Manual

 122
User Guide V1.1.0 Issue 1

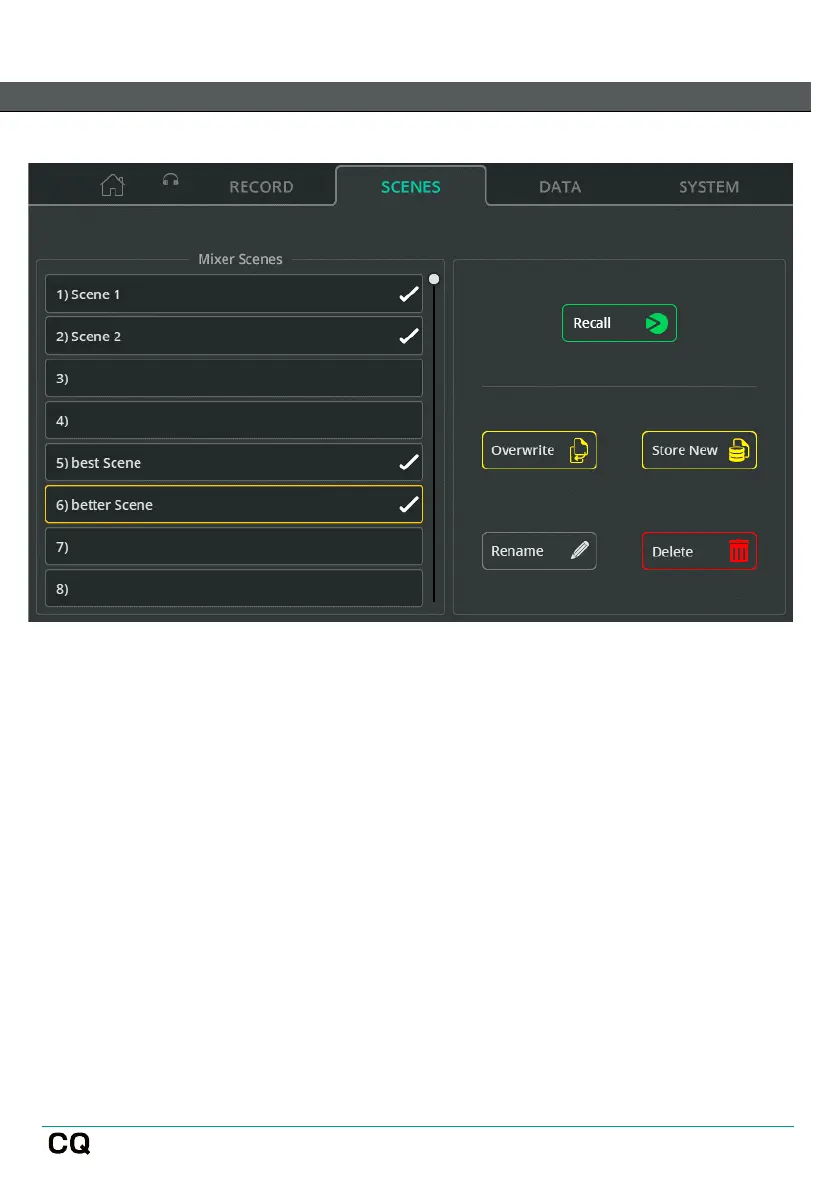

SCENES
Scenes are used to store and recall the mix state of the CQ including all processing
and send levels. 100 scene slots are available.
 More information can be found in the Shows, Scenes and Libraries section.
Recall – Replace the current state with the stored state.
Overwrite – Store the current state in the selected scene slot (over the top of a
previously stored state).
Store New – Store the current state in the selected scene slot.
Rename – Edit the name of the selected Scene.
Delete – Touch to delete the selected scene.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
