9. PROCESSING
INPUTS (bank view)

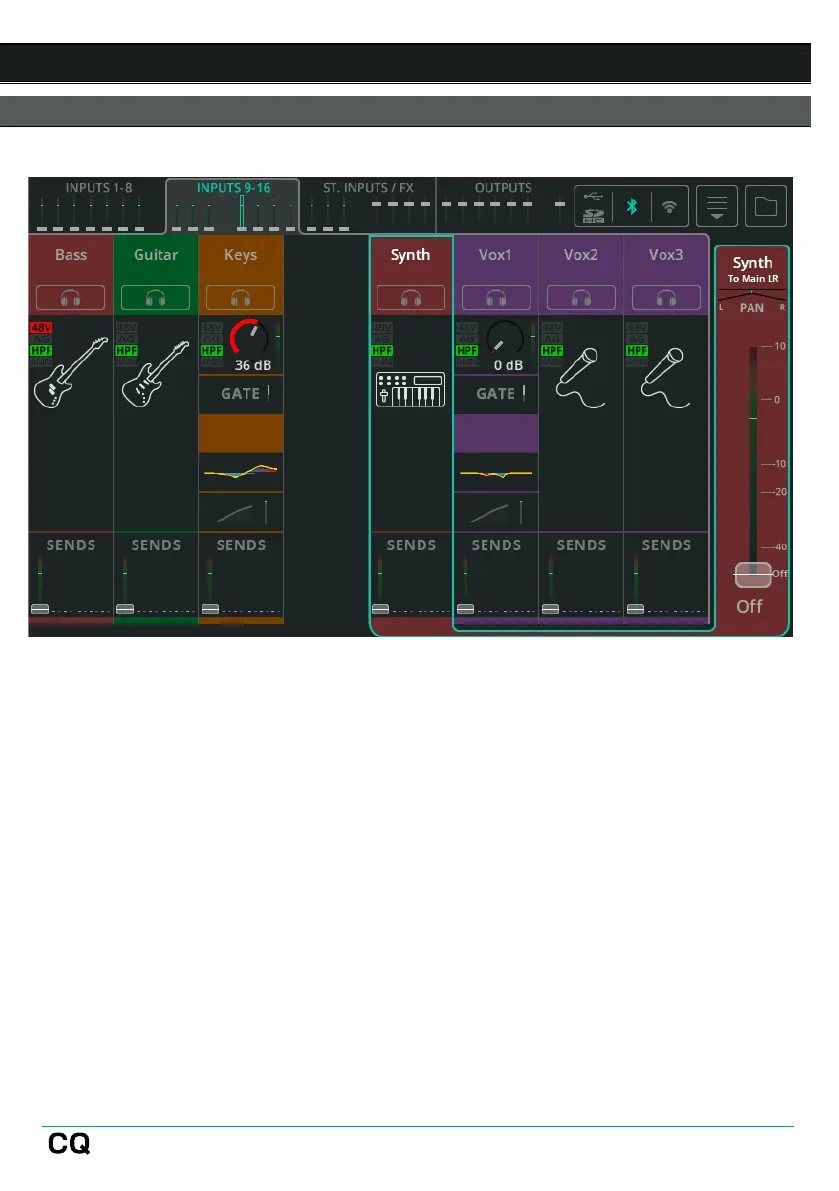

The bank view displays one of four banks at a time, each showing up to eight input,
FX or output channels. Switch between banks using the tabs with mini faders and
meters at the top (when using a CQ-12T or CQ-18T touchscreen) or bottom left
(when using the CQ-MixPad app).
The tabs display the main fader for each channel. Either input channel sends to the
Main LR, the Overall FX send level or overall Output levels. If a channel is muted, the
fader cap is coloured red. If Listen is active on a channel, the fader cap is coloured
yellow.
Also displayed at the top of the screen is indication of connected USB and SD
storage, Bluetooth on/off, Wi-Fi on/off (CQ-18T, CQ-20B).
At the top right of the screen are the Copy, Paste, Reset, Quick Fire and Convert
menu and the Library button.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
