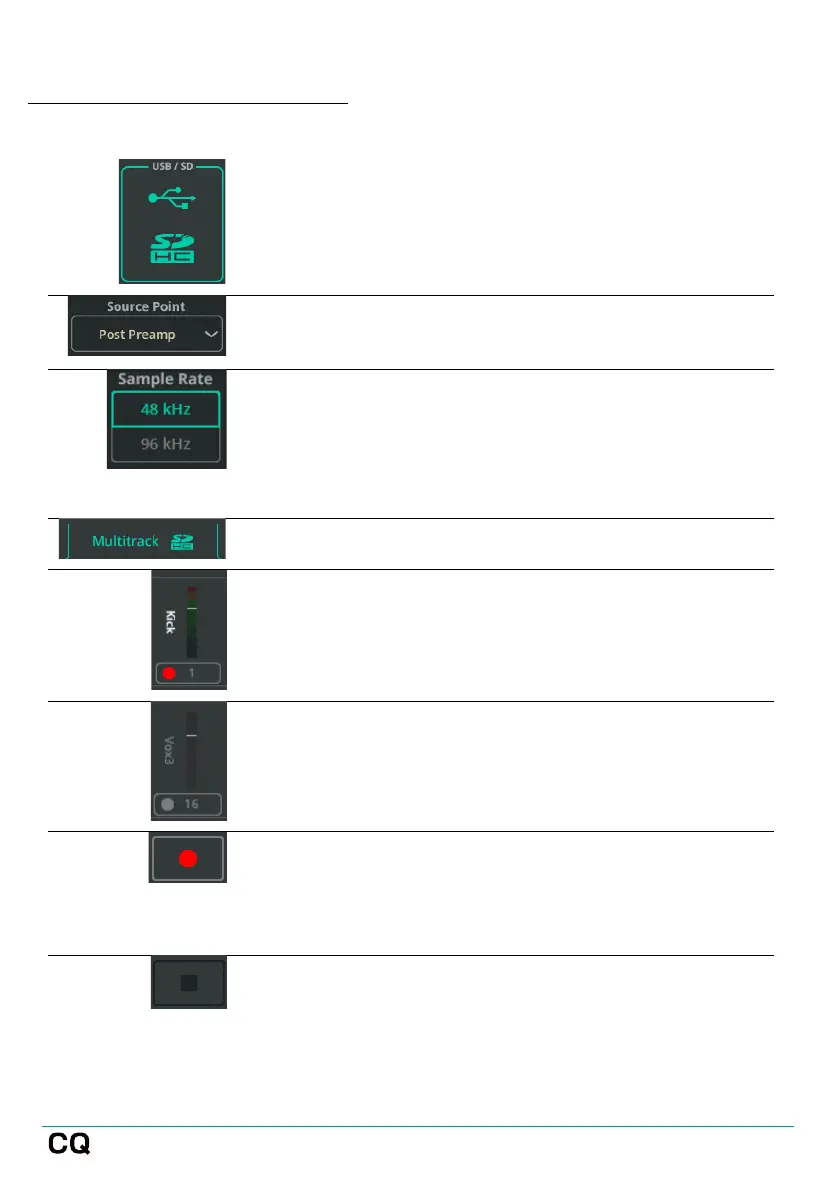

To record Multitrack on an SD Card
1.
Go to CONFIG / USB/SD/BLUETOOTH / USB/SD
to check and adjust settings.
2.
Select a point in the signal path of an Input channel
to record from using Source Point
3.
Select the Sample Rate. 48kHz allows for longer
recording time and more channels to be recorded at
a lower quality. 96kHz allows a maximum of 16
channels to be recorded for a shorter time but at
the highest quality.
4.
Go to HOME / RECORD / MULTITRACK
5.
Arm each channel to be recorded using the Arm
button below each channel meter. Armed channels
are indicated with a red record symbol.
6.
Ensure channels that are not be recorded show a
grey record symbol, showing they are unarmed.
7.
Use the Recording button in the transport bar to
start recording to the SD card. A new folder will be
created with empty files then recording will begin
automatically.
8.
Press the Stop button to finish the recording. When
each recording is stopped, allow time for the
recording to be finalised and the files stored
correctly.

ALLEN & HEATH CQ-18T Specifications

General

Frequency range	20 - 20000 Hz
Channels quantity	18 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Output impedance	75 Ω
Built-in display	Yes
Compatible memory cards	SD, SDHC
Master (XLR) out	2
Number of microphone inputs	18
Video capability	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	346 mm
Height	89 mm
Weight	3000 g
Package depth	310 mm
Package width	430 mm
Package height	200 mm
Package weight	3800 g
