ALLEN & HEATH ZED R16 Firewire User Manual

Allen & Heath 14 ZED-R16 User Guide

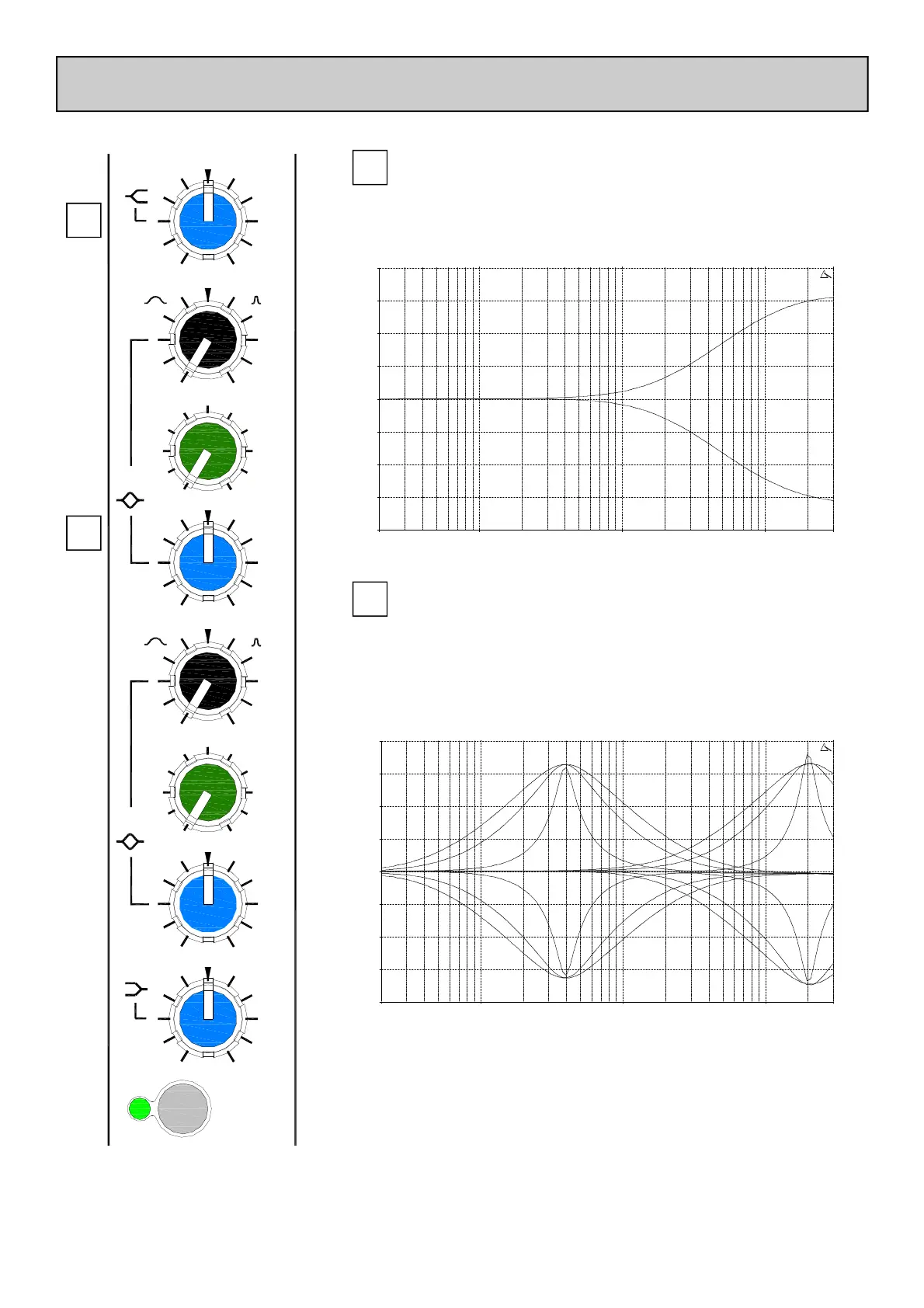

MONO INPUT CHANNEL
HMF EQ
The HMF (High Mid Frequency) equaliser affects the upper middle
of the audible frequency range. The frequency graduations on the
sweep control are the centre frequencies of the EQ. The Q factor
is the width of the equaliser curve and is variable from a wide 0.8 to
a sharp 6.
HF EQ
The HF (High Frequency) equaliser affects the frequency response
of the higher audible frequencies. The corner frequency of 12kHz is
around 3dB from the maximum cut or boost of the circuit.
20.00 Hz 100.00 1000.00 10000.00 30000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
ZED-R 16 HF EQ
-15 +15
HM
0.8
6
2k
700
400Hz
1k
6k
18k
4k
-15 +15
Q
F
G
LM
0.8
6
120
30
18Hz
60
600
1k
300
-15 +15
Q
F
G
-15
LF
+15
80Hz
HF
12k
EQ IN
1
1
20.00 Hz 100.00 1000.00 10000.00 30000.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
dBr
ZED-R 16 HMF EQ
7
8
8
7
