Allen & Heath 47 ZED-R16 User Guide

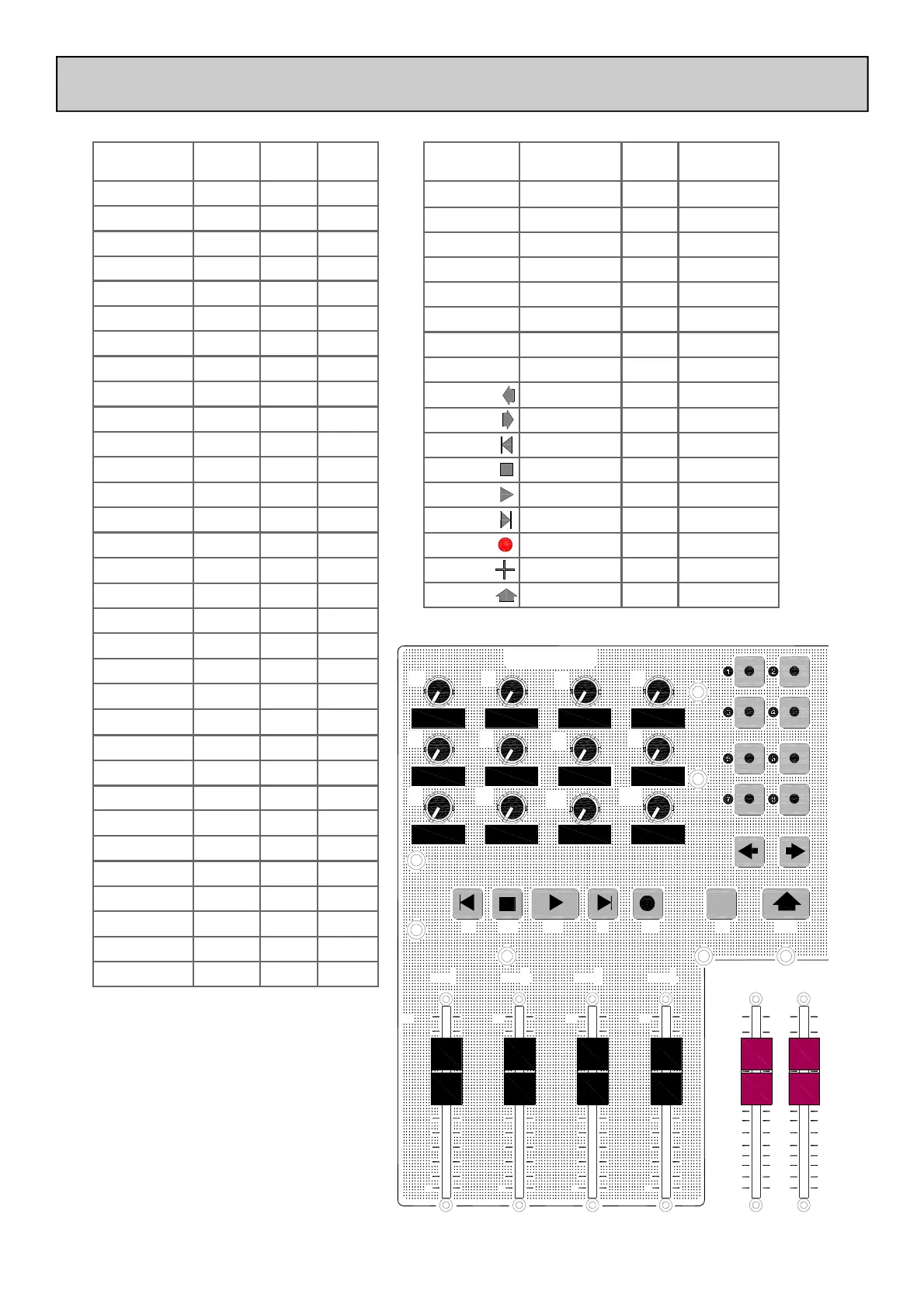

ZED-R MIDI IMPLEMENTATION
MIDI
CONTROLLER
MESSAGE
TYPE
DATA 1 DATA 2
FADER CH1 CC 01 0-127
FADER CH2 CC 02 0-127
FADER CH3 CC 03 0-127
FADER CH4 CC 04 0-127
FADER CH5
CC
05 0-127
FADER CH6 CC 06 0-127
FADER CH7
CC
07 0-127
FADER CH8
CC
08 0-127
FADER CH9
CC
09 0-127
FADER CH10
CC
0A 0-127
FADER CH11
CC
0B 0-127
FADER CH12
CC
0C 0-127
FADER CH13
CC
0D 0-127
FADER CH14
CC
0E 0-127
FADER CH15
CC
0F 0-127
FADER CH16
CC
10 0-127
FADER MIDI 1
CC
11 0-127
FADER MIDI 2
CC
12 0-127
FADER MIDI 3
CC
13 0-127
FADER MIDI 4
CC
14 0-127
ROTARY 1
CC
65 0-127
ROTARY 2
CC
66 0-127
ROTARY 3
CC
67 0-127
ROTARY 4
CC
68 0-127
ROTARY 5 CC 69 0-127
ROTARY 6
CC
6A 0-127
ROTARY 7
CC
6B 0-127
ROTARY 8
CC
6C 0-127
ROTARY 9
CC
6D 0-127
ROTARY 10
CC
6E 0-127
ROTARY 11
CC
6F 0-127
ROTARY 12 CC 70 0-127
MIDI
CONTROLLER
MESSAGE TYPE DATA 1 DATA 2
SWITCH 1
NOTE ON/OFF
01 7F/00
SWITCH 2 NOTE ON/OFF 02 7F/00
SWITCH 3 NOTE ON/OFF 03 7F/00
SWITCH 4 NOTE ON/OFF 04 7F/00
SWITCH 5
NOTE ON/OFF
05 7F/00
SWITCH 6 NOTE ON/OFF 06 7F/00
SWITCH 7
NOTE ON/OFF
07 7F/00
SWITCH 8
NOTE ON/OFF
08 7F/00
SWITCH 9
NOTE ON/OFF
09 7F/00 *
SWITCH 10 NOTE ON/OFF 0A 7F/00 *
SWITCH 11 MMC REWIND
SWITCH 12 MMC STOP
SWITCH 13
MMC
PLAY
SWITCH 14
MMC
FFW
SWITCH 15
MMC
REC
SWITCH 16 NOTE ON/OFF 10 7F/00
SWITCH 17 NOTE ON/OFF 11 7F/00
* = Resends command if held down
RW STOP PLAY FF REC SHIFTINC
O
127
O
127
O
127
O
127
5
5
0
OO
10
10
5
5
0
OO
10
10
L R1 2 3 4
MIDI control
MIDI MIDI MIDI MIDI
+
1 2
3
4
5 6
7
8
9
10
11
12
