10 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect
Publication 1732E-IN010C-EN-E - June 2013

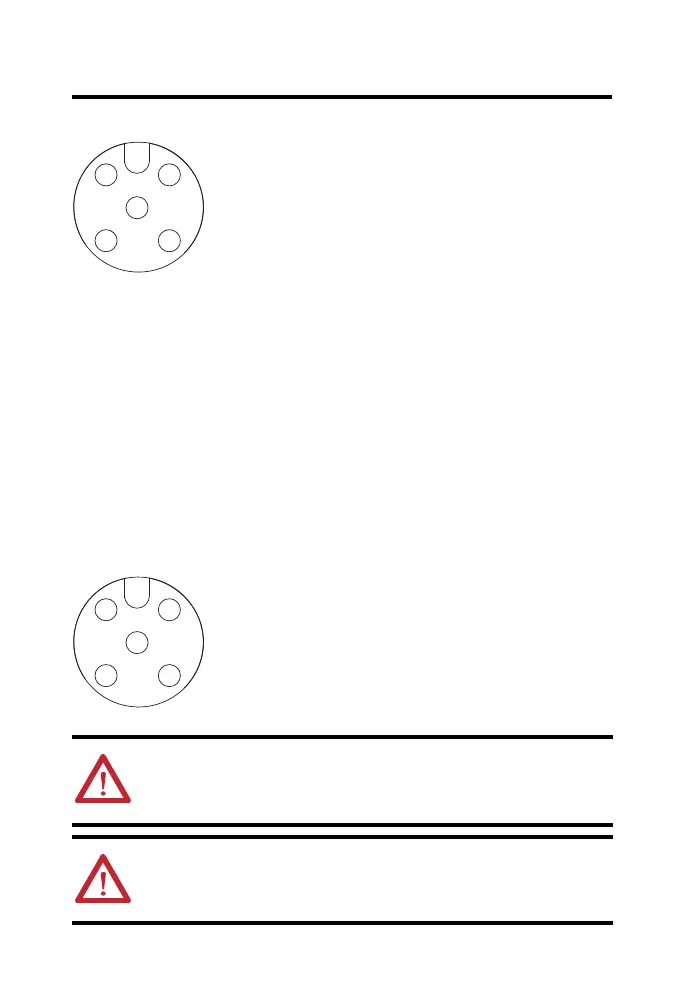

Micro-style 5-Pin Output Female Connector
Self-configuring Modules
The 1732E-16CFGM12QCR, 1732E-16CFGM12P5QCR,
1732E-16CFGM12QCWR, and 1732E-16CFGM12P5QCWR self-configuring
modules contain both input and output functionality.
• If an I/O point is to be an output, dedicate that point as an output with a wired
load and energize it through a control program.
• Energized outputs show an associated active input that can be used as a feedback
mechanism to make certain that the output is on.
• If an I/O point is to be an input, wire the input device as normal and leave the
associated output de-energized at all times.
Micro-style 5-Pin Selectable Point Connector
ATTENTION: Make sure all connectors and caps are securely tightened to
properly seal the connections against leaks and maintain IP enclosure and
NEMA type requirements.
ATTENTION: To comply with UL restrictions, this equipment must be powered
from a source compliant with the following: Limited Voltage
1 2
4
5
3
For 1732E-12X4M12QCDR and 1732E-12X4M12P5QCDR only
(View into connector)
Pin 1 Not used
Pin 2 Output B
Pin 3 Return
Pin 4 Output A
Pin 5 PE
44807
1 2
4
5
3
(View into connector)
Pin 1 Sensor source voltage
Pin 2 Input or Output B
Pin 3 Return
Pin 4 Input or Output A
Pin 5 PE
44807
