Auxiliary Power Connector
The 1732E-12X4M12QCDR, 1732E-16CFGM12QCR, and
1732E-16CFGM12QCWR modules use 4-pin auxiliary power connections. Attach the
mini-style 4-pin connector to the mini-style 4-pin receptacle as shown below.
Mini-style 4-Pin Receptacle
The 1732E-12X4M12P5QCDR, 1732E-16CFGM12P5QCR, and
1732E-16CFGM12P5QCWR modules use 5-pin auxiliary power connections. Attach
the mini-style 5-pin connector to the mini-style 5-pin receptacle as shown below.
Mini-style 5-Pin Receptacle
The ground for both module power and output power are shared.
ATTENTION: This equipment is considered Group 1, Class A industrial
equipment according to IEC/CISPR 11. Without appropriate precautions, there
may be difficulties with electromagnetic compatibility in residential and other
environments due to conducted and radiated disturbance.

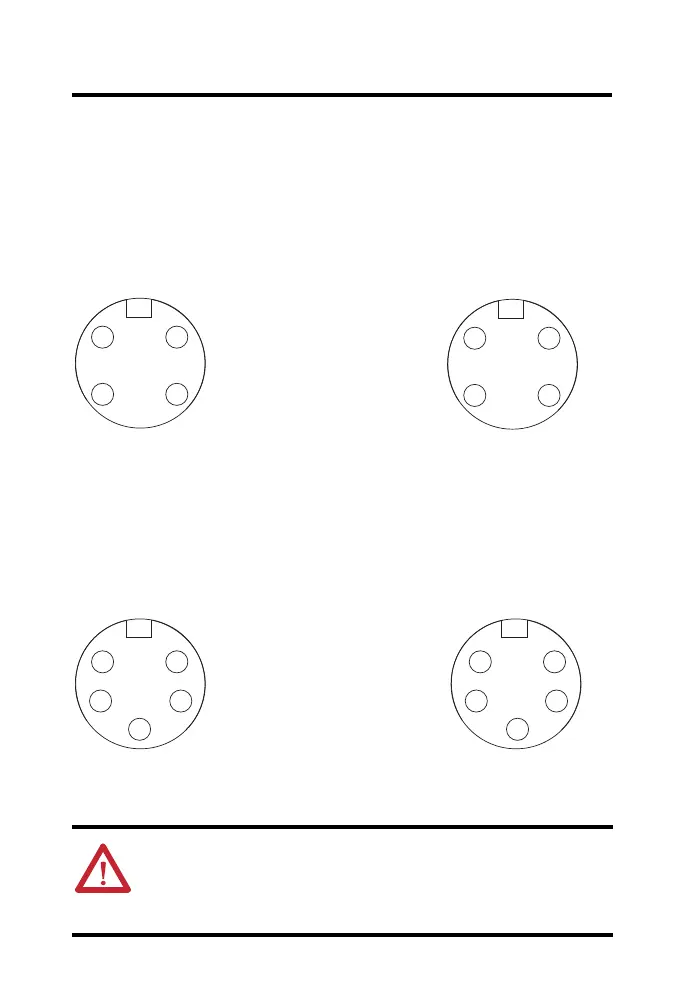

44809
(View into receptacle)
Pin 1 Output power+
Pin 2 Sensor/MDL power+
Pin 3 Sensor/MDL power-
Pin 4 Output power-
42
31
45677
Male Input Female Output
46199
(View into receptacle)
Pin 1 Output power-
Pin 2 Sensor/MDL power-
Pin 3 Protective Earth
Pin 4 Sensor/MDL power+
Pin 5 Output power+
4
2
5
1
3
46200
Male Input
Female Output
