8 1732E ArmorBlock 2-Port EtherNet/IP Modules with QuickConnect
Publication 1732E-IN010C-EN-E - June 2013

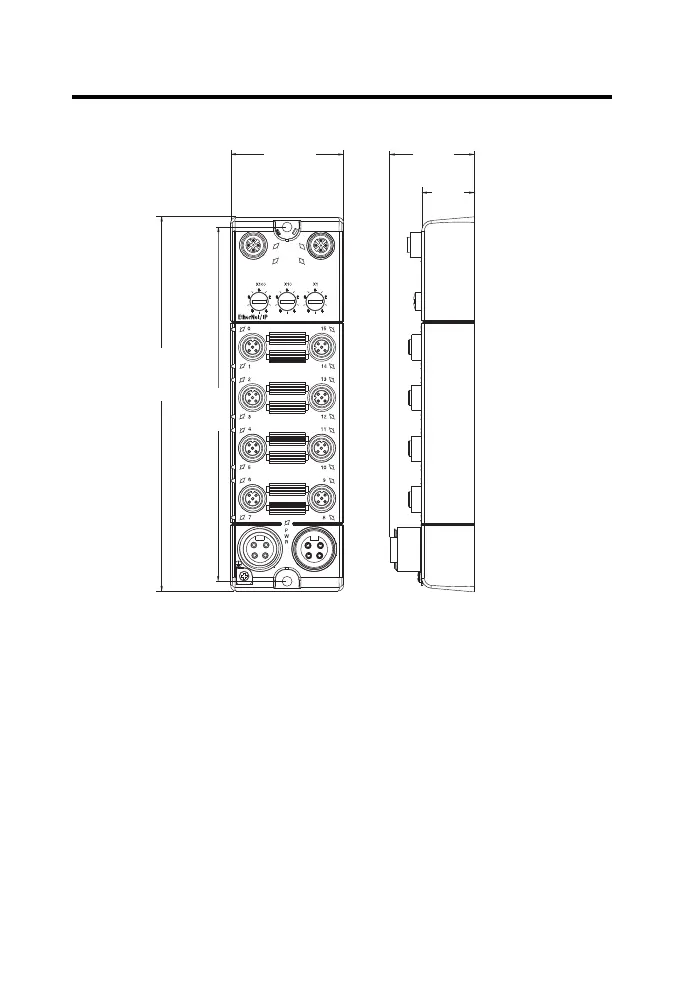

Module Dimensions
Mount the Module in High Vibration Areas
If you mount the module in an area that is subject to shock or vibration, we recommend
you use a flat and a lock washer to mount the module. Mount the flat and the lock washer
as shown in the mounting illustration. Torque the mounting screws to 1.13 Nm (10 in-lb).
LINK 1 LINK 2
MOD
NET
AUX POWER
PORT 1 PORT 2
45760
200 mm
(2.38 in.)
45 mm
28 mm
(7.87 in.)
189.6 mm
(7.46 in.)
60.4 mm
(1.77 in.)
(1.1 in.)
Front view Side view
