10 POINT I/O 4 Channel IO-Link Master Module
Publication 1734-IN043A-EN-E - September 2015
3. If an I/O module is installed, snap the RTB handle into place on the module.
Remove a Mounting Base
To remove a mounting base, you must remove any installed module and the module
installed in the base to the right. Remove the removable terminal block, if wired.
1. Unlatch the RTB handle on the I/O module.
2. Pull on the RTB handle to remove the removable terminal block.
3. Press on the module lock on the top of the module.
4. Pull on the I/O module to remove from the base.
5. Repeat steps 1, 2, 3 and 4 for the module to the right.
6. Use a small bladed screwdriver to rotate the orange base locking screw to a vertical
position. This releases the locking mechanism.
7. Lift straight up to remove.
24V DC
SIO
IO
LINK
Module
Status
Network
Status
1734-4IOL
0
0
1
1
2
2
3
3
NODE:

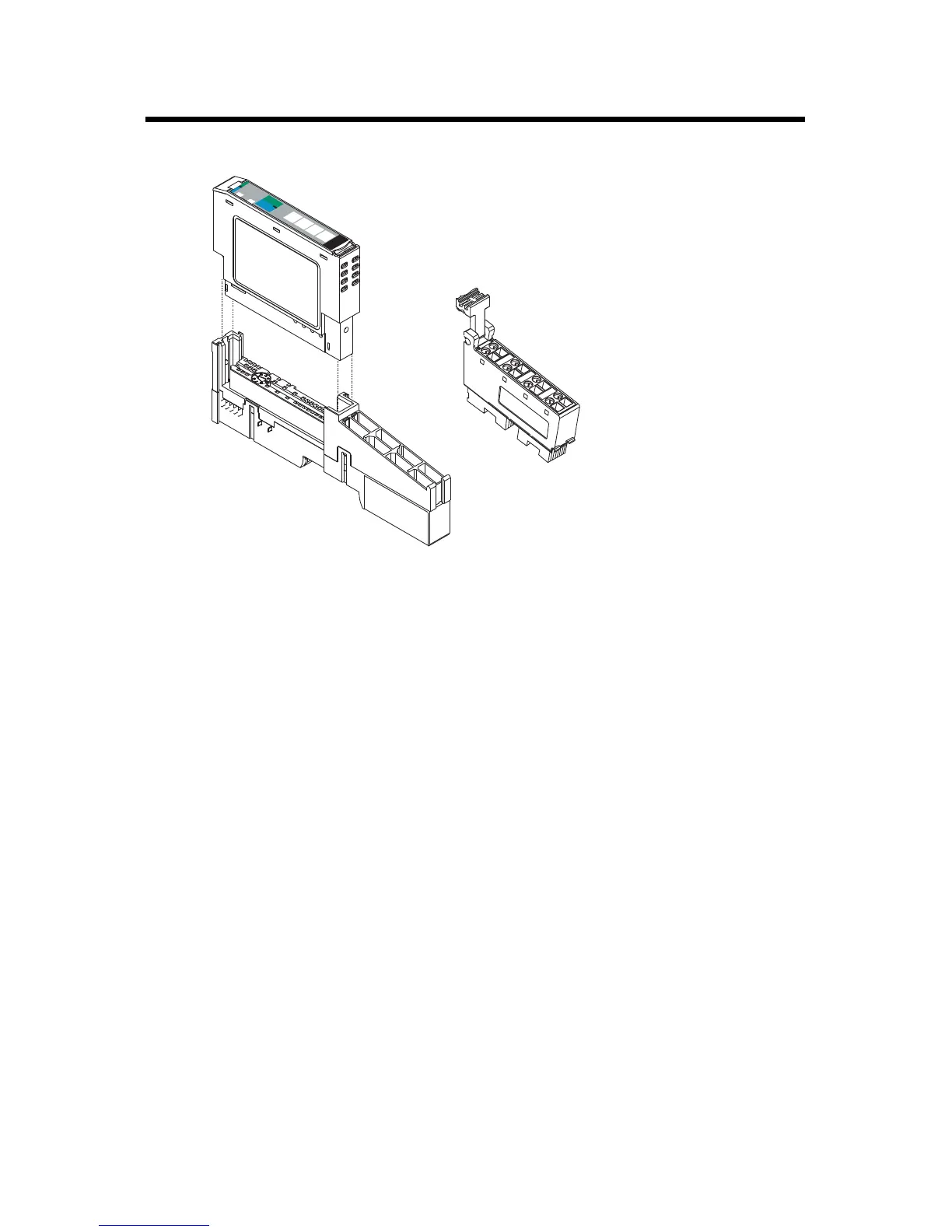

Insert the module straight
down into the mounting base.
Hook the RTB end into
the mounting base
end and rotate until it
locks into place.
44012
