POINT I/O 4 Channel IO-Link Master Module 7
Publication 1734-IN043A-EN-E - September 2015
Install the Mounting Base
To install the mounting base on the DIN rail, proceed as follows:
1. Position the mounting base vertically above the installed units (adapter, power
supply or existing module).
2. Slide the mounting base down allowing the interlocking side pieces to engage the
adjacent module or adapter.
3. Press firmly to seat the mounting base on the DIN rail. The mounting base snaps
into place. Be sure that the orange DIN rail locking screw is in the horizontal
position and that it has engaged the DIN rail.
ATTENTION: Do not discard the end cap. Use this end cap to cover the exposed
interconnections on the last mounting base on the DIN rail. Failure to do so
could result in equipment damage or injury from electric shock.

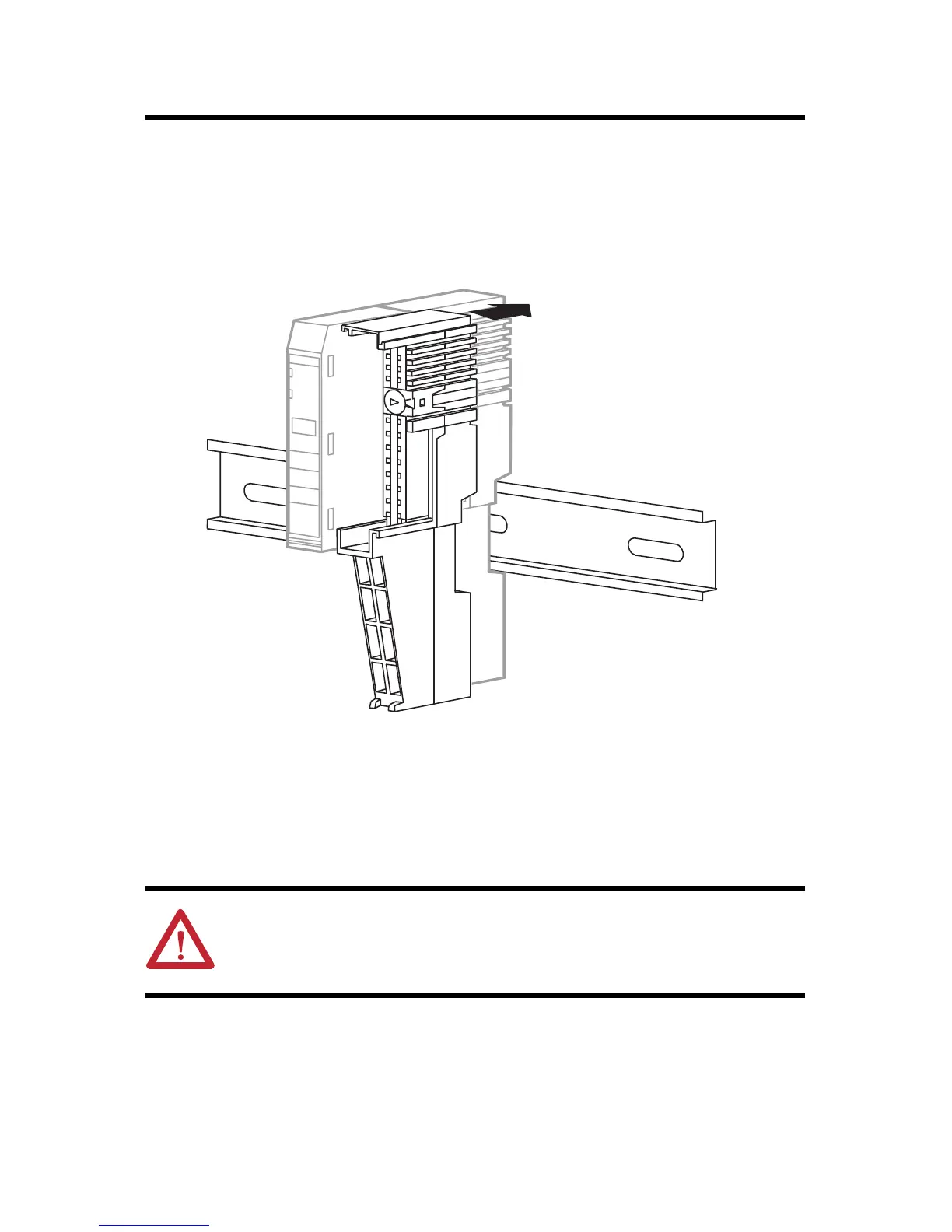

Slide the mounting base until the
interlocking side pieces engage the
adjacent module or adapter.
46014
