POINT I/O 4 Channel IO-Link Master Module 5
Publication 1734-IN043A-EN-E - September 2015
About the Module
The POINT I/O 4 Channel IO-Link Master Module provides four channels that can be
individually configured as IO-Link master or as a standard digital I/O module. The
IO-Link channel master module can be configured to fit any IO-Link and/or discrete
application.
In IO-Link mode, the module supports four channels for IO-Link master communication
with IO-Link compatible devices. In standard digital I/O mode, the module supports four
channels of digital input or output. Standard digital input channels support IEC61131-2
type 1 input. Channels can also be disabled if not in use.
You must use this module with the 1734-AENT or 1734-AENTR, Series B EtherNet/IP
adapters, firmware version 5.012 or later, and RSLogix™ 5000/Studio 5000® software,
version 20 or later. Use this diagram to identify the external features of the module.

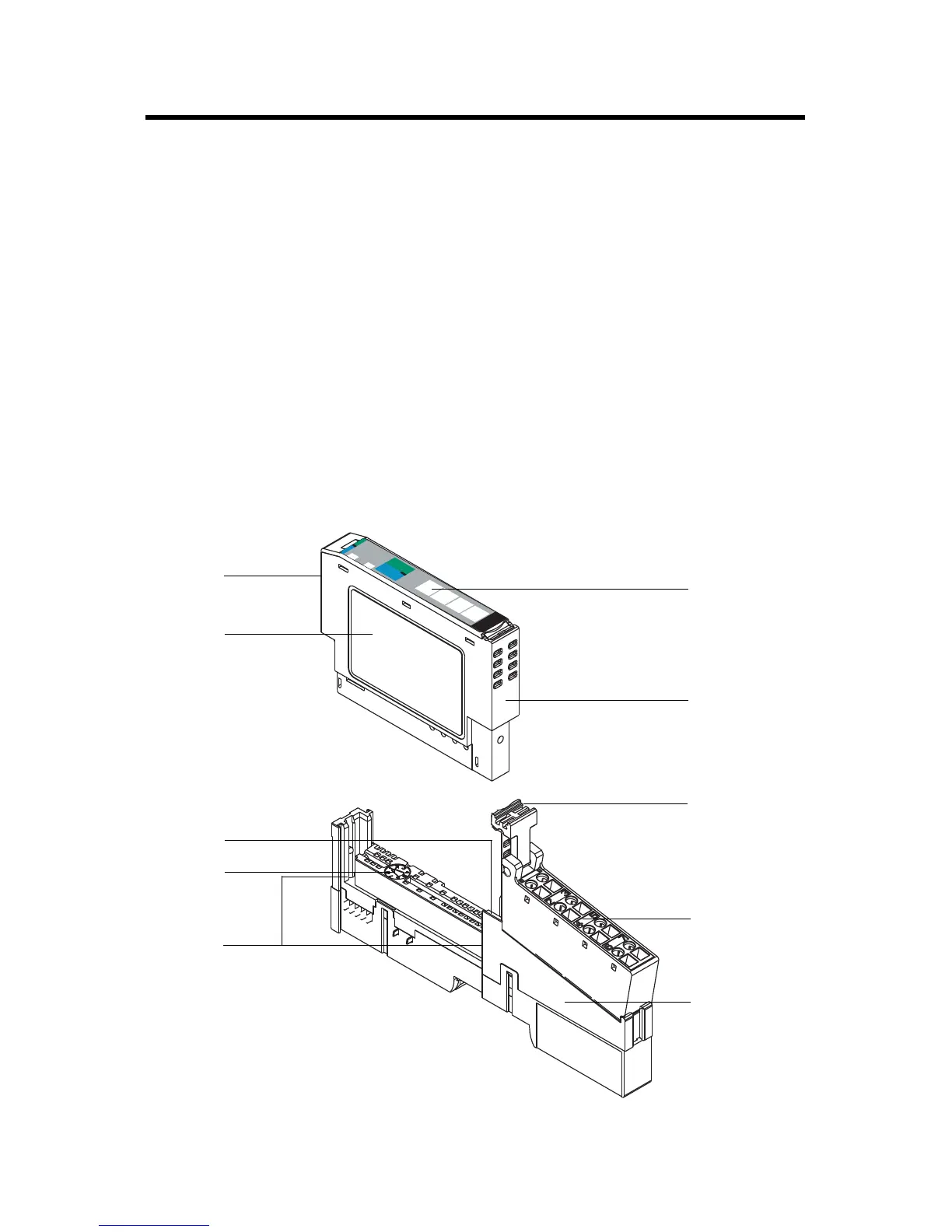

POINT I/O 4 Channel IO-Link Master Module with 1734-TB, 1734-TBS,
1734-TB3, or 1734-TB3S Wiring Base Assembly
Analog
Voltage
Output
Module
Status
Network
Status
NODE:
0
1
24V DC
SIO
IO
LINK
Module
Status
Network
Status
1734-4IOL
0
0
1
1
2
2
3
3
NODE:
1
10
9
8
7
2
4
5
6
3
The 1734-TB, 1734-TBS, 1734-TB3, or
1734-TB3S wiring base assembly
consists of a 1734-MB mounting base
and a 1734-RTB or 1734-RTBS removable
terminal block.
46012
