Allen-Bradley 1734-4IOL User Manual

12 POINT I/O 4 Channel IO-Link Master Module
Publication 1734-IN043A-EN-E - September 2015

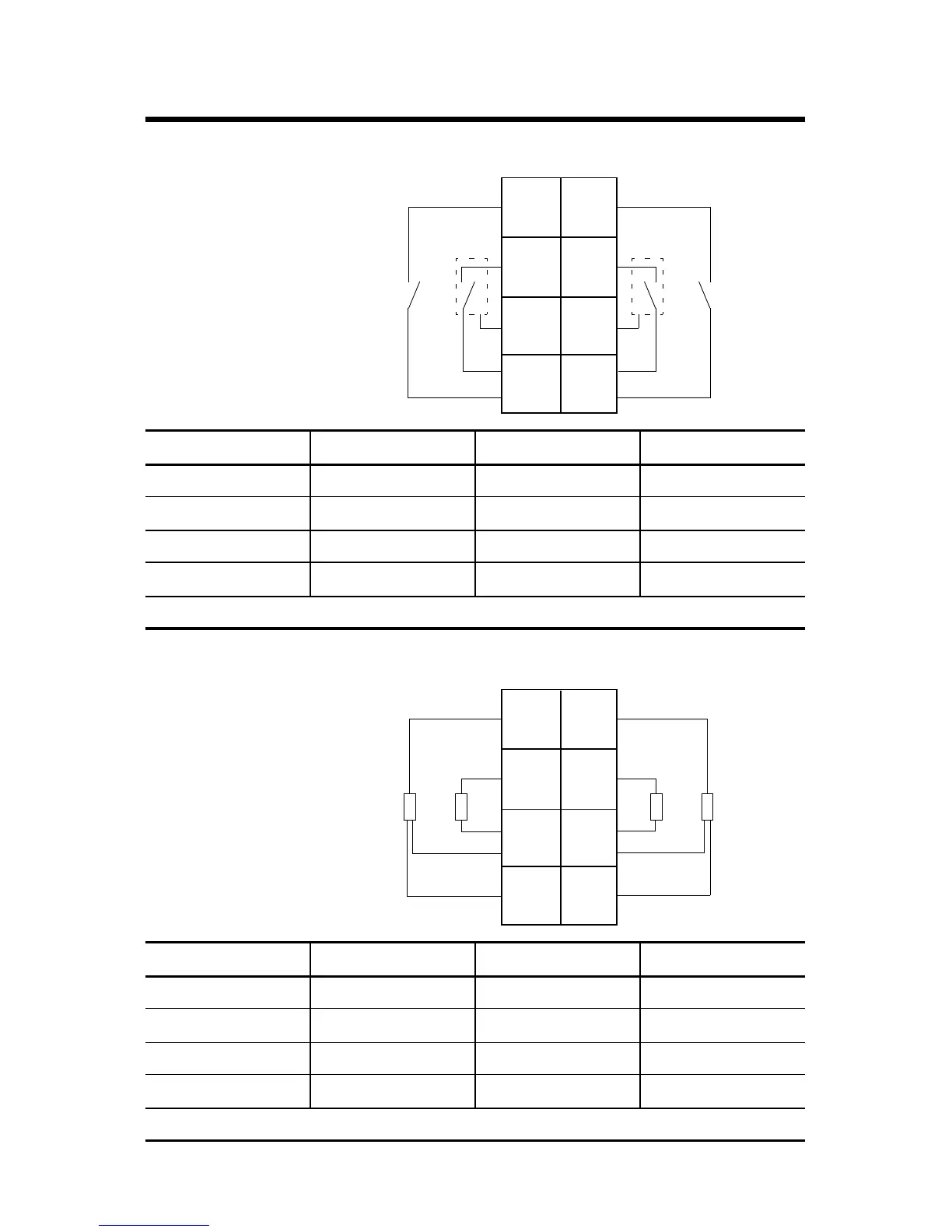

POINT I/O 4 Channel IO-Link Master Module Wiring - Standard Digital Input Mode
POINT I/O 4 Channel IO-Link Master Module Wiring - Standard Digital Output Mode
Channel Input Common Voltage
Channel 0 0 4 6
Channel 1 1
57
Channel 2 2 4 6
Channel 3 3
57
Connect common on 3-wire inputs. Power is supplied through the internal power bus.
Channel Output Common Voltage
Channel 0 0 4 6
Channel 1 1
57
Channel 2 2 4 6
Channel 3 3
57
Connect voltage on 3-wire outputs. Power is supplied through the internal power bus.
In = Input channel
C = Common
V = Voltage
In 0
C
V
C
V
In 1
In 2 In 3
01
23
45
67
2-wire 3-wire 3-wire 2-wire
Out = Output channel
C = Common
V = Voltage
Out 0
C
V
C
V
Out 1
Out 2 Out 3
01
23
45
67
2-wire3-wire 3-wire2-wire
