18 POINT I/O 2 Current and 2 Voltage Input Analog Modules
Publication 1734-IN027D-EN-E - December 2018
Interpret Status Indicators

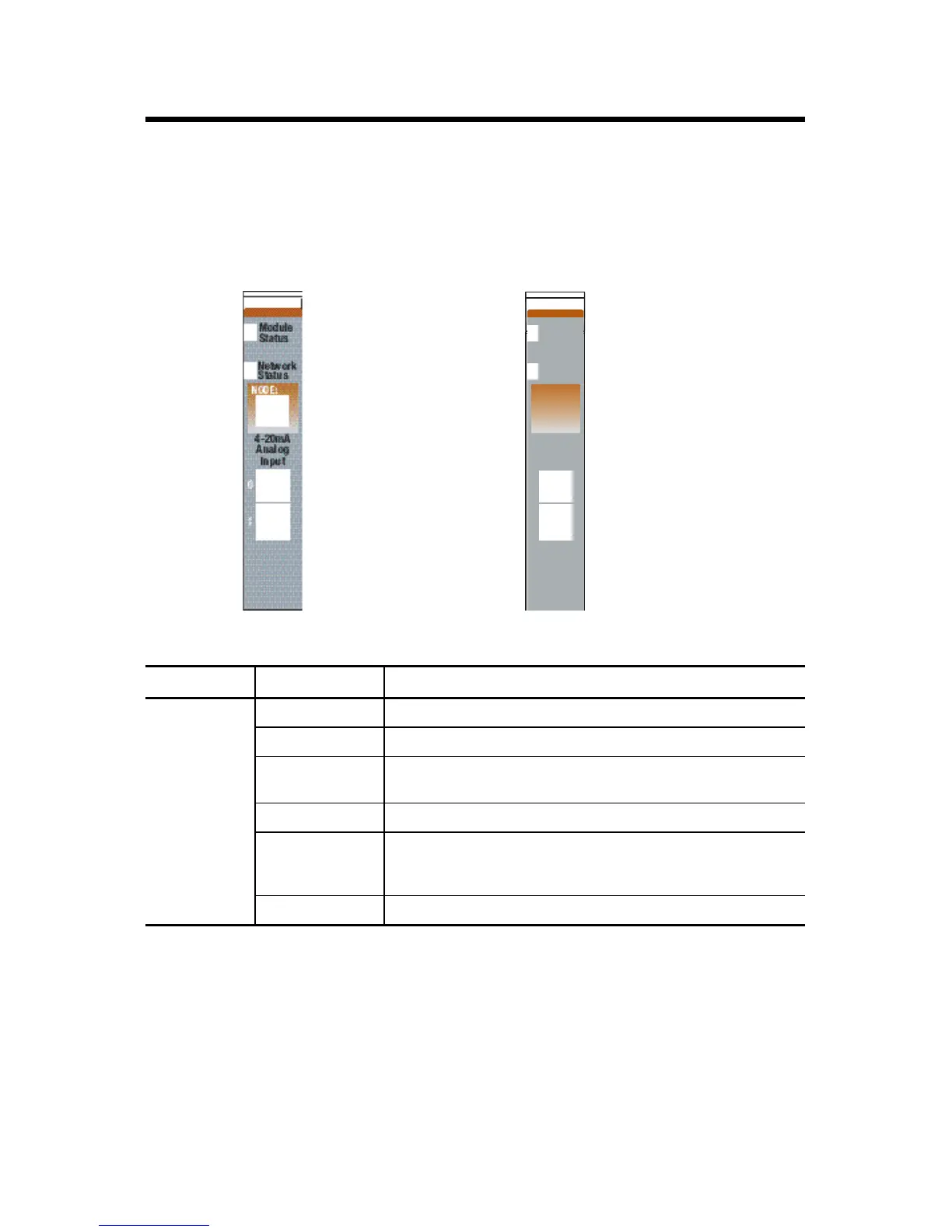

Refer to the following diagram and table for information on how to interpret the
status indicators.
Indicator Status for Modules
Status Description
Module status Off No power applied to device.
Green Device operating normally.
Flashing green Device needs commissioning due to missing, incomplete, or
incorrect configuration.
Flashing red Recoverable fault.
Red Unrecoverable fault occurred. Self-test failure present (checksum
failure, or ramtest failure at cycle power). Firmware fatal error
present.
Flashing red/green Device is in self-test mode.
Module status
Network status
Status of input 0
Status of input 1
41974
Analog
Voltage
Input
Module
Status
Network
Status
NODE:
0
1
1734-IE2C,
1734-IE2CK
1734-IE2V,
1734-IE2VK
Module status
Network status
Status of input 0
Status of input 1
