Chapter 7 Configure ControlLogix Digital I/O Modules
3. On the Select Major Revision dialog box, click OK to accept the default
major revision.
4. On the New Module dialog box, complete the fields and click OK.
• For information about choosing an electronic keying method, see
page 40
.
• For information about choosing a communication format or
connection type, see page 134
.

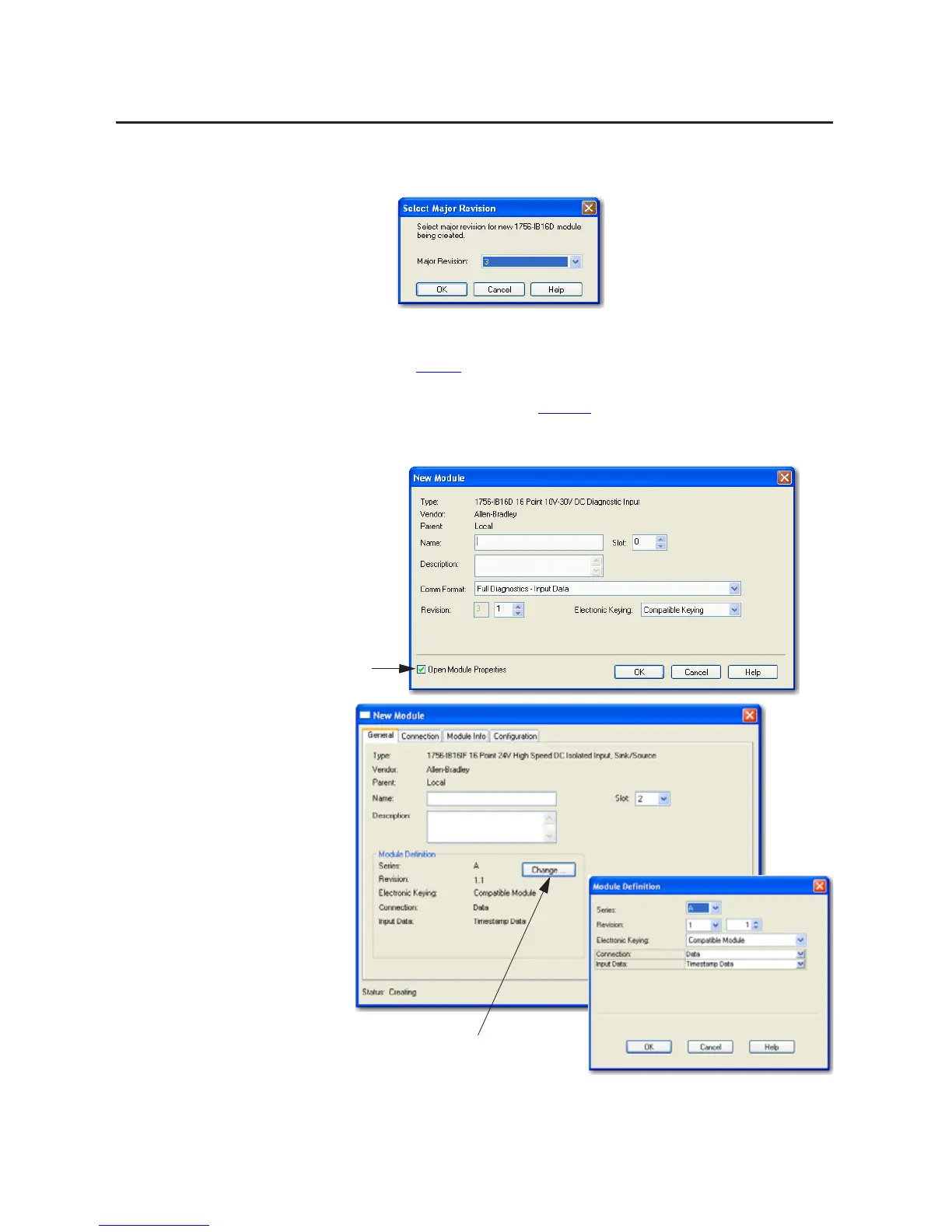

The fields on the New Module dialog box vary depending on the catalog number of your I/O module.
Click Change to open the Module Definition dialog box
and choose additional properties, such as an electronic
keying method and connection format.
To edit the module’s configuration, make sure the
Open Module Properties checkbox is checked.
To Next Page
