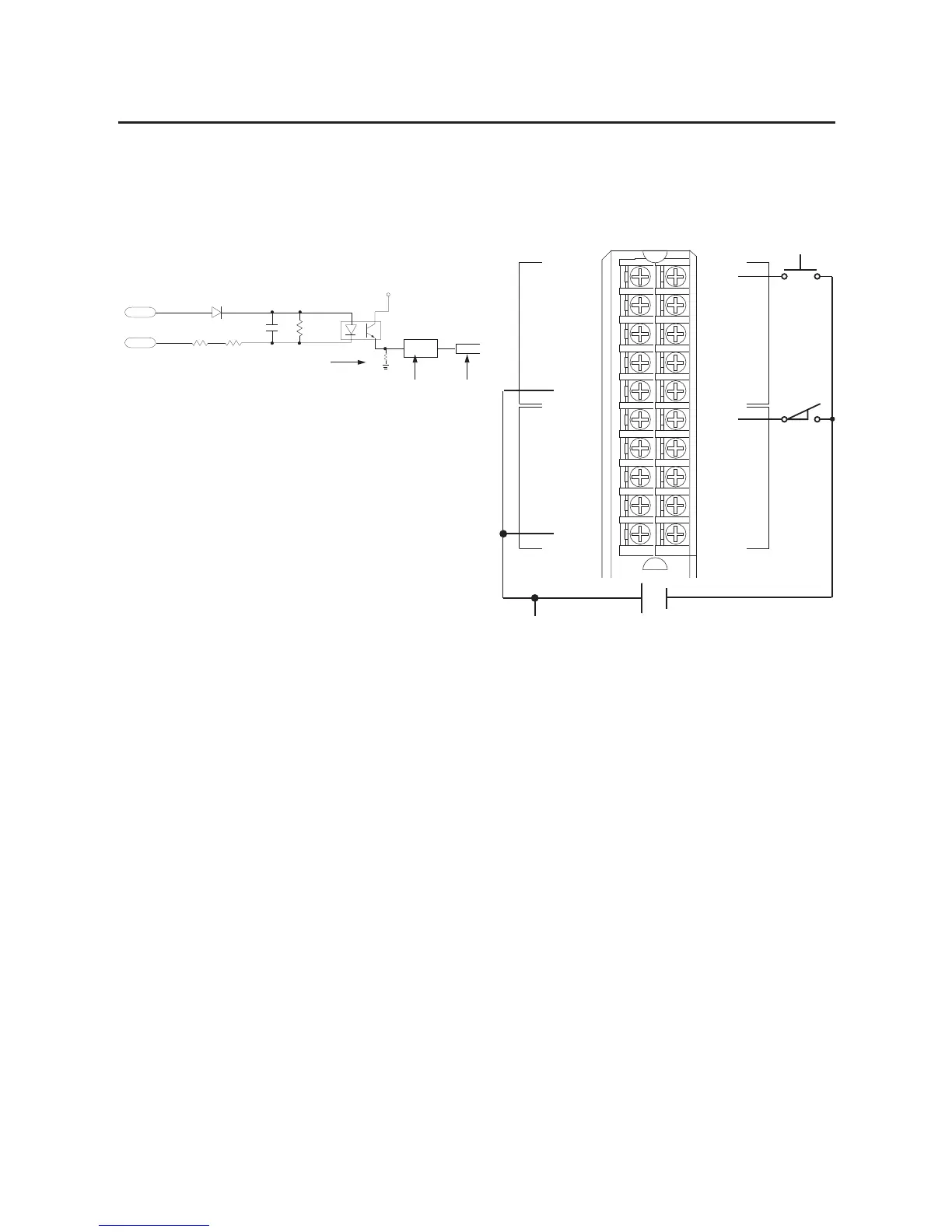

Wiring Diagrams Chapter 8
1756-IV16
ControlLogix DC (10...30V) sourcing input module
1756-IV16
12
34
5
6
7
8
910
11
12
1314
1516
1718
19
20
–+
Daisy Chain to Other RTBs
Group 0Group 0
Group 1Group 1
DC COM
IN-0
IN-2
IN-4
IN-6
DC-0 +
IN-8
IN-10
IN-12
IN-14
DC-1 +
IN-1
IN-3
IN-5
IN-7
DC-0 +
IN-9
IN-11
IN-13
IN-15
DC-1 +
ControlLogix
Backplane
Interface
Simplified Schematic
Display
GND
IN-0
DC-0+
+5V
