240 Rockwell Automation Publication 1756-UM058G-EN-P - November 2012
Appendix G 1492 IFMs for Digital I/O Modules

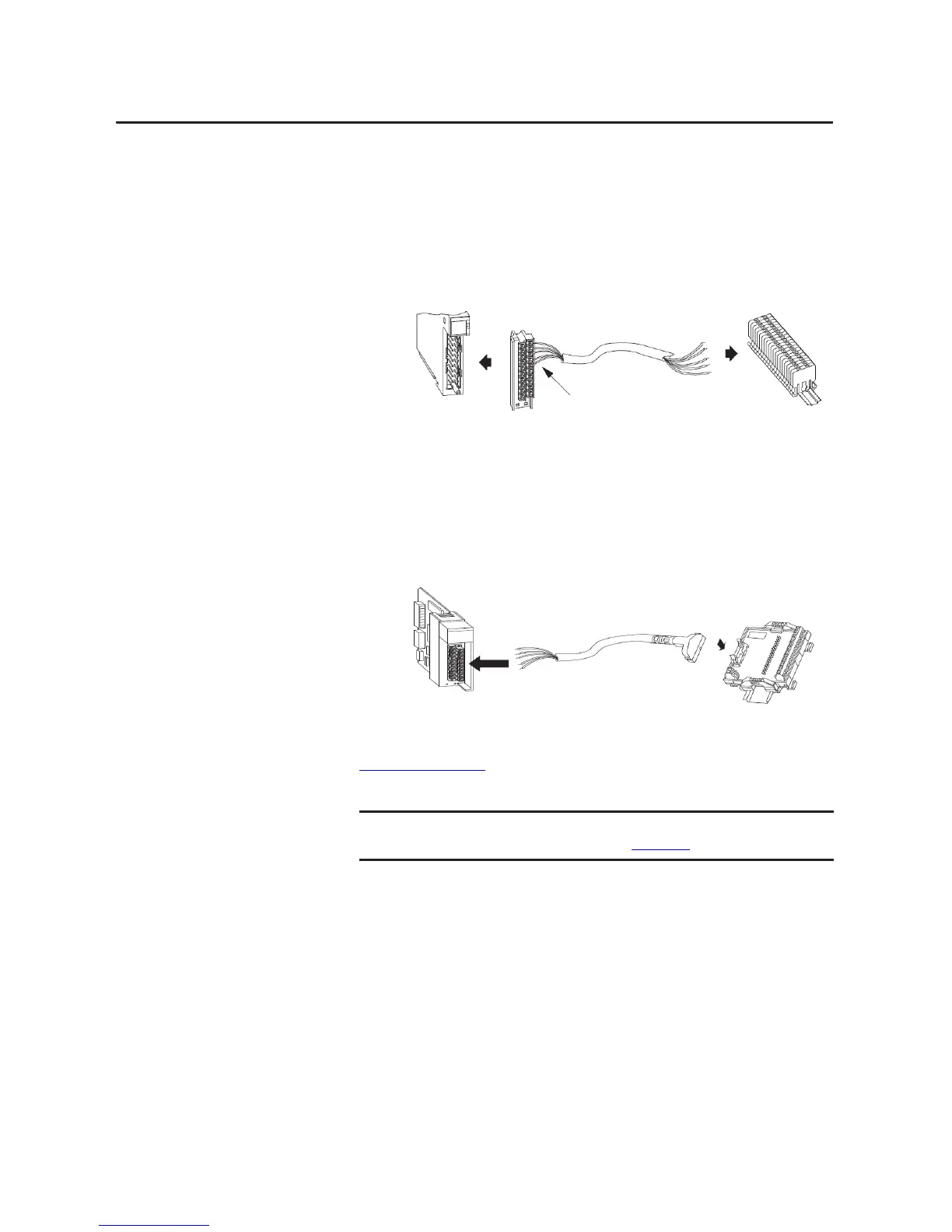

Additional prewired cable combinations include the following:
• Digital I/O module-ready cables with free connectors wire into
standard terminal blocks or other type of connectors. The other end of the
cable assembly is an RTB that plugs into the front of the I/O module.
Most of the I/O module-ready cables use 0.823 mm
2
(18 AWG)
conductors for higher current applications or longer cable runs.
• IFM-ready cables have a cable connection to attach to the IFM prewired
to one end. The other end has free connectors to wire to I/O modules or
other components.
The IFM-ready cables use 0.326 mm
2
(22 AWG) wire.
Table 65 on page 241
lists the IFMs and prewired cables that can be used with
ControlLogix digital I/O modules.
For the latest list, see the Digital/Analog Programmable Controller Wiring
Systems Technical Data, publication 1492-TD008
.
I/O Module Prewired Cable with Free Connectors Terminal Block
Components
IFM-ready Cable
IFM
