Chapter 1 Prepare the CompactLogix 5370 L3 Controller Hardware

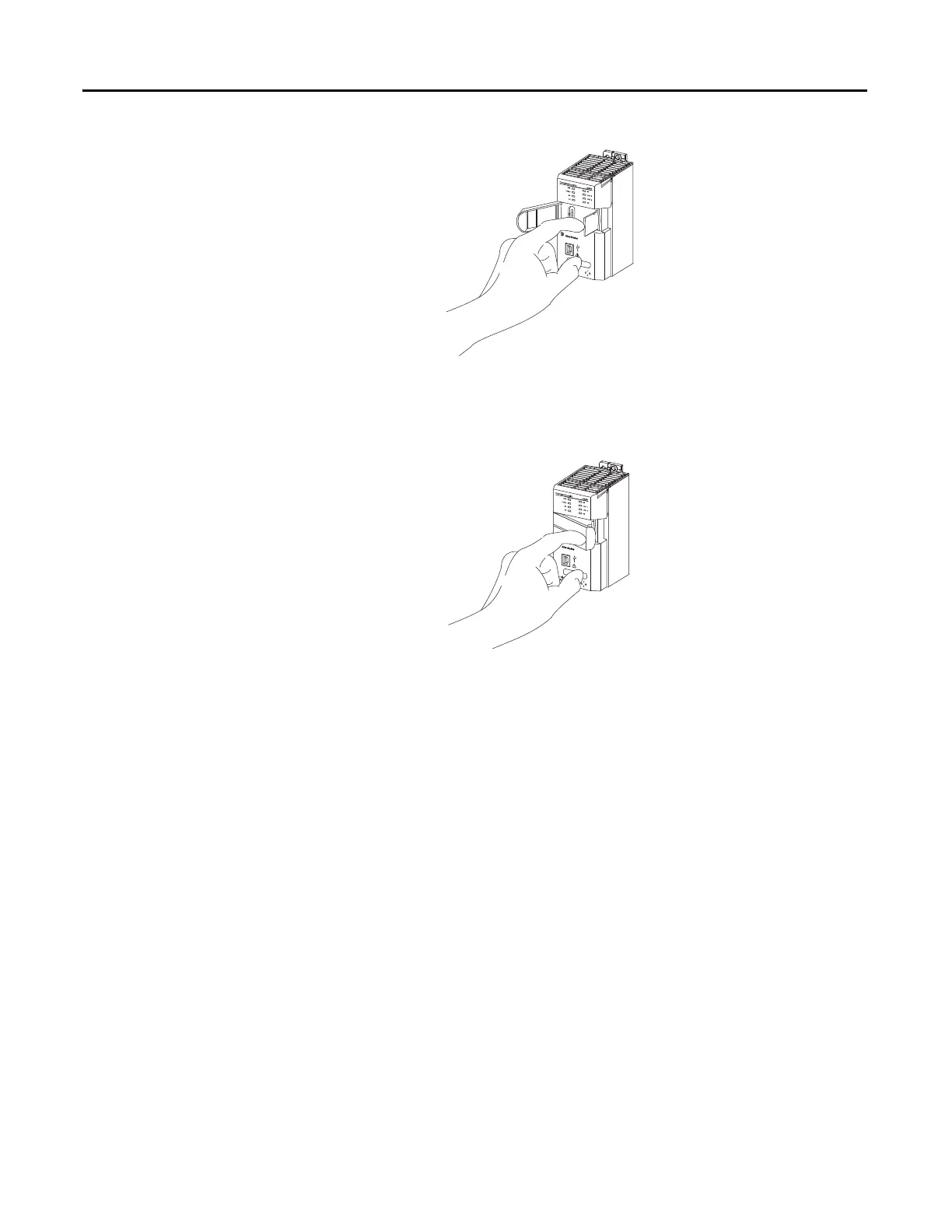

3. Insert the SD card into the SD
card slot.
You can install the SD card in one
orientation only. The beveled
corner should be at the top. An
orientation logo is printed on the
card.
If you feel resistance when
inserting the SD card, pull it out and change the orientation.
4. Gently press the card until it clicks
into place.
5. Close the SD card door.
