Rockwell Automation Publication IASIMP-QS023B-EN-P - December 2012 73
Create a Logix Designer Project Chapter 5

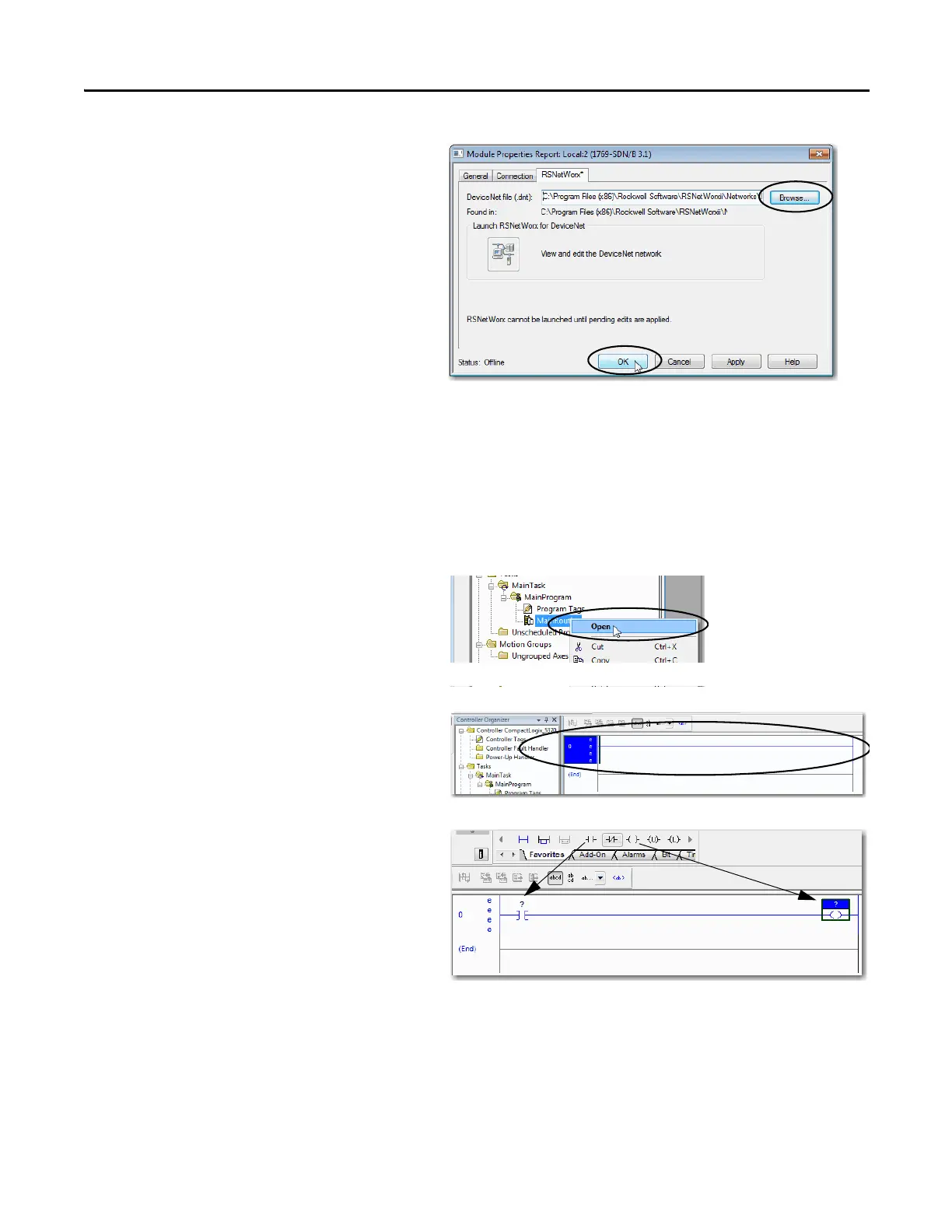

7. On the RSNetWorx tab, click
Browse to find the configuration
(.dnt) file recorded.
Use the configuration file name
you saved. This quick start uses
New DeviceNet.dnt.
8. Click OK.
The module is added to the I/O
Configuration.
Add Ladder Logic to Test the Local 1769-OB16 Module
1. Expand the Tasks folders.
2. Right-click MainRoutine and
choose Open.
A blank MainRoutine opens.
3. From the Element Toolbar, drag
and drop an Examine On and an
Output Energize element onto the
rung.
