72 Rockwell Automation Publication IASIMP-QS023B-EN-P - December 2012
Chapter 5 Create a Logix Designer Project

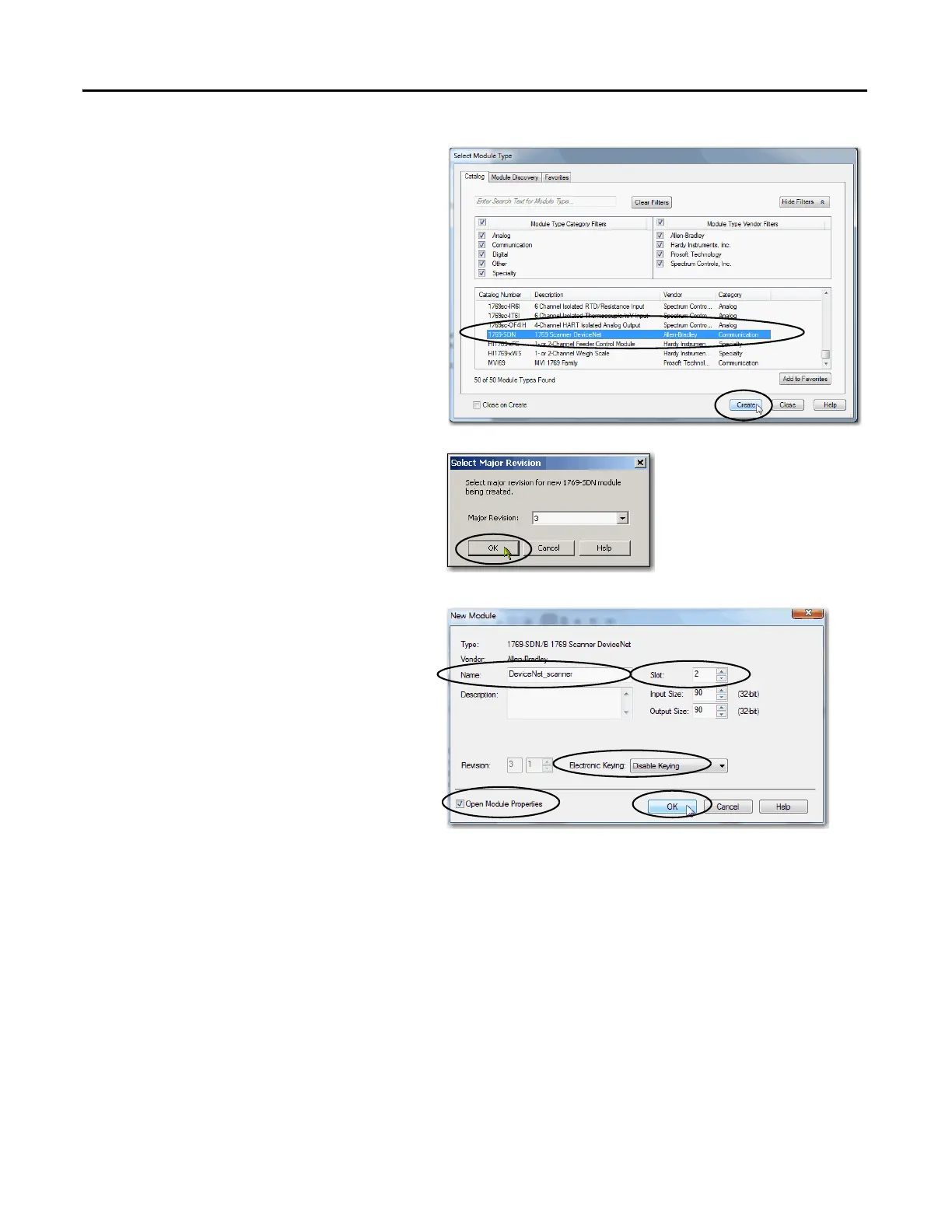

3. Select the 1769-SDN scanner
module and click Create.
The Select Major Revision dialog
box appears.
4. Select the Major Revision for your
module and click OK.
5. When the New Module dialog box
appears, configure the following
parameters:
• Name
• Slot
• Electronic Keying
6. Check the Open Module
Properties checkbox and click OK.
Additional tabs with configurable parameters appear.
