Allen-Bradley 1784-KT/B User Manual

Communication Interface Module
Cat. No. 1784KT/B
Installation Data
8
Table C
Recommended
interrupt settings
Equipment: Preferred Interrupt:
1784T35 IRQ5
1784T50 IRQ5
T53 Industrial
Programming Terminal
no interrupt
T60 Industrial
Workstations
T70 Industrial
Workstations

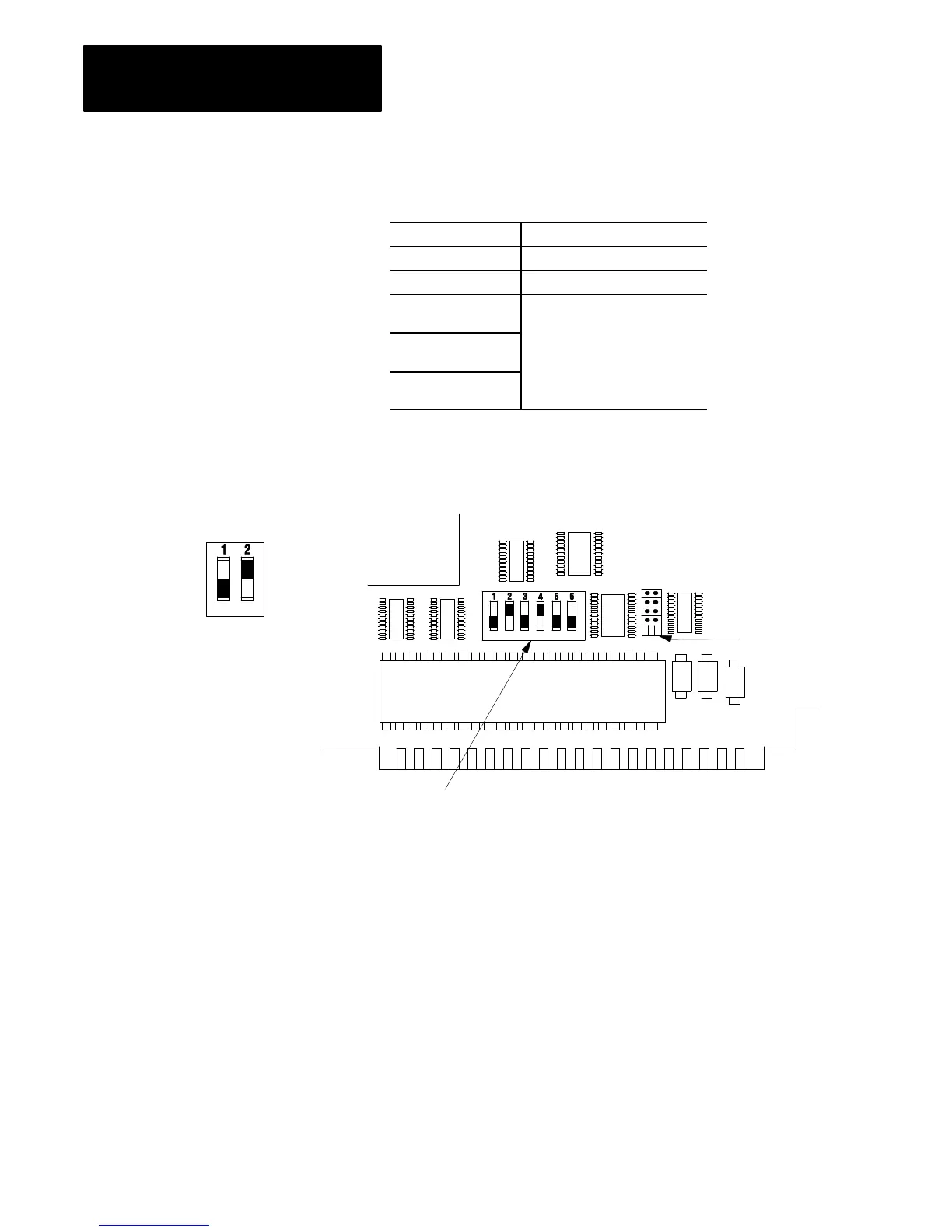

8. Set the memory location address, by pushing the switches in at either
the top or bottom, to reflect the selected address of the memory
location.
Interrupt Jumper
(shown in no interrupt"
position)
Address Switch
(shown at D400:0000 setting)
Up = 0
switch pressed
in at top
Down = 1
switch pressed
in at bottom
